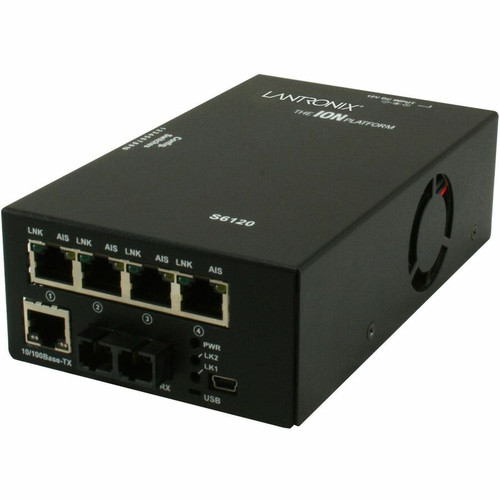

Transition Networks S6120-1013-EU Fast Ethernet Media Converter - 1x RJ-45 to 1x SC Multi-mode 1300 nm Fiber - 2 km Distance
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This media converter handles conversion between twisted pair copper and optical fiber media. It features one RJ-45 port for copper connectivity and one SC port for multi-mode fiber, with support for T1/E1/J1 and 10/100Base-TX network technologies. The maximum supported distance is 2 kilometers over fiber, significantly extending network reach beyond typical copper limitations.
The converter operates with a low power consumption of 6 watts and includes a dedicated power supply. Its compact form factor allows for flexible placement, and the wall-mount capability helps keep installations tidy. The unit is designed with five total ports, though the specific breakdown emphasizes the primary conversion pair.
Key Product Advantages
This media converter delivers practical benefits for network expansion and media conversion projects. Its ability to extend Fast Ethernet signals up to 2 kilometers over fiber makes it ideal for connecting buildings, crossing industrial floors, or linking remote network segments without signal degradation.
Distance Extension
Overcomes the 100-meter limit of standard copper Ethernet by using fiber optic cabling to reach up to 2 kilometers, maintaining signal integrity over longer runs.
- 2 km maximum distance
- Multi-mode fiber support
- 1300 nm wavelength
Deployment Flexibility
The wall-mountable and standalone design allows installation in telecom closets, equipment racks, or directly at the point of need without requiring a dedicated rack shelf.
- Wall mountable
- Standalone operation
- Compact footprint
Compliance Ready
Meets TAA compliance requirements and adheres to major environmental standards, making it suitable for government, education, and regulated commercial deployments.
- TAA compliant
- REACH/RoHS/WEEE
- Lifetime warranty
Deployment / Use Cases
This converter is typically deployed where network segments need to transition from copper to fiber media. Common scenarios include extending an existing copper network across a campus, connecting two buildings with pre-existing fiber infrastructure, or integrating fiber backbone links into copper-based edge networks.
It is also effective in service provider environments for T1/E1/J1 link termination or conversion. The wall-mount option makes it suitable for space-constrained installations like wiring closets, while the standalone operation allows for temporary or test bench setups.
Campus Network Extension
Connect separate buildings over existing multi-mode fiber runs while maintaining Fast Ethernet speeds, ideal for schools, hospitals, or corporate campuses.
Service Provider Access
Terminate T1/E1/J1 service links and convert them to standard Ethernet for customer premises equipment, supporting legacy and modern network interfaces.
Physical Profile
The converter has a compact physical footprint measuring 1.80 inches in height, 3.70 inches in width, and 6.50 inches in depth. It weighs approximately 2 pounds, making it easy to handle and mount. The design includes keyholes or mounting points for secure wall attachment, and the standalone form allows it to sit on a shelf or desk when wall mounting isn't required.
- Width
- 3.70" (93.98 mm)
- Depth
- 6.50" (165.10 mm)
- Height
- 1.80" (45.72 mm)
- Weight
- 2 lb (907.18 g)
- Length
- 1300 nm
What's in the Box
The package includes the media converter unit and a compatible power supply configured for European electrical standards.
Highlights
- Converts RJ-45 copper to SC multi-mode fiber for extended network reach
- Supports Fast Ethernet speeds up to 100 Mbit/s with T1/E1/J1 compatibility
- Maximum distance of 2 kilometers over 1300 nm wavelength fiber
- Wall-mountable and standalone form factor for flexible installation
- Low power consumption at 6 watts with included European power supply
- TAA compliant for government and regulated procurement
- Meets REACH, RoHS, and WEEE environmental standards
- Backed by a lifetime limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lantronix, Inc |
| Manufacturer Part Number | S6120-1013-EU |
| Brand Name | Transition Networks |
| Product Line | ION |
| Product Series | S6120 |
| Product Model | S6120-1013 |
| Product Name | S6120-1013 Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 5 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 1300 nm |
| Maximum Data Transfer Rate | 100 Mbit/s |
| Maximum Distance Supported | 2 km (1.24 Mile) |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Network Technology | T1/E1/J1,10/100Base-TX |
| Power Description | |
| Power Source | Power Supply |
| Power Consumption | 6 W |
| Physical Characteristics | |
| Form Factor | Wall Mountable,Standalone |
| Height | 1.80" (45.72 mm) |
| Width | 3.70" (93.98 mm) |
| Depth | 6.50" (165.10 mm) |
| Weight (Approximate) | 2 lb (907.18 g) |
| Miscellaneous | |
| Package Contents | S6120-1013 Transceiver/Media Converter Power Supply - Europe |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What does this media converter actually convert?
This converter transforms network signals between a standard RJ-45 copper Ethernet port and an SC multi-mode fiber optic port. It allows Fast Ethernet traffic to travel over fiber cabling, extending the network beyond the typical 100-meter limit of copper.
What is the maximum distance this converter supports over fiber?
The converter supports a maximum distance of 2 kilometers (approximately 1.24 miles) when using multi-mode fiber optic cable. This extended reach is ideal for connecting buildings or network segments that are far apart without signal loss.
What type of fiber and connectors does this unit use?
It uses SC connectors for the fiber port and supports multi-mode fiber optic cable with a 1300 nm wavelength. The RJ-45 port is for standard twisted pair copper Ethernet cables, making it compatible with common network infrastructure.
Can this converter be mounted on a wall?
Yes, the converter is designed for wall mounting as well as standalone use. Its compact size and included mounting features allow for flexible installation in wiring closets, equipment rooms, or other space-constrained locations.
Is this product compliant with government procurement regulations?
Yes, the converter is TAA compliant, meaning it meets the Trade Agreements Act requirements for U.S. government purchasing. It also adheres to environmental standards like REACH, RoHS, and WEEE.
What is included in the warranty for this media converter?
Transition Networks provides a lifetime limited warranty for this product. This warranty covers defects in materials and workmanship for the life of the device, offering long-term assurance for network infrastructure investments.
