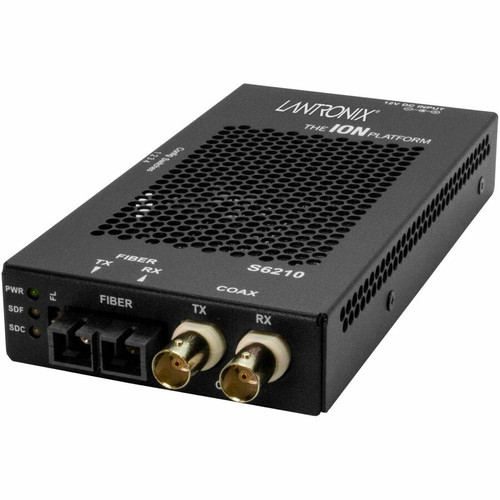

Transition Networks S6210-3014-EU Transceiver/Media Converter - 1 SC Port - Single-mode 1310 nm - 44. 70 Mbit/s - 20 km
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Technically, the S6210-3014-EU operates as a media converter that handles both optical fiber and coaxial cable inputs, converting signals to maintain data integrity over extended distances. It uses single-mode fiber technology with a 1310 nm wavelength, which is optimal for long-range transmissions with minimal attenuation. The device supports a data rate of 44.70 Mbit/s, suitable for legacy or specialized network segments where higher-speed protocols are not required.
Connectivity is managed through three total ports, including one dedicated SC port for fiber optic connections. This configuration allows for flexible integration into network setups that mix media types. Power efficiency is a key aspect, with a consumption of only 2.40 W, reducing operational costs and heat output in dense installations.
Key Product Advantages
This transceiver/media converter offers distinct advantages for network deployments requiring reliable long-distance connectivity. Its ability to convert between optical fiber and coaxial media eliminates the need for complete infrastructure overhauls, providing a cost-effective upgrade path. The extended 20 km range ensures that remote locations or dispersed network nodes can be integrated without compromising performance.
Versatile Mounting
Supports wall, DIN rail, rack, shelf, or standalone mounting, allowing installation in diverse environments from server rooms to factory floors.
- Wall Mountable
- DIN Rail Mountable
- Rack-mountable
- Standalone
- Shelf Mount
Environmental Compliance
Meets REACH, RoHS, and WEEE directives, ensuring environmentally responsible manufacturing and disposal practices.
- REACH Compliant
- RoHS Compliant
- WEEE Compliant
Deployment / Use Cases
The S6210-3014-EU is ideal for scenarios where network extension over fiber is necessary but existing coaxial or mixed-media segments are present. Common use cases include connecting remote buildings in campus networks, linking industrial control systems across manufacturing plants, or integrating legacy equipment into modern fiber backbones. Its compatibility with single-mode fiber makes it suitable for long-haul applications where signal loss must be minimized.
In telecommunications, this converter can be deployed to extend service to rural or hard-to-reach areas without deploying new copper infrastructure. For enterprise networks, it facilitates the integration of older coaxial-based security cameras or sensors into IP-based systems, preserving existing investments while upgrading overall network capacity. The multiple form factors allow for discreet installation in tight spaces or high-density racks, adapting to both centralized and distributed network architectures.
Physical Profile
The converter has a compact footprint with dimensions of 1" (25.40 mm) in height, 3.50" (88.90 mm) in width, and 6.50" (165.10 mm) in depth, weighing approximately 2 lb (907.18 g). This slim profile facilitates installation in confined areas, such as network cabinets or industrial control panels, without occupying excessive space. The design supports various mounting options, including wall, DIN rail, rack, shelf, or standalone placement, offering flexibility for different environmental requirements.
- Width
- 3.50" (88.90 mm)
- Depth
- 6.50" (165.10 mm)
- Height
- 1" (25.40 mm)
- Weight
- 2 lb (907.18 g)
- Length
- 1310 nm
What's in the Box
The package includes all necessary components for immediate deployment, ensuring a complete out-of-the-box solution.
Highlights
- Converts between optical fiber and coaxial media for extended network reach
- Supports single-mode fiber at 1310 nm wavelength for long-distance transmission
- Maximum data transfer rate of 44.70 Mbit/s over up to 20 km
- Features one SC port among three total ports for flexible connectivity
- Low power consumption of 2.40 W for energy-efficient operation
- Multiple mounting options: wall, DIN rail, rack, shelf, or standalone
- Includes European power supply for immediate use in compatible regions
- Environmentally compliant with REACH, RoHS, and WEEE directives
- TAA compliant for use in government and regulated procurement
- Backed by a lifetime limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lantronix, Inc |
| Manufacturer Part Number | S6210-3014-EU |
| Brand Name | Transition Networks |
| Product Line | ION |
| Product Series | S6210 |
| Product Model | S6210-3014 |
| Product Name | S6210-3014 Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 3 |
| Number of SC Ports | 1 |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Coaxial |
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 1310 nm |
| Maximum Data Transfer Rate | 44.70 Mbit/s |
| Maximum Distance Supported | 20 km (12.43 Mile) |
| Power Description | |
| Power Source | Power Supply |
| Power Consumption | 2.40 W |
| Physical Characteristics | |
| Form Factor | Wall Mountable,DIN Rail Mountable,Rack-mountable,Standalone,Shelf Mount |
| Height | 1" (25.40 mm) |
| Width | 3.50" (88.90 mm) |
| Depth | 6.50" (165.10 mm) |
| Weight (Approximate) | 2 lb (907.18 g) |
| Miscellaneous | |
| Package Contents | S6210-3014 Transceiver/Media Converter Power Supply - Europe |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What types of media does this converter support?
The S6210-3014-EU supports both optical fiber and coaxial cable media. It is designed to convert signals between these media types, allowing integration of fiber optic segments with existing coaxial infrastructure. This flexibility helps extend network distances without requiring a complete cabling overhaul.
What is the maximum distance this converter can achieve?
This converter supports a maximum distance of 20 km (12.43 miles) when using single-mode fiber. This extended range makes it suitable for connecting remote locations, such as between buildings in a campus or across industrial sites, where longer distances are necessary to maintain network connectivity.
What type of fiber connector does it use?
It uses an SC connector for fiber optic connections. The SC port is a common and reliable connector type in networking, providing secure and stable connections for single-mode fiber installations. This connector supports the 1310 nm wavelength used for optimal long-distance performance.
How is this converter powered?
The converter is powered by an included European power supply, which operates on standard AC power sources. It has a low power consumption of 2.40 W, making it energy-efficient and suitable for deployments where power usage is a concern, such as in dense rack setups or remote installations.
What mounting options are available?
It offers versatile mounting options including wall mounting, DIN rail mounting, rack-mounting, shelf mounting, and standalone placement. This flexibility allows installation in various environments, from data center racks to industrial control panels, adapting to space constraints and organizational needs.
Is this product environmentally compliant?
Yes, it is environmentally compliant with REACH, RoHS, and WEEE directives. These standards ensure that the product is manufactured without hazardous substances, supports recycling and disposal protocols, and meets regulatory requirements for environmental responsibility in many regions.
