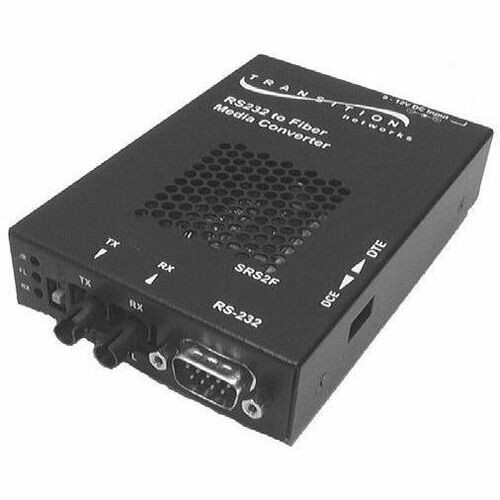

Transition Networks SRS2F3114-100-EU Transceiver/Media Converter - 1 x SC Port - Single-mode 1310 nm Fiber - 115 kbit/s - 20 km
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This transceiver/media converter operates on single-mode fiber optic cable, utilizing 1310 nm wavelength for optimal signal transmission. It supports a maximum data transfer rate of 115 kbit/s, providing sufficient bandwidth for industrial control, surveillance, or legacy network applications.
The unit features two ports total with one dedicated SC fiber connector. AC/DC power input ensures compatibility with different power sources, while the 5 W power consumption contributes to energy efficiency.
This section brings together practical product details such as Total Number of Ports, Number of SC Ports, Media Type Supported, Fiber Mode Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This converter delivers reliable fiber optic connectivity with specific advantages for network extension and media conversion needs.
Extended Distance Coverage
Supports connections up to 20 km, enabling network expansion beyond typical copper cable limitations while maintaining signal integrity.
- 20 km maximum distance
- Minimal signal loss
- Single-mode fiber efficiency
Versatile Deployment Options
Multiple mounting configurations allow installation in rack, wall, DIN rail, shelf, or standalone placements to match specific space requirements.
- Five mounting options
- Compact footprint
- Flexible placement
Compliance & Reliability
Meets environmental standards including RoHS, REACH, and WEEE directives, with TAA compliance for government procurement and lifetime warranty coverage.
- TAA compliant
- Lifetime warranty
- Environmental certifications
Deployment / Use Cases
The SRS2F3114-100-EU is engineered for scenarios requiring fiber optic extension or media conversion in controlled environments.
Industrial automation systems benefit from its distance capabilities and rugged mounting options, while legacy network upgrades utilize it to extend fiber segments without replacing entire infrastructures. Surveillance installations use it to connect remote cameras over extended distances with reliable fiber performance.
Industrial Network Extension
Connect control systems across manufacturing floors or between buildings using single-mode fiber for noise immunity and distance.
Legacy System Integration
Bridge older equipment with modern fiber backbones to extend network life while maintaining existing investments.
Physical Profile
Measuring 1.20" (30.48 mm) in height, 3.30" (83.82 mm) in width, and 4.80" (121.92 mm) in depth, this compact converter fits into tight spaces. The approximate weight of 2 lb (907.18 g) facilitates easy handling during installation. Multiple form factor options include standalone placement, rack mounting, wall mounting, DIN rail attachment, and shelf mounting for maximum installation flexibility.
- Width
- 3.30" (83.82 mm)
- Depth
- 4.80" (121.92 mm)
- Height
- 1.20" (30.48 mm)
- Weight
- 2 lb (907.18 g)
- Length
- 1310 nm
What's in the Box
The package includes all necessary components for immediate deployment.
Highlights
- Single-mode fiber support with 1310 nm wavelength for long-distance transmission
- 1 SC port for fiber optic connectivity with total of 2 ports
- Maximum 20 km distance coverage for extended network reach
- 115 kbit/s data transfer rate suitable for industrial and legacy applications
- AC/DC power source with 5 W consumption for energy efficiency
- Versatile mounting: standalone, rack, wall, DIN rail, and shelf options
- Compact dimensions: 1.20" H × 3.30" W × 4.80" D (30.48 × 83.82 × 121.92 mm)
- TAA compliant for government procurement requirements
- Lifetime limited warranty for long-term reliability
- Environmental compliance with RoHS, REACH, and WEEE directives
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lantronix, Inc |
| Manufacturer Part Number | SRS2F3114-100-EU |
| Brand Name | Transition Networks |
| Product Series | SRS2F |
| Product Model | SRS2F3114-100 |
| Product Name | SRS2F3114-100 Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Number of SC Ports | 1 |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 1310 nm |
| Maximum Data Transfer Rate | 115 kbit/s |
| Maximum Distance Supported | 20 km (12.43 Mile) |
| Power Description | |
| Power Source | AC/DC |
| Power Consumption | 5 W |
| Physical Characteristics | |
| Form Factor | Standalone,Rack-mountable,Wall Mountable,DIN Rail Mountable,Shelf Mount |
| Height | 1.20" (30.48 mm) |
| Width | 3.30" (83.82 mm) |
| Depth | 4.80" (121.92 mm) |
| Weight (Approximate) | 2 lb (907.18 g) |
| Miscellaneous | |
| Package Contents | SRS2F3114-100 Transceiver/Media Converter Power Supply - Europe |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What type of fiber does this media converter support?
This converter supports single-mode fiber optic cable operating at 1310 nm wavelength. Single-mode fiber provides efficient long-distance transmission with minimal signal loss, making it suitable for connections up to 20 km.
What is the maximum distance this converter can support?
The maximum supported distance is 20 km (approximately 12.43 miles). This extended reach enables network connections between buildings or across large facilities without signal degradation typical of copper cables.
What connectors does this unit have?
It features one SC port for fiber optic connectivity, with a total of two ports. The SC connector is a common fiber optic interface known for its push-pull latching mechanism and reliable performance in various environments.
How is this converter powered?
It uses an AC/DC power source with 5 W power consumption. This dual power compatibility allows deployment in locations with either AC wall outlets or DC power supplies, providing installation flexibility.
What mounting options are available?
Five mounting configurations are supported: standalone placement, rack mounting, wall mounting, DIN rail attachment, and shelf mounting. This versatility enables installation in data centers, industrial panels, equipment closets, or any location with space constraints.
What certifications does this product have?
It is TAA compliant for government procurement, meets environmental standards including RoHS, REACH, and WEEE directives, and carries a lifetime limited warranty. These certifications ensure regulatory compliance and long-term reliability.
