Product Features
Technical Overview

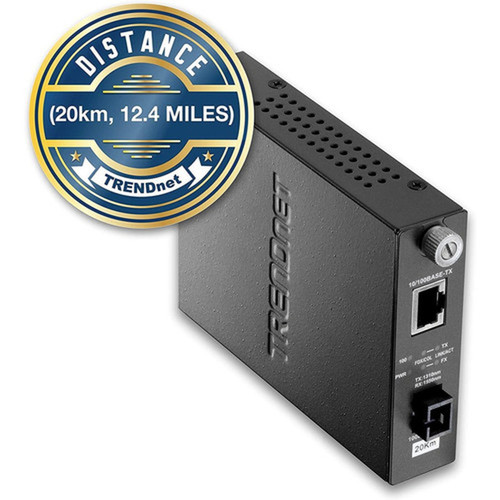

This media converter operates at Fast Ethernet speeds with full-duplex capability on the 10/100Base-TX port, which features auto-negotiation and auto-MDIX for simplified cable connections. The dual-wavelength single-mode fiber interface uses an SC connector to transmit data over distances up to 20 kilometers without signal degradation.

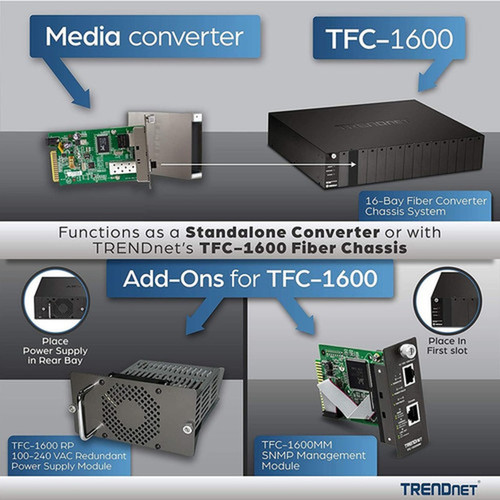

The converter functions as a standalone device or integrates with the TFC-1600 fiber chassis for centralized management in multi-converter installations. Its wall-mountable form factor allows flexible placement in telecom closets, equipment racks, or remote locations.
This section brings together practical product details such as Total Number of Ports, Network (RJ-45), Number of Network (RJ-45) Ports, Media Type Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The TFC-110S20D3 delivers reliable fiber conversion with extended reach and compliance features essential for professional network deployments.
Extended Fiber Reach
Supports connections up to 20 kilometers using dual-wavelength single-mode fiber, ideal for long-distance network segments between buildings or across campuses.
- SC connector interface
- Single-mode fiber compatibility
Simplified Deployment
Auto-negotiation and auto-MDIX on the RJ-45 port eliminate manual configuration, while the wall-mountable design provides installation flexibility.
- Standalone or chassis-mounted operation
- No software configuration required
Compliance & Reliability
TAA compliance meets U.S. and Canadian government procurement requirements, backed by a lifetime manufacturer warranty for long-term reliability.
- NDAA/TAA compliant
- Lifetime warranty support
Deployment / Use Cases
This media converter is engineered for environments where extending copper networks over fiber infrastructure is necessary. It seamlessly integrates existing 10/100Base-TX equipment with fiber backbones, preserving network investments while enabling distance expansion.
Typical applications include connecting remote offices across campus networks, linking industrial control systems in manufacturing facilities, and extending surveillance camera networks in large facilities. The converter also serves in educational institutions, healthcare campuses, and municipal networks where fiber runs between buildings exceed copper limitations.
Campus Network Extension
Connect administrative buildings, dormitories, or classroom facilities across large campuses using existing fiber infrastructure while maintaining Fast Ethernet speeds.
Industrial Environment Integration
Bridge copper-based industrial equipment with fiber optic backbones in manufacturing plants or utility facilities where electromagnetic interference resistance is critical.
Physical Profile
The converter features a compact wall-mountable enclosure measuring 4 inches in height, 10 inches in width, and 12 inches in depth. With an approximate weight of 4.07 pounds, the unit installs easily in standard network cabinets, wall surfaces, or equipment racks using included mounting hardware. The durable construction ensures reliable operation in various environmental conditions typical of network infrastructure deployments.
- Width
- 10" (254 mm)
- Depth
- 12" (304.80 mm)
- Height
- 4" (101.60 mm)
- Weight
- 4.07 lb (1846.12 g)
What's in the Box
The package includes all components needed for immediate deployment and operation.
Highlights
- Converts 10/100Base-TX copper to 100Base-FX dual-wavelength single-mode fiber
- Extends network connections up to 20 kilometers (12.43 miles)
- SC-type fiber port with single-mode compatibility
- RJ-45 port features auto-negotiation, auto-MDIX, and full-duplex mode
- Wall-mountable form factor for flexible installation
- Functions standalone or with TFC-1600 fiber chassis
- TAA compliant for U.S. and Canadian government procurement
- Lifetime TRENDnet manufacturer warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TFC-110S20D3 |
| Brand Name | TRENDnet |
| Product Model | TFC-110S20D3 |
| Product Name | TFC-110S20D3 100Base-TX to 100Base-FX Dual Wavelength Single Mode Fiber Converter |
| Product Condition | New |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Maximum Distance Supported | 20 km (12.43 Mile) |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 10/100Base-TX,100Base-FX |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Height | 4" (101.60 mm) |
| Width | 10" (254 mm) |
| Depth | 12" (304.80 mm) |
| Weight (Approximate) | 4.07 lb (1846.12 g) |
| Miscellaneous | |
| Package Contents | TFC-110S20D3 Fast Ethernet Media Converter Power Adapter User's Guide |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year Lifetime |
User Manual
FAQ
What network types does this media converter support?
The TFC-110S20D3 converts between 10/100Base-TX Ethernet over twisted pair copper and 100Base-FX over dual-wavelength single-mode fiber. It supports Fast Ethernet speeds with full-duplex operation on both media types, enabling seamless integration of copper and fiber network segments.
What is the maximum distance supported by the fiber connection?
The SC-type dual-wavelength single-mode fiber port supports connections up to 20 kilometers (approximately 12.43 miles). This extended reach makes the converter suitable for campus networks, industrial facilities, and other applications where network segments span long distances beyond copper limitations.
Can this converter be used with multimode fiber?
No, this converter specifically supports single-mode fiber only. The dual-wavelength single-mode fiber interface is optimized for long-distance transmission up to 20 kilometers. For multimode fiber applications, a different media converter model would be required.
What deployment options are available for this media converter?
The converter functions as a standalone device with wall-mountable installation or integrates with the TFC-1600 fiber chassis for centralized management in multi-converter deployments. The compact form factor allows installation in network cabinets, on wall surfaces, or in equipment racks using standard mounting hardware.
What compliance certifications does this product have?
The TFC-110S20D3 is TAA compliant, meeting Trade Agreements Act requirements for U.S. and Canadian government procurement. It is also NDAA compliant, ensuring eligibility for federal government purchases where these regulations apply.
What warranty coverage is provided with this media converter?
TRENDnet provides a lifetime manufacturer warranty for this product, covering defects in materials and workmanship for the duration of ownership. This warranty support ensures long-term reliability and protection for your network infrastructure investment.
