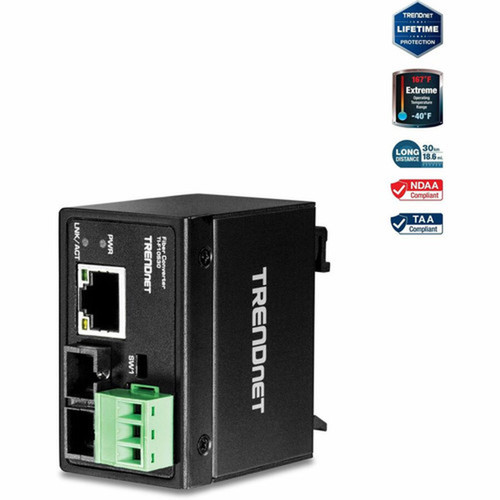

TRENDnet TI-F10S30 Hardened Industrial 100Base-FX Single-Mode SC Fiber Converter - 30 km - IP40 - Rail/Wall Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This media converter operates at Fast Ethernet speeds (100 Mbps), converting 100Base-TX signals over twisted pair to 100Base-FX signals over fiber optic cable. It supports a 1310 nm wavelength and is compatible with 62.5/125 µm and 50/125 µm fiber core/cladding specifications, ensuring interoperability with standard fiber infrastructure.
The converter provides one RJ-45 port for copper Ethernet and one SC port for fiber connectivity, with no management interface for plug-and-play operation. It includes 6kV surge protection on the RJ-45 port to safeguard against electrical transients in industrial settings.
This section brings together practical product details such as Total Number of Ports, Network (RJ-45), DVI, Media Type Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The TI-F10S30 delivers reliable fiber conversion with industrial durability, making it ideal for extending network reach in harsh or remote locations. Its hardened design and comprehensive protection features ensure continuous operation in challenging environments.
Industrial Hardening
IP40-rated housing and a wide -40° to 75°C operating temperature range enable deployment in industrial, outdoor, or uncontrolled climate settings where standard converters may fail.
- IP40 protection against solid objects
- Extended temperature tolerance
- 6kV RJ-45 surge protection
Flexible Power & Mounting
Accepts 12-60V DC input via removable terminal block and includes DIN-rail and wall mount kits for versatile installation in racks, cabinets, or direct wall mounting.
- 12-60V DC wide-range input
- DIN-rail and wall mount included
- Overload current protection
Deployment / Use Cases
This fiber converter is purpose-built for extending Ethernet networks over long distances where copper cabling is impractical or insufficient. It effectively bridges gaps between copper-based network equipment and fiber optic backbones in industrial, commercial, and infrastructure applications.
Common deployment scenarios include connecting remote security cameras over fiber in industrial parks, linking building automation systems across campus environments, and extending network connectivity to outdoor kiosks or signage. The hardened design makes it suitable for manufacturing floors, transportation hubs, utility substations, and other locations with electrical noise, temperature extremes, or physical exposure.
Physical Profile
The converter features a compact industrial chassis measuring 5" wide x 3" high x 10" deep (127 x 76.2 x 254 mm), with integrated mounting options for DIN-rail or direct wall installation. The IP40-rated housing provides basic protection against solid objects while maintaining accessibility to ports and terminal blocks. The design prioritizes functional durability over aesthetic finishes, with clear port labeling and sturdy construction for reliable service in installed positions.
- Width
- 5" (127 mm)
- Depth
- 10" (254 mm)
- Height
- 3" (76.20 mm)
- Weight
- 1.49 lb (673.58 g)
- Length
- 1310 nm
What's in the Box
The package includes all essential components for immediate deployment of the fiber converter in industrial environments.
Highlights
- Converts 100Base-T Ethernet to 100Base-FX fiber optic signals
- Extends network distance up to 30 km (18.64 miles) over fiber
- Hardened IP40-rated housing for industrial environments
- Wide operating temperature range: -40° to 75°C (-40° to 167°F)
- 12-60V DC power input with overload current protection
- 6kV surge protection on RJ-45 port
- Includes DIN-rail and wall mount kits
- TAA compliant for U.S. and Canadian government procurement
Specifications
| Specifications | |
|---|---|
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TI-F10S30 |
| Brand Name | TRENDnet |
| Product Model | TI-F10S30 |
| Product Name | Hardened Industrial 100Base-FX Single-Mode SC Fiber Converter |
| Product Condition | New |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Network (RJ-45) | Yes |
| DVI | No |
| USB | No |
| Management Port | No |
| Number of Network (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Fiber Mode Supported | Single-mode,Multi-mode |
| Fiber Optic Cable Wavelength | 1310 nm |
| Maximum Distance Supported | 30 km (18.64 Mile) |
| Fiber Optic Cable Core/Cladding Specification | 62.5/125 µm,50/125 µm |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 100Base-FX,10/100Base-T |
| Power Description | |
| Power Source | Power Supply |
| Physical Characteristics | |
| Form Factor | Rail-mountable,Wall Mountable |
| Height | 3" (76.20 mm) |
| Width | 5" (127 mm) |
| Depth | 10" (254 mm) |
| Weight (Approximate) | 1.49 lb (673.58 g) |
| Miscellaneous | |
| Package Contents | Hardened Industrial 100Base-FX Single-Mode SC Fiber Converter (30 km, 18.6 mi.) Quick Installation Guide Removable terminal block DIN-rail / wall mount kit |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What does this fiber converter actually convert?
The TI-F10S30 converts 100Base-TX Fast Ethernet signals from copper twisted pair (RJ-45) to 100Base-FX signals for transmission over single-mode or multi-mode fiber optic cable with SC connectors. This allows you to extend Ethernet network segments beyond the 100-meter limitation of copper cabling.
What is the maximum distance supported by this converter?
This converter supports fiber optic transmission distances up to 30 kilometers (approximately 18.64 miles) when using single-mode fiber. The actual achievable distance may vary based on fiber quality, connectors, and environmental conditions, but 30 km represents the manufacturer's specified maximum under standard conditions.
What power supply does this converter require?
The converter requires a 12-60V DC power input connected via the removable terminal block. The power supply is sold separately (model TI-M6024). The wide input voltage range accommodates various industrial power sources, and the converter includes overload current protection for enhanced reliability in fluctuating power conditions.
How is this converter mounted in industrial settings?
The converter includes both DIN-rail and wall mount kits for flexible installation. It can be mounted on standard DIN-rails in control cabinets or directly to walls using the provided hardware. The compact dimensions (5" x 3" x 10") make it suitable for space-constrained industrial enclosures while maintaining accessibility to all ports.
What environmental protection does the IP40 rating provide?
The IP40 rating indicates protection against solid objects larger than 1.0 mm in diameter, making it suitable for industrial environments where dust and small particles may be present. This is complemented by an extended operating temperature range of -40° to 75°C, allowing deployment in uncontrolled climates where standard commercial converters might fail.
Is this converter suitable for government or infrastructure projects?
Yes, the TI-F10S30 is TAA compliant for U.S. and Canadian government procurement and meets NDAA requirements. This makes it appropriate for public sector deployments, critical infrastructure projects, and any application requiring compliance with government sourcing regulations for networking equipment.
