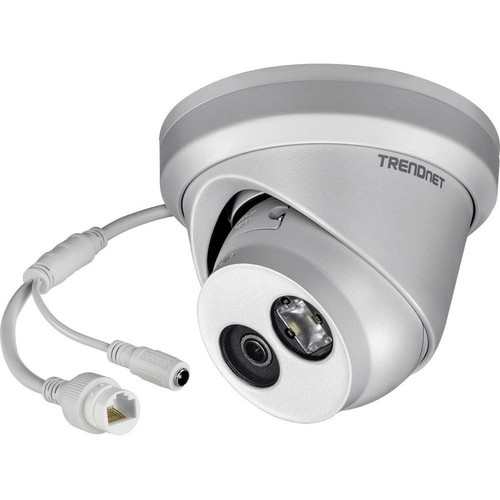

TRENDnet TV-IP323PI Indoor/Outdoor 4MP H. 265 PoE IR Turret Network Camera - 2560 x 1440 - WDR - 98ft Night Vision
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC

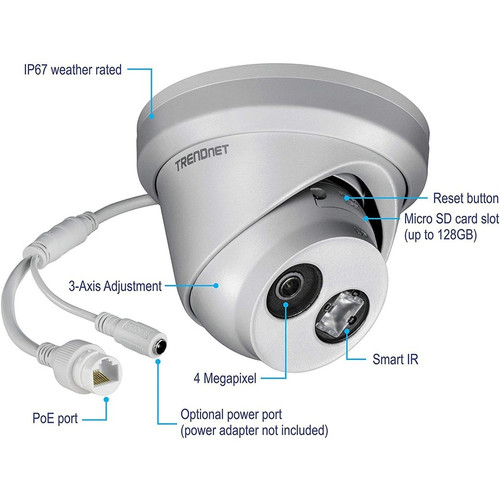

Product Features
Technical Overview
The TV-IP323PI utilizes advanced H.265 and H.264 video compression formats, including H.265+ and H.264+ variants, to optimize bandwidth and storage efficiency without compromising image quality. This makes it ideal for continuous recording setups where network and storage resources are considerations. The camera supports WDR (Wide Dynamic Range) technology, enhancing performance in challenging lighting scenarios by balancing bright and dark areas within the frame.
Network connectivity is provided via a wired RJ-45 Ethernet port, ensuring stable and secure data transmission. Remote management capabilities allow administrators to configure and monitor the camera from a centralized location, facilitating efficient surveillance system maintenance. The camera's HD recording capability ensures all footage meets modern surveillance standards for clarity and detail.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision Distance, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The TRENDnet TV-IP323PI combines high-resolution imaging with robust construction to meet the demands of modern surveillance. Its turret design not only provides a low-profile appearance but also offers durability for indoor and outdoor use, backed by a weather seal included in the package.
Enhanced Low-Light Performance
With infrared night vision extending to 98.43 feet, this camera ensures reliable monitoring around the clock, capturing clear footage even in complete darkness.
- Infrared LEDs for illumination
- 30-meter effective range
- Auto-switching between day/night modes
Efficient Bandwidth Management
Support for H.265+ and H.264+ compression reduces bandwidth usage by up to 50% compared to standard H.264, allowing for more cameras on the same network without sacrificing video quality.
- Reduced storage requirements
- Smoother network performance
- Compatible with modern NVRs
Simplified Installation
PoE support eliminates the need for separate power cabling, reducing installation time and costs. The included mounting hardware and Torx security Allen key facilitate secure mounting on various surfaces.
- Single-cable setup
- Included weather seal
- Tool-included for tamper resistance
Deployment / Use Cases
This camera is versatile enough for a wide range of surveillance applications, from small business security to residential property monitoring. Its indoor/outdoor rating and weather-resistant design make it suitable for entryways, parking lots, retail spaces, and perimeter fencing where environmental exposure is a concern.
For commercial deployments, the TV-IP323PI integrates seamlessly with existing network video recorders (NVRs) and video management software (VMS) that support H.265 and ONVIF standards. Its fixed lens and turret form factor are ideal for covering specific areas like cash registers, hallways, or storage rooms without the need for pan-tilt-zoom functionality. In residential settings, it provides reliable monitoring for front doors, backyards, or driveways, with the discreet turret design blending into architectural elements.
Retail & Commercial Security
Monitor high-traffic areas such as entrances, aisles, and checkout counters with clear 4MP video, aiding in loss prevention and customer behavior analysis.
- WDR for varying indoor lighting
- PoE for ceiling or wall mounts
- Remote access for multi-site management
Residential Property Protection
Secure homes by installing cameras at key points like garages, gates, or patios, leveraging night vision for 24/7 coverage and weather resistance for outdoor durability.
- Discreet turret aesthetics
- Easy integration with home networks
- Long-range IR for large yards
Physical Profile
The TV-IP323PI features a compact turret design with dimensions of 4" (101.60 mm) in height, 6" (152.40 mm) in width, and 8" (203.20 mm) in length, and a diameter of 5.01" (127.30 mm). This form factor allows for flexible mounting on walls or ceilings while maintaining a low visual profile. Weighing approximately 1.49 lb (673.58 g), it is lightweight yet sturdy, constructed from materials that withstand outdoor elements when installed with the included weather seal. The turret style also helps deter vandalism and tampering, with a secure mounting system that uses the provided Torx security Allen key for added protection.
- Width
- 6" (152.40 mm)
- Height
- 4" (101.60 mm)
- Weight
- 1.49 lb (673.58 g)
- Length
- 4 mm (0.16")
What's in the Box
The package includes all necessary components for immediate installation and operation.
Highlights
- 4-megapixel resolution for detailed 2560 x 1440 video surveillance
- H.265+ and H.264+ compression for efficient bandwidth and storage use
- Power over Ethernet (PoE) support simplifies installation with a single cable
- Night vision up to 98.43 feet (30 meters) with infrared LEDs
- Wide Dynamic Range (WDR) enhances video in high-contrast lighting
- Indoor/outdoor rated with weather seal for durable performance
- Fixed 4mm lens provides consistent field of view
- Turret form factor offers discreet and vandal-resistant mounting
- 3-year limited warranty for long-term reliability
- Remote management capability for easy configuration and monitoring
Specifications
| Specifications | |
|---|---|
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TV-IP323PI |
| Brand Name | TRENDnet |
| Product Model | TV-IP323PI |
| Product Name | Indoor/Outdoor 4MP H .265 WDR PoE IR Turret Network Camera |
| Product Condition | New |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | HD |
| Night Vision Distance | 98.43 ft (30 m) |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Effective Camera Resolution | 4 Megapixel |
| Video | |
| Video Formats | H.265+,H.265,H.264+,H.264,MJPEG |
| Maximum Video Resolution | 2560 x 1440 |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 4 mm (0.16") |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Form Factor | Turret |
| Height | 4" (101.60 mm) |
| Width | 6" (152.40 mm) |
| Length | 8" (203.20 mm) |
| Diameter | 5.01" (127.30 mm) |
| Weight (Approximate) | 1.49 lb (673.58 g) |
| Miscellaneous | |
| Indoor/Outdoor | Indoor/Outdoor |
| Package Contents | TV-IP323PI Weather Seal Quick Installation Guide Camera Mounting Hardware Torx Security Allen Key |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the resolution of the TRENDnet TV-IP323PI camera?
The TRENDnet TV-IP323PI delivers 4-megapixel video at a maximum resolution of 2560 x 1440 pixels. This high resolution ensures clear and detailed footage, making it suitable for identifying faces, license plates, or other critical details in surveillance scenarios. It supports full HD recording, providing superior image quality compared to lower-resolution cameras.
Does this camera support night vision, and what is its range?
Yes, this camera features built-in infrared LEDs for night vision, with an effective range of up to 98.43 feet (30 meters). It automatically switches to night mode in low-light conditions, capturing monochrome video to maintain visibility. This makes it ideal for 24/7 monitoring in areas like parking lots, backyards, or perimeter fences where lighting may be limited.
How is the TRENDnet TV-IP323PI powered?
The camera is powered via Power over Ethernet (PoE), which allows both data and power to be delivered over a single Ethernet cable. This simplifies installation by eliminating the need for a separate power outlet near the camera, reducing cabling costs and setup time. It requires a PoE switch or injector that complies with IEEE 802.3af/at standards.
What video compression formats does this camera use?
It supports H.265+, H.265, H.264+, H.264, and MJPEG video formats. The H.265+ and H.264+ variants offer enhanced compression efficiency, reducing bandwidth and storage usage by up to 50% compared to standard formats without sacrificing video quality. This is beneficial for large-scale deployments or continuous recording setups.
Is the TRENDnet TV-IP323PI suitable for outdoor use?
Yes, this camera is rated for indoor/outdoor use and includes a weather seal to protect against environmental elements like rain, dust, and humidity. Its turret form factor and durable construction make it suitable for installation in exposed areas such as building exteriors, gardens, or driveways, ensuring reliable performance in various weather conditions.
What is included in the package with the camera?
The package includes the TV-IP323PI camera, a weather seal for outdoor protection, a quick installation guide, camera mounting hardware, and a Torx security Allen key for secure mounting. These components provide everything needed for immediate setup, whether for wall or ceiling installation, without requiring additional purchases for basic installation.
What connectivity or interface options are available?
Connectivity options include Wired, helping the product integrate into common office or home setups.
