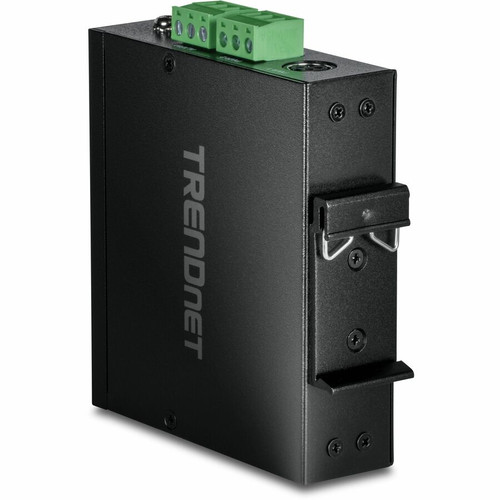

TRENDnet TI-F711SFP Industrial 10G SFP+ Media Converter - 1 x RJ-45 - 1 x SFP+ - 20 Gbit/s - DIN Rail/Wall Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This media converter operates at layer 1 of the OSI model, transparently converting electrical signals from copper to optical signals for fiber, and vice versa. It supports both 10GBase-T over Category 6a/7 twisted pair cables up to 100 meters and 10GBase-X through industry-standard SFP+ transceivers for single-mode or multimode fiber connections.
The device features a single RJ-45 port for copper connectivity and one SFP+ slot for fiber expansion, providing flexible deployment scenarios. Power is supplied via an external adapter with removable terminal blocks for secure wiring, while the compact chassis measures 4.72" x 1.18" x 3.86" (120 x 30 x 98 mm) and weighs just 11.78 oz (334 g) for easy integration into tight spaces.
Key Product Advantages
The TI-F711SFP delivers robust media conversion with industrial-grade durability, ensuring network continuity in challenging environments. Its design prioritizes ease of installation and long-term reliability, backed by a 3-year limited warranty and compliance with key environmental standards.
Industrial Durability
Built for harsh conditions with DIN rail and wall mounting options, terminal block power connections, and a compact metal enclosure that resists vibration and temperature fluctuations.
- DIN Rail Mountable
- Wall Mountable
- Terminal Block Connector
Flexible Media Support
Converts between copper RJ-45 and fiber SFP+ connections, supporting both twisted pair and optical fiber media to extend network reach and overcome distance limitations.
- Twisted Pair (10GBase-T)
- Optical Fiber (10GBase-X)
- SFP+ Slot for Modules
Environmental Compliance
Meets RoHS and WEEE directives, certified by the China Environmental United Certification Center (CEC), and TAA compliant for government procurement.
- RoHS Compliant
- WEEE Compliant
- TAA Compliant
Deployment / Use Cases
This media converter is ideal for extending 10 Gigabit Ethernet networks across mixed media environments, particularly in industrial, commercial, or infrastructure applications where copper and fiber segments must interoperate. It enables cost-effective upgrades by allowing existing copper cabling to connect to fiber backbones without replacing entire network segments.
Common deployment scenarios include connecting IP cameras or sensors over copper to fiber uplinks in manufacturing plants, linking office networks to data centers over longer distances, or integrating legacy equipment into modern fiber-based networks in utility or transportation systems. The DIN rail mounting option makes it perfect for control panels or network cabinets in industrial automation settings.
Industrial Network Extension
Extend 10G copper connections to fiber backbones in factories or warehouses, overcoming distance limits and electrical interference common in industrial environments.
Data Center Connectivity
Bridge copper server connections to fiber switches in data centers, enabling high-speed links while maintaining flexibility for future upgrades or reconfigurations.
Physical Profile
The converter features a slim, rugged metal chassis designed for space-constrained installations. Its compact dimensions of 4.72" x 1.18" x 3.86" (120 x 30 x 98 mm) allow it to fit neatly on DIN rails or mount directly to walls using the included kit. The terminal block power connector ensures secure wiring in vibration-prone environments, while the lightweight design at 11.78 oz (334 g) simplifies handling during deployment.
- Width
- 1.18" (30 mm)
- Depth
- 3.86" (98 mm)
- Height
- 4.72" (120 mm)
- Weight
- 11.78 oz (334 g)
What's in the Box
The package includes everything needed for immediate deployment in industrial or commercial settings.
Highlights
- Converts between 10GBase-T RJ-45 copper and 10GBase-X SFP+ fiber connections
- Supports maximum data transfer rate of 20 Gbit/s for high-bandwidth applications
- Industrial-grade design with DIN rail and wall mounting options
- Powered via external adapter with secure terminal block connections
- Compact dimensions: 4.72" x 1.18" x 3.86" (120 x 30 x 98 mm)
- Low power consumption at 7.20 W for energy-efficient operation
- Includes removable terminal blocks and mounting kit for easy installation
- Compliant with RoHS, WEEE, and TAA requirements
- Backed by 3-year limited warranty for long-term reliability
- Manufactured in Taiwan with CEC environmental certification
Specifications
| Specifications | |
|---|---|
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TI-F711SFP |
| Brand Name | TRENDnet |
| Product Name | Industrial 10G SFP+ Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Maximum Data Transfer Rate | 20 Gbit/s |
| I/O Expansions | |
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 1 |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 10GBase-T,10GBase-X |
| Power Description | |
| Power Source | Power Adapter |
| Power Consumption | 7.20 W |
| Plug/Connector Type | Terminal Block |
| Physical Characteristics | |
| Form Factor | DIN Rail Mountable,Wall Mountable |
| Height | 4.72" (120 mm) |
| Width | 1.18" (30 mm) |
| Depth | 3.86" (98 mm) |
| Weight (Approximate) | 11.78 oz (334 g) |
| Miscellaneous | |
| Package Contents | Industrial 10G SFP+ Media Converter Removable terminal blocks DIN-Rail / Wall Mount Kit |
| Environmentally Friendly | Yes |
| Environmental Certification | China Environmental United Certification Center (CEC) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What types of media does this converter support?
The TI-F711SFP supports both twisted pair copper cables (10GBase-T) and optical fiber through SFP+ modules (10GBase-X). This allows conversion between Category 6a/7 Ethernet cables and single-mode or multimode fiber connections, providing flexibility for mixed-media network environments.
What is the maximum data transfer rate?
This media converter supports a maximum data transfer rate of 20 Gbit/s, enabling full-duplex 10 Gigabit Ethernet performance. This ensures high-bandwidth applications can operate without bottlenecks when converting between copper and fiber media.
How is this converter powered?
Power is supplied via an external power adapter that connects to the converter using removable terminal blocks. This provides secure wiring in industrial environments, with a power consumption of 7.20 W for energy-efficient operation.
What mounting options are available?
The converter is designed for industrial deployment with both DIN rail and wall mounting capabilities. The included DIN-Rail/Wall Mount Kit provides all necessary hardware for secure installation in control panels, network cabinets, or directly on walls in commercial or industrial settings.
What SFP+ modules are compatible?
The converter features one SFP+ slot that is compatible with industry-standard 10GBase-X SFP+ transceivers. You can use single-mode or multimode fiber modules from TRENDnet or other reputable manufacturers, allowing flexibility for different distance requirements and fiber types.
What warranty and compliance certifications does it have?
The product comes with a 3-year limited warranty and is compliant with RoHS (Restriction of Hazardous Substances), WEEE (Waste Electrical and Electronic Equipment Directive), and TAA (Trade Agreements Act) requirements. It also carries certification from the China Environmental United Certification Center (CEC) and is manufactured in Taiwan.
