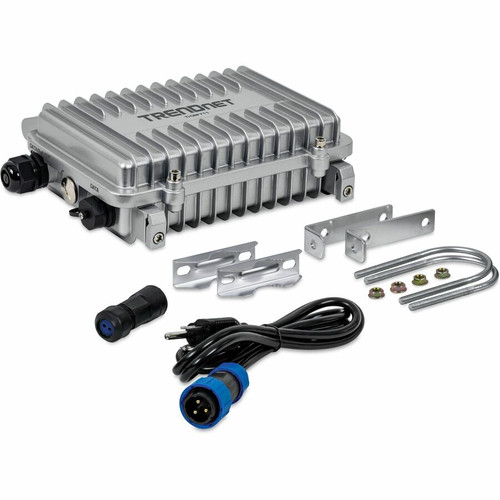

TRENDnet TI-OBF711 Industrial Outdoor 10G SFP+ to 10G PoE++ Media Converter - 95W Power - Single-Mode LC - 20 km
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The TI-OBF711 delivers 10 Gigabit Ethernet performance through 10GBase-T technology on the copper side and 10G SFP+ compatibility on the fiber side. It operates at a 1310 nm wavelength for single-mode fiber, ensuring optimal signal integrity over extended distances. The media converter supports both twisted pair and optical fiber media, providing flexibility in network design.
Power efficiency is a key feature, with a consumption of 7.33 W under typical operation. The device includes one 100W PoE++ port configured as a Power Sourcing Equipment (PSE) port, capable of delivering high power to connected devices. This makes it suitable for powering next-generation network equipment that requires substantial power budgets.
Key Product Advantages
This media converter combines high-speed 10G connectivity with robust power delivery and outdoor durability. The integration of 95W PoE++ eliminates the need for separate power injectors or local power sources at remote endpoints, simplifying deployment and reducing infrastructure costs.
Industrial Outdoor Design
Built to withstand outdoor conditions with a pole-mount form factor, ensuring reliable performance in harsh environments where temperature, moisture, and physical exposure are factors.
- Pole mount hardware included
- Rugged construction for outdoor use
- TAA compliant for government deployments
Long-Distance Fiber Support
Supports single-mode LC duplex fiber connections up to 20 km, enabling network extension over significant distances without signal degradation, ideal for connecting remote buildings or surveillance points.
- 20 km maximum distance
- Single-mode fiber compatibility
- LC duplex connector
High-Power PoE++ Delivery
Features a 100W PoE++ port that delivers substantial power to connected devices, supporting power-hungry equipment like high-performance wireless access points, PTZ cameras, or small network switches.
- 95W PoE++ power budget
- PSE port for power sourcing
- Simplifies power management
Deployment / Use Cases
The TI-OBF711 is ideal for outdoor networking scenarios where fiber backbone connections need to interface with copper-based edge devices. Its PoE++ capability and rugged design make it a versatile solution for extending network reach while powering remote equipment.
Common use cases include connecting fiber-optic backbones to outdoor wireless access points in campus or municipal Wi-Fi deployments, powering IP surveillance cameras in perimeter security systems, and linking remote buildings or industrial sites where fiber runs are necessary for distance and interference immunity. The pole-mount form factor facilitates installation on utility poles, light posts, or building exteriors.
Outdoor Wireless Networks
Deploy in outdoor Wi-Fi hotspots to convert fiber backhaul to copper for access points, providing both data and power over a single cable.
Security and Surveillance
Use in perimeter security systems to connect fiber runs to PoE++ cameras, ensuring reliable power and high-bandwidth video transmission over long distances.
Physical Profile
The media converter features a compact pole-mount design with dimensions of 9.25" (235 mm) height, 6.06" (154 mm) width, and 2.95" (75 mm) depth, weighing approximately 4.03 lb (1830 g). This form factor is optimized for secure attachment to poles or other outdoor structures, with included mounting hardware for straightforward installation. The robust construction ensures durability in outdoor environments, protecting internal components from environmental stressors.
- Width
- 6.06" (154 mm)
- Depth
- 2.95" (75 mm)
- Height
- 9.25" (235 mm)
- Weight
- 4.03 lb (1830 g)
- Length
- 1310 nm
What's in the Box
The package includes all necessary components for immediate deployment.
Highlights
- Converts between 10G SFP+ fiber and 10GBase-T copper Ethernet
- Delivers 95W PoE++ power via a single 100W PSE port
- Supports single-mode LC duplex fiber connections up to 20 km
- Industrial outdoor design with pole-mount form factor
- 10 Gbit/s data transfer rate for high-bandwidth applications
- 1310 nm wavelength for optimal single-mode fiber performance
- TAA compliant for use in government and institutional deployments
- Includes power cord and mounting hardware for easy installation
- 3-year limited warranty for long-term reliability
- Power consumption of 7.33 W for energy-efficient operation
Specifications
| Specifications | |
|---|---|
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TI-OBF711 |
| Brand Name | TRENDnet |
| Product Model | TI-OBF711 |
| Product Name | Industrial Outdoor 10G SFP+ to 10G PoE++ Media Converter (95W) |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of 100W PoE (RJ-45) Ports | 1 |
| PoE Port Type | PSE |
| Number of LC Ports | 1 |
| LC Port Type | Duplex |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 1310 nm |
| Maximum Data Transfer Rate | 10 Gbit/s |
| Maximum Distance Supported | 20 km (12.43 Mile) |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 10GBase-T |
| Power Description | |
| Power Consumption | 7.33 W |
| Physical Characteristics | |
| Form Factor | Pole |
| Height | 9.25" (235 mm) |
| Width | 6.06" (154 mm) |
| Depth | 2.95" (75 mm) |
| Weight (Approximate) | 4.03 lb (1830 g) |
| Miscellaneous | |
| Package Contents | Industrial Outdoor 10G SFP+ to 10G PoE++ Media Converter (95W) 3-pin Power Cord (1.5m / 5 ft.) Pole Mount Hardware |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What does this media converter do?
This media converter bridges fiber optic and copper Ethernet networks by converting 10G SFP+ fiber signals to 10GBase-T twisted-pair copper. It also provides 95W PoE++ power through its copper port, allowing you to power connected devices like access points or cameras while transmitting data over distances up to 20 km via single-mode LC fiber.
What type of fiber does it support?
It supports single-mode LC duplex fiber with a 1310 nm wavelength. This fiber type is ideal for long-distance connections, with a maximum supported distance of 20 km (12.43 miles), making it suitable for extending networks between buildings or across large outdoor areas without signal loss.
How much power does the PoE++ port deliver?
The PoE++ port delivers up to 95W of power, configured as a Power Sourcing Equipment (PSE) port. This high power budget supports demanding devices such as next-generation wireless access points, PTZ cameras, or small network switches, eliminating the need for separate power supplies at remote locations.
Is this device suitable for outdoor use?
Yes, it is designed for industrial outdoor use with a pole-mount form factor and rugged construction. Included pole mount hardware facilitates installation on utility poles or building exteriors, and its design withstands environmental factors like temperature variations and moisture, ensuring reliable performance in harsh conditions.
What is the maximum data transfer rate?
The maximum data transfer rate is 10 Gbit/s, achieved through 10GBase-T technology on the copper side and 10G SFP+ compatibility on the fiber side. This high-speed performance supports bandwidth-intensive applications such as high-definition video streaming, large file transfers, and backbone network connections.
What is included in the package?
The package includes the Industrial Outdoor 10G SFP+ to 10G PoE++ Media Converter (95W), a 3-pin power cord (1.5 meters / 5 feet long), and pole mount hardware. These components provide everything needed for installation and operation, allowing for quick deployment in outdoor networking scenarios.
