TRENDnet TFC-1000S10D5 Gigabit Ethernet Media Converter - 1000Base-T to 1000Base-LX Single-Mode SC Fiber (10km) Wall-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This media converter implements Gigabit Ethernet technology across both copper and fiber interfaces. The 1000Base-T port connects to standard Cat5e or higher twisted-pair cabling, while the 1000Base-LX fiber port uses 1300nm or 1550nm wavelengths over single-mode optical fiber. The SC connector type provides secure physical connectivity with standard fiber patch cables.
The converter's management features include support for Simple Network Management Protocol (SNMP), enabling remote monitoring of port status, error counts, and performance metrics. This management capability is essential for maintaining visibility in distributed network deployments where fiber links span between buildings or across campuses.
This section brings together practical product details such as Total Number of Ports, Network (RJ-45), Number of Network (RJ-45) Ports, Media Type Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The TFC-1000S10D5 extends network reach beyond copper limitations while maintaining Gigabit performance. Its single-mode fiber support enables long-distance connections without signal degradation, making it ideal for connecting separate buildings or spanning large facilities.
Distance Extension
Converts copper to fiber to overcome the 100-meter limitation of twisted-pair cabling, supporting reliable connections up to 10 kilometers.
- Eliminates copper distance restrictions
- Maintains signal integrity over fiber
Management & Compliance
Includes SNMP for network monitoring and meets TAA compliance requirements for U.S. and Canadian government deployments.
- Remote port monitoring capability
- Government procurement compliant
Deployment Flexibility

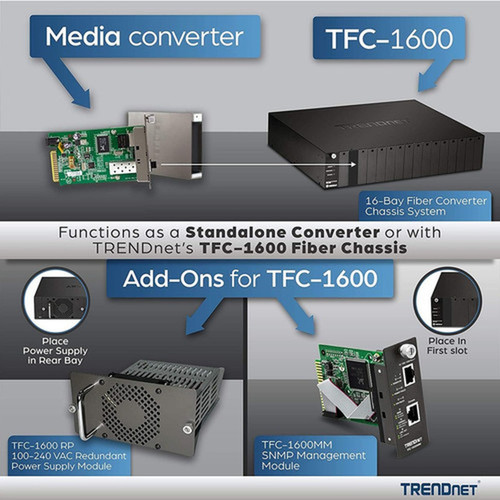

Functions as a standalone converter or chassis-mounted unit, adapting to both distributed and centralized network architectures.
- Standalone or chassis operation
- Wall-mount installation option
Deployment / Use Cases
The TFC-1000S10D5 is deployed wherever network segments need to transition between copper and fiber media. Common applications include connecting fiber backbone networks to copper-based access switches, extending network reach between separate buildings on a campus, and integrating fiber optic links into existing copper infrastructure.
In educational campuses, the converter enables connections between administrative buildings and distant academic facilities. For industrial environments, it provides reliable connectivity across manufacturing floors or between control rooms and remote equipment. The wall-mount form factor allows installation in telecom closets, equipment rooms, or industrial control panels where rack space is limited.
Campus Network Extension
Connect buildings across large properties using existing single-mode fiber infrastructure while maintaining Gigabit throughput.
Industrial Connectivity
Bridge copper-based control systems with fiber optic networks in manufacturing facilities, utilities, or transportation environments.
Physical Profile
The converter features a compact wall-mountable enclosure measuring 3 inches in height, 8 inches in width, and 8 inches in depth (76.20 mm × 203.20 mm × 203.20 mm). With an approximate weight of 1.49 pounds (673.58 grams), the unit installs easily in standard electrical boxes or directly on wall surfaces using included mounting hardware. The form factor optimizes space utilization in crowded network cabinets or industrial control panels.
- Width
- 8" (203.20 mm)
- Depth
- 8" (203.20 mm)
- Height
- 3" (76.20 mm)
- Weight
- 1.49 lb (673.58 g)
What's in the Box
The package includes all components needed for immediate deployment of the media converter.
Highlights
- Converts 1000Base-T copper to 1000Base-LX single-mode fiber
- Supports distances up to 10 km (6.21 miles) over fiber
- SC-type dual-wavelength fiber port for single-mode connections
- Includes port-level SNMP management capabilities
- Functions standalone or with TFC-1600 fiber chassis
- 1000Base-T Gigabit copper port operates in full-duplex mode
- Wall-mountable form factor for flexible installation
- 3-year lifetime warranty with TAA compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TFC-1000S10D5 |
| Brand Name | TRENDnet |
| Product Model | TFC-1000S10D5 |
| Product Name | 1000Base-T to WDM TX-1550 Single Mode Fiber Converter(10KM) |
| Product Condition | New |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Maximum Distance Supported | 10 km (6.21 Mile) |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-T,1000Base-LX |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Height | 3" (76.20 mm) |
| Width | 8" (203.20 mm) |
| Depth | 8" (203.20 mm) |
| Weight (Approximate) | 1.49 lb (673.58 g) |
| Miscellaneous | |
| Package Contents | TFC-1000S10D5 Gigabit Ethernet Stand-Alone Media Converter Power Adapter Quick Installation Guide |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year Lifetime |
User Manual
FAQ
What does this media converter actually convert?
The TFC-1000S10D5 converts between 1000Base-T Gigabit Ethernet over twisted-pair copper cabling and 1000Base-LX Gigabit Ethernet over single-mode fiber optic cabling. It takes electrical signals from standard RJ-45 Ethernet ports and converts them to optical signals for transmission over fiber, or vice versa.
What is the maximum distance this converter supports?
This converter supports fiber connections up to 10 kilometers (approximately 6.21 miles) when using single-mode fiber optic cabling. This distance far exceeds the 100-meter limitation of standard copper Ethernet cabling, making it ideal for connecting network segments between separate buildings or across large facilities.
What type of fiber connector does this converter use?
The converter uses an SC-type fiber optic connector for the fiber interface. SC connectors are standard in single-mode fiber deployments and provide secure, reliable connections with common fiber patch cables. The port supports dual-wavelength operation (1300nm and 1550nm) compatible with standard single-mode fiber infrastructure.
Can this converter be managed remotely?
Yes, the TFC-1000S10D5 supports port-level SNMP (Simple Network Management Protocol) management. This allows network administrators to monitor port status, track error counts, and manage connectivity remotely through standard network management systems. The management capabilities provide visibility into fiber link performance and health.
How is this converter typically installed?
The converter features a wall-mountable form factor that allows installation in standard electrical boxes, on wall surfaces, or in equipment racks using appropriate mounting hardware. It can operate as a standalone unit or be installed in a TRENDnet TFC-1600 fiber chassis for centralized management in multi-converter deployments.
What compliance standards does this converter meet?
The TFC-1000S10D5 is TAA (Trade Agreements Act) compliant, making it eligible for procurement by U.S. and Canadian government agencies. It also comes with a 3-year lifetime warranty from TRENDnet, providing long-term support for enterprise deployments where reliability and vendor backing are critical considerations.
