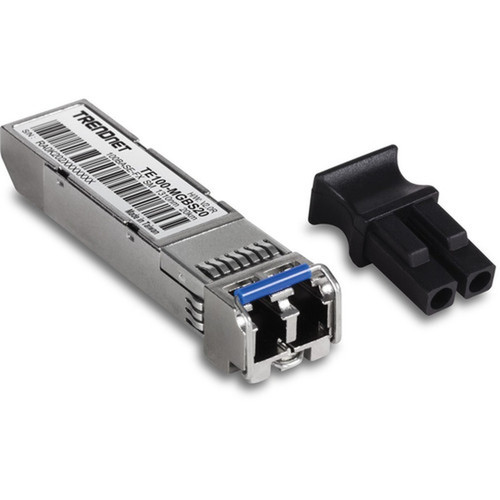

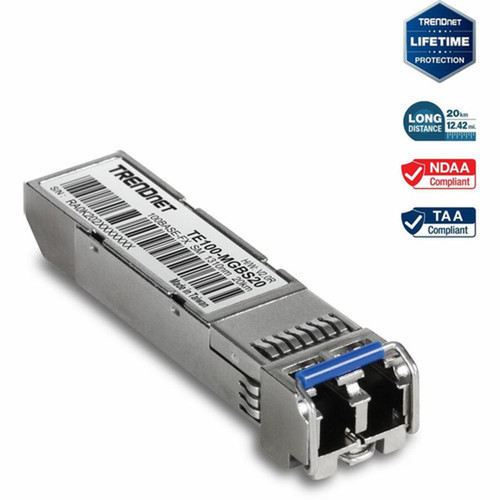

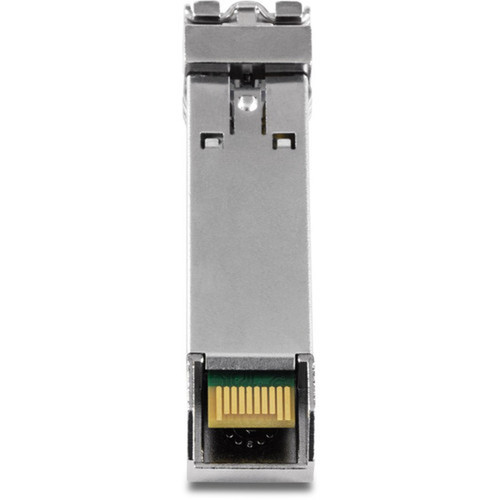

TRENDnet TE100-MGBS20 SFP 100Base-FX Single-Mode LC Module - 20 km Reach - Fast Ethernet - Hot-Pluggable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The module operates on the 100Base-FX standard, delivering Fast Ethernet speeds of up to 155 Mbps over optical fiber. It uses a single LC duplex port for bidirectional communication, ensuring efficient data flow in network uplinks or backbone connections.
Designed for durability and performance, the TE100-MGBS20 supports hot-pluggable installation, allowing for maintenance and upgrades without network downtime. Its single-mode fiber compatibility provides low signal attenuation over long distances, making it ideal for extended-reach applications.
This section brings together practical product details such as Application/Usage, Total Number of Ports, Connector Type, Interfaces/Ports Details, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This SFP module offers several advantages for network deployments requiring reliable, long-distance fiber connectivity. Its compliance with industry standards ensures interoperability with a wide range of networking hardware.
Extended Reach Capability
Supports transmission distances up to 20 kilometers, enabling connectivity between geographically dispersed network segments without signal degradation.
- Ideal for campus networks
- Suitable for metropolitan area links
Standards Compliance
Built to MSA specifications for guaranteed compatibility with SFP slots in switches, routers, and media converters from various manufacturers.
- Reduces compatibility concerns
- Simplifies procurement and deployment
Hot-Pluggable Design
Allows installation and removal without powering down network equipment, minimizing disruption during maintenance or upgrades.
- Supports live network operations
- Enhances serviceability
Deployment / Use Cases
The TE100-MGBS20 is versatile for various networking scenarios that require fiber optic connectivity over medium to long distances. Its single-mode fiber support makes it particularly effective in environments where signal integrity over extended runs is critical.
Common applications include connecting network switches between buildings in a campus setting, establishing backbone links in enterprise networks, and providing uplinks for service provider equipment. The module's compatibility with standard SFP slots ensures it can be deployed in existing infrastructure without requiring specialized hardware.
Campus Network Backbone
Connect switches or routers across multiple buildings using single-mode fiber for high-speed, low-latency data transfer over distances up to 20 km.
Enterprise Network Uplinks
Provide reliable fiber uplinks between core and distribution layers in large office networks, ensuring consistent performance for data-intensive applications.
Physical Profile
The module features a compact, hot-pluggable form factor with dimensions of 0.50" (12.60 mm) in height, 2.28" (58 mm) in width, and 0.53" (13.40 mm) in depth. It weighs approximately 0.63 oz (18 g), making it lightweight for high-density installations in network equipment racks or enclosures.
- Width
- 2.28" (58 mm)
- Depth
- 0.53" (13.40 mm)
- Height
- 0.50" (12.60 mm)
- Weight
- 0.63 oz (18 g)
What's in the Box
The package includes the 100Base-FX SFP single-mode LC module and a quick installation guide to assist with setup and deployment.
Highlights
- SFP module for 100Base-FX Fast Ethernet networking
- Single-mode fiber support with LC duplex connectors
- Up to 20 km (12.4 miles) transmission distance
- Hot-pluggable form factor for easy installation
- MSA compliant for broad hardware compatibility
- TAA compliant for U.S. and Canadian government use
- Compact dimensions: 0.50" H x 2.28" W x 0.53" D
- Includes quick installation guide
Specifications
| Specifications | |
|---|---|
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TE100-MGBS20 |
| Brand Name | TRENDnet |
| Product Model | TE100-MGBS20 |
| Product Name | 100Base-FX SFP Single-Mode LC Module (20km) |
| Product Condition | New |
| Product Type | SFP |
| Technical Information | |
| Application/Usage | Data Networking |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | 1 x LC Duplex 100Base-FX Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 100Base-FX |
| Physical Characteristics | |
| Form Factor | Hot-pluggable |
| Height | 0.50" (12.60 mm) |
| Width | 2.28" (58 mm) |
| Depth | 0.53" (13.40 mm) |
| Weight (Approximate) | 0.63 oz (18 g) |
| Miscellaneous | |
| Package Contents | 100Base-FX SFP Single-Mode LC Module (20km) Quick Installation Guide |
| Compatibility | MSA Compliant |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What type of fiber does this SFP module support?
The TRENDnet TE100-MGBS20 supports single-mode fiber optic cables. Single-mode fiber is designed for long-distance transmission with low signal attenuation, making this module suitable for reaches up to 20 kilometers in data networking applications.
What is the maximum data speed of this module?
This module supports Fast Ethernet technology with a maximum data rate of 155 Mbps, operating on the 100Base-FX network standard. It is designed for reliable performance in fiber optic network segments requiring moderate bandwidth.
What connector type does this SFP module use?
It uses an LC duplex connector for optical fiber connections. The LC connector is a small form-factor connector commonly used in SFP modules, providing a secure and efficient interface for single-mode fiber cables in network deployments.
Is this module hot-pluggable?
Yes, the TE100-MGBS20 features a hot-pluggable form factor. This allows you to install or remove the module from compatible network equipment without powering down the device, minimizing disruption during maintenance or upgrades.
What is the maximum transmission distance?
The module supports transmission distances up to 20 kilometers (approximately 12.4 miles) over single-mode fiber. This extended reach makes it suitable for connecting network devices across campus environments or between distant locations.
Is this SFP module compatible with my existing network equipment?
The TE100-MGBS20 is MSA (Multi-Source Agreement) compliant, ensuring compatibility with a wide range of SFP-enabled switches, routers, and media converters from various manufacturers. Always verify compatibility with your specific hardware model before deployment.
