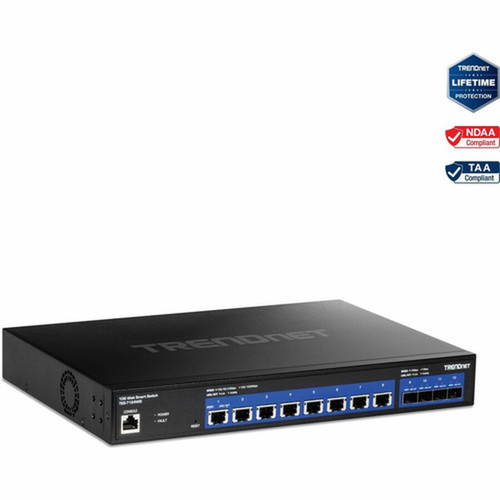

TRENDnet TEG-7124WS 12-Port 10G Web Smart Switch - 8 x 10GbE RJ-45 - 4x SFP+ - Layer 3 - Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The TEG-7124WS supports a comprehensive set of networking standards, including IEEE 802.1Q for VLAN tagging, IEEE 802.3ad for link aggregation, and IEEE 802.1x for port-based authentication. Its 10 Gigabit Ethernet technology ensures maximum data transfer rates of 1.25 GB/s per port, minimizing bottlenecks in high-traffic scenarios.
The switch's modular design includes four SFP+ slots for 10GBase-X fiber connections, enabling long-distance uplinks or connections to existing fiber infrastructure. It is fully manageable via a web interface, allowing administrators to configure QoS, security policies, and monitoring settings without requiring a dedicated CLI.
Relevant factors for this section include Total Number of Network Ports, Network (RJ-45), Modular, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The TEG-7124WS delivers a balanced mix of port density, speed, and management features that address core networking demands. Its hybrid port configuration allows organizations to leverage existing copper cabling while retaining the option for fiber expansion, future-proofing network investments.
Flexible Uplink Options
Four SFP+ slots support 10G fiber modules, providing scalable uplink connectivity for backbone or long-distance links without sacrificing RJ-45 port availability.
- 10GBase-X compatibility
- Hot-swappable SFP+ modules
- Mixed media deployment
Layer 3 Functionality
Web smart Layer 3 support enables inter-VLAN routing, static routing, and advanced traffic management, reducing reliance on core routers for basic routing tasks.
- Inter-VLAN routing
- Static routing tables
- Access control lists
Rack-Ready Design
The 1U metal chassis includes integrated rack ears and a low-profile form factor, optimizing rack space while ensuring robust physical protection.
- 19-inch rack compatibility
- Metal construction
- Tool-less mounting
Deployment / Use Cases
This switch is ideal for environments requiring high-bandwidth aggregation, such as connecting servers, storage arrays, or high-performance workstations in a data center. Its 10G ports eliminate bottlenecks for NAS devices, virtualization hosts, and video editing stations that demand consistent multi-gigabit throughput.
The TEG-7124WS also serves as a distribution layer switch in medium to large networks, where its Layer 3 capabilities can handle inter-VLAN routing between access switches. The SFP+ slots make it suitable for fiber uplinks to core switches or for connecting separate buildings across campus networks.
Relevant factors for this section include Total Number of Network Ports, Network (RJ-45), Modular, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
The switch features a compact 1U rack-mountable design with a metal enclosure that provides durability and effective heat dissipation. Its dimensions of 1.73" height, 12.80" width, and 9.06" depth fit standard 19-inch racks, and the approximate weight of 4.32 lb ensures easy handling during installation. The front panel includes clear port labeling and status LEDs for at-a-glance monitoring.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.73" (44 mm), 12.80" (325 mm), 9.06" (230 mm), 4.32 lb (1960 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 12.80" (325 mm)
- Depth
- 9.06" (230 mm)
- Height
- 1.73" (44 mm)
- Weight
- 4.32 lb (1960 g)
What's in the Box
The package includes all necessary components for immediate deployment and management.
Highlights

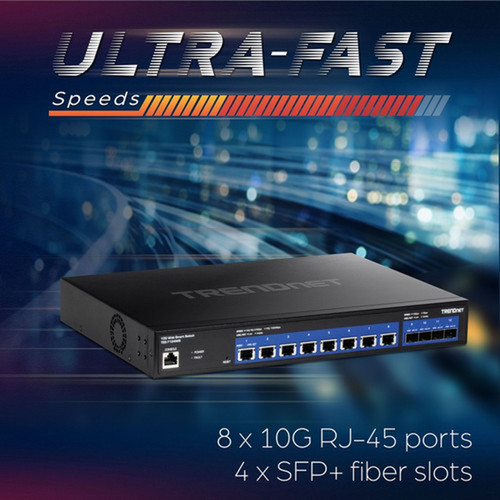

- 12 total ports: 8x 10GBase-T RJ-45 and 4x SFP+ slots
- Layer 3 web smart management with VLAN and QoS support
- 10 Gigabit Ethernet technology for 1.25 GB/s per port throughput
- Rack-mountable 1U metal chassis for durable deployment
- Supports twisted pair and optical fiber media types
- Comprehensive IEEE standards including 802.1Q, 802.3ad, 802.1x
- Dual voltage input (120V/230V AC) for global compatibility
- Lifetime limited warranty and TAA compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TEG-7124WS |
| Brand Name | TRENDnet |
| Product Line | Web Smart |
| Product Model | TEG-7124WS |
| Product Name | 12-Port 10G Web Smart Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 12 |
| Network (RJ-45) | Yes |
| Modular | Yes |
| Port/Expansion Slot Details | 8 x 10 Gigabit Ethernet Network,4 x 10 Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 10GBase-T,10GBase-X |
| Maximum Data Transfer Rate | 1.25 GB/s |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 4 |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1w,IEEE 802.1x,IEEE 802.1ab,IEEE 802.3ae,IEEE 802.3x,IEEE 802.3z,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3az,IEEE 802.3af,IEEE 802.3at,IEEE 802.3an,IEEE 802.1s,IEEE 802.3bz |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Power Source | Power Supply |
| Power Consumption | 152.30 W |
| Physical Characteristics | |
| Product Material | Metal |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 1.73" (44 mm) |
| Width | 12.80" (325 mm) |
| Depth | 9.06" (230 mm) |
| Weight (Approximate) | 4.32 lb (1960 g) |
| Miscellaneous | |
| Package Contents | 12-Port 10G Web Smart Switch Quick Installation Guide Power cord (1.8m/6 ft.) Rackmount Kit Console Cable (1m / 3.28 ft.) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
How many 10 Gigabit Ethernet ports does this switch have?
The TRENDnet TEG-7124WS has eight 10GBase-T RJ-45 ports for copper connections and four SFP+ slots that support 10GBase-X fiber modules. This totals 12 ports capable of 10 Gigabit speeds, providing flexibility for mixed media deployments.
What is the difference between Layer 2 and Layer 3 on this switch?
This switch supports Layer 3 functionality, which means it can perform basic routing tasks like inter-VLAN routing and static routing, unlike Layer 2 switches that only handle switching at the data link layer. Layer 3 capability reduces the need for a separate router in smaller networks and improves traffic management.
Can I use this switch for fiber optic connections?
Yes, the four SFP+ slots support 10GBase-X fiber optic modules, allowing you to connect to fiber networks for long-distance uplinks or backbone links. You will need to purchase compatible SFP+ transceivers separately based on your fiber type and distance requirements.
Is this switch rack-mountable and what size rack does it fit?
The switch is designed for 1U rack mounting and fits standard 19-inch racks. It includes a rackmount kit with ears for easy installation, and its compact dimensions (1.73" H x 12.80" W x 9.06" D) optimize space in server cabinets or network closets.
What management features are available on the TEG-7124WS?
Management is handled through a web-based interface that supports VLAN configuration, link aggregation (LACP), QoS prioritization, port security via 802.1x, and SNMP monitoring. It does not require a command-line interface, making it accessible for administrators familiar with GUI-based tools.
Does this switch support Power over Ethernet (PoE)?
No, the TEG-7124WS does not support Power over Ethernet. It is a non-PoE switch focused on high-speed data connectivity. If you need PoE for devices like IP cameras or access points, consider a dedicated PoE switch or injectors for those specific connections.
