TRENDnet TI-IG290 95W 2-Port Industrial 2.5G PoE++ Injector - 56V DC Input - 180W Power Budget - DIN Rail/Wall Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This injector implements the full suite of Power over Ethernet standards—IEEE 802.3af (PoE, 15.4W), IEEE 802.3at (PoE+, 30W), and IEEE 802.3bt (PoE++, up to 95W per port)—ensuring backward compatibility with a wide range of powered devices. Each of the two output ports delivers data and PoE over standard Cat5e/6 cable up to 100 meters (328 feet), maintaining 2.5 Gigabit Ethernet throughput for bandwidth-intensive applications.
Redundant power inputs with terminal block connections provide fault tolerance, while the compact chassis measures 4.06" x 3.19" x 1.18" (103mm x 81mm x 30mm) and weighs approximately 6 ounces (170g). The device carries CE, FCC, and IEC EN60950-1 certifications, along with shock, vibration, and freefall testing per IEC 60068 standards, confirming its suitability for industrial and commercial use.
Relevant factors for this section include Protection Type, Input Voltage, Maximum Output Power. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The TI-IG290 eliminates the need for separate power supplies at remote device locations, simplifying cabling and reducing installation costs. Its industrial construction and wide temperature tolerance make it ideal for outdoor enclosures, factory floors, and unconditioned spaces where standard injectors would fail.
High-Power PoE++ Support
Delivers up to 95W per port to power the latest high-demand devices, including 802.11ax Wi-Fi 6/6E access points, multi-sensor security cameras, and digital signage displays.
- Supports IEEE 802.3bt Type 4 devices
- Backward compatible with PoE and PoE+ equipment
Robust Protection & Reliability
Integrated electrical protections and a metal IP30 enclosure ensure continuous operation in electrically noisy or physically harsh environments.
- Surge, ESD, overload, and over-current protection
- Tested for shock, vibration, and freefall resistance
Deployment / Use Cases
Deploy this injector in scenarios where centralized PoE switching is impractical or where additional power capacity is needed beyond what a switch can provide. It is commonly used to extend network reach to remote devices while delivering both data and high wattage over a single cable.
Typical applications include powering outdoor Wi-Fi access points on poles or rooftops, industrial automation sensors and controllers on production lines, high-resolution surveillance cameras with heaters and blowers, and digital signage in retail or transportation hubs. The DIN-rail mounting option allows neat integration into existing industrial control panels, while wall mounting suits telecom rooms or equipment closets.
Industrial IoT & Automation
Provide reliable power and data to sensors, PLCs, and HMIs in manufacturing, logistics, or utility environments where temperature extremes and electrical noise are common.
High-Density Wireless Networks
Support next-generation Wi-Fi 6/6E access points that require higher PoE budgets for maximum performance, especially in stadiums, campuses, or large venues.

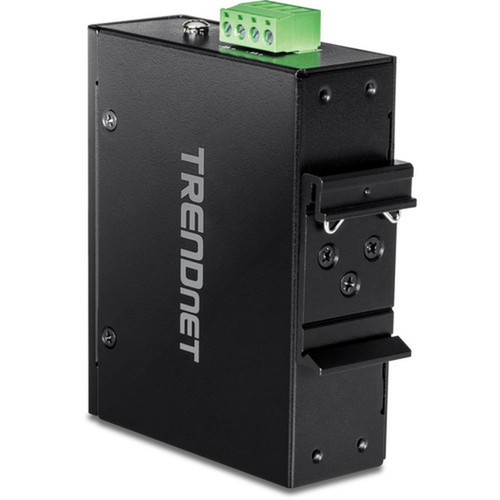

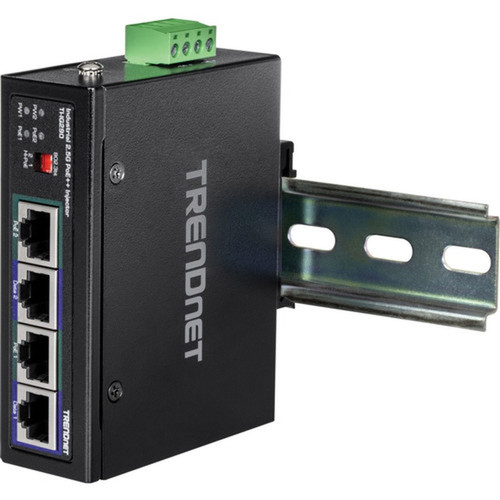

Physical Profile
The injector features a compact, low-profile metal enclosure designed for space-constrained installations. Its dimensions of 4.06" (103mm) length, 3.19" (81mm) width, and 1.18" (30mm) height allow it to fit neatly on DIN rails or mount directly to walls using the included kit. The IP30 rating protects against larger solid objects and dripping water, making it suitable for indoor industrial settings. The removable terminal block simplifies wiring, and the fanless construction ensures silent operation with no moving parts to wear out.
- Width
- 3.19" (81 mm)
- Height
- 1.18" (30 mm)
- Weight
- 6 oz (170 g)
- Length
- 4.06" (103 mm)
What's in the Box
The package includes all necessary components for immediate deployment.
Highlights
- Two 2.5G PoE++ output ports deliver data and up to 95W per port
- Two 2.5G Ethernet input ports for network uplink
- 180W total PoE power budget supports multiple high-power devices
- Supports PoE (15.4W), PoE+ (30W), and PoE++ (95W) standards
- IEEE 802.3af, 802.3at, and 802.3bt compliant for broad interoperability
- Fanless design for silent, energy-efficient operation
- Operates in extreme temperatures from -40°C to 75°C
- Redundant power inputs with overload and over-current protection
- Includes DIN-rail and wall-mounting hardware
- IP30 metal enclosure with surge and ESD protection
Specifications
| Specifications | |
|---|---|
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TI-IG290 |
| Brand Name | TRENDnet |
| Product Model | TI-IG290 |
| Product Name | 95W 2-Port Industrial 2.5G PoE++ Injector |
| Product Type | PoE++ Injector |
| Technical Information | |
| Protection Type | Surge Protection,ESD Protection,Overload Protection,Over Current |
| Power Description | |
| Input Voltage | 56 V DC |
| Maximum Output Power | 180 W |
| Interfaces/Ports | |
| Input Ports | 2 x 2.5 Gigabit Ethernet |
| Output Ports | 2 x 2.5 Gigabit PoE++ |
| Physical Characteristics | |
| Form Factor | DIN Rail/Wall Mountable |
| Height | 1.18" (30 mm) |
| Width | 3.19" (81 mm) |
| Length | 4.06" (103 mm) |
| Weight (Approximate) | 6 oz (170 g) |
| Miscellaneous | |
| Package Contents | 95W 2-Port Industrial 2.5G PoE++ Injector Quick Installation Guide Removable Terminal Block DIN-rail and Wall Mount Kit IP30 Rated Metal Enclosure |
| Certifications & Standards | CE FCC IEC EN60950-1 Shock (IEC 60068-2-27) Freefall (IEC 60068-2-32) Vibration (IEC 60068-2-6) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the maximum power output per port on this PoE++ injector?
Each of the two output ports supports up to 95W under the IEEE 802.3bt (PoE++) standard. This allows the injector to power high-demand devices like Wi-Fi 6/6E access points, PTZ cameras with heaters, or digital signage that require more power than traditional PoE or PoE+ can provide.
Does this injector support older PoE and PoE+ devices?
Yes, the TI-IG290 is fully backward compatible with IEEE 802.3af (PoE, 15.4W) and IEEE 802.3at (PoE+, 30W) standards. It automatically detects the power requirements of each connected device and delivers the appropriate wattage, ensuring interoperability with a wide range of existing and new powered devices.
What are the mounting options for this industrial injector?
The injector includes both DIN-rail and wall-mounting kits. The DIN-rail mounting allows integration into standard industrial control panels or racks, while the wall-mount option is suitable for telecom closets or equipment rooms. The compact metal enclosure is designed for easy installation in space-constrained environments.
What environmental conditions can this PoE injector operate in?
This injector is built for harsh environments, with an operating temperature range of -40°C to 75°C (-40°F to 167°F). Its fanless design eliminates moving parts that could fail in dusty or extreme conditions, and the IP30-rated metal enclosure provides protection against larger solid objects and dripping water.
What certifications and protections does this injector have?
The injector carries CE, FCC, and IEC EN60950-1 certifications, and is tested for shock, vibration, and freefall resistance per IEC 60068 standards. It includes integrated surge protection, ESD protection, overload protection, and over-current protection to safeguard both the injector and connected devices from electrical disturbances.
What is included in the package with the injector?
The package contains the 95W 2-Port Industrial 2.5G PoE++ Injector unit, a quick installation guide, a removable terminal block for power input connections, a DIN-rail and wall mount kit for flexible installation, and an IP30-rated metal enclosure. All necessary hardware for mounting and operation is provided.
