TRENDnet TI-TPG80 8-Port Industrial EN50155 M12 Gigabit PoE+ Railway Switch - 200W PoE Budget - Layer 2 - Wall Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Layer 2 switch provides full Gigabit Ethernet performance across all eight ports, supporting auto-negotiation and auto-MDI/MDIX for plug-and-play deployment. The EN50155 certification ensures it meets railway application requirements for shock, vibration, temperature extremes, and electromagnetic compatibility, making it suitable for rolling stock and trackside installations.
Power delivery is handled through an M23 interface, offering flexible input voltage options with high-efficiency PoE+ output. The switch's design prioritizes operational continuity, featuring redundant power supply support to maintain network uptime even during power source transitions or failures.
Relevant factors for this section include Total Number of Network Ports, Port/Expansion Slot Details, Media Type Supported, Ethernet Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The TI-TPG80 combines industrial toughness with practical networking features, offering a solution that bridges the gap between enterprise reliability and environmental durability. Its lifetime warranty and TAA compliance provide long-term value and procurement confidence for government and institutional buyers in the U.S. and Canada.
Industrial Ruggedness
EN50155 and M12 connectors provide resistance to environmental stressors like moisture, dust, and mechanical shock, ensuring reliable performance in harsh conditions where standard switches would degrade or fail.
- EN50155 railway standard compliance
- M12 connector durability
- Wide operating temperature range
High-Power PoE Delivery
With a 200W PoE budget at 48Vdc, this switch can power multiple high-demand PoE+ devices simultaneously, reducing the need for additional power injectors or midspans in deployment.
- 200W total PoE budget
- Supports PoE+ (802.3at) devices
- Flexible 24Vdc/48Vdc input options
Deployment / Use Cases
This switch is tailored for applications where network infrastructure must withstand physical and environmental challenges without compromising performance. Its wall-mountable form factor allows for flexible installation in control panels, enclosures, or directly on machinery, supporting both fixed and mobile deployments.
In public safety or municipal projects, the TI-TPG80 can power outdoor IP cameras and wireless mesh nodes, providing reliable connectivity for surveillance and public Wi-Fi networks. Its lightweight design also makes it suitable for temporary or portable setups in field operations or event management.
Railway and Transportation Networks
Deploy in rolling stock, stations, or trackside cabinets to provide networked connectivity for passenger Wi-Fi, surveillance systems, and operational data telemetry, leveraging EN50155 certification for safety and reliability.
Industrial Automation and IoT
Use in factories, warehouses, or outdoor industrial sites to connect PoE-powered sensors, cameras, and control devices, with M12 connectors ensuring secure connections in high-vibration environments.
Physical Profile
The switch measures 8.50" in length, 4" in width, and 2" in height (215.90 x 101.60 x 50.80 mm), with a weight of just 5.72 oz (162.16 g). This compact footprint and light weight facilitate easy mounting in tight spaces or on moving platforms, such as vehicle cabins or equipment racks.

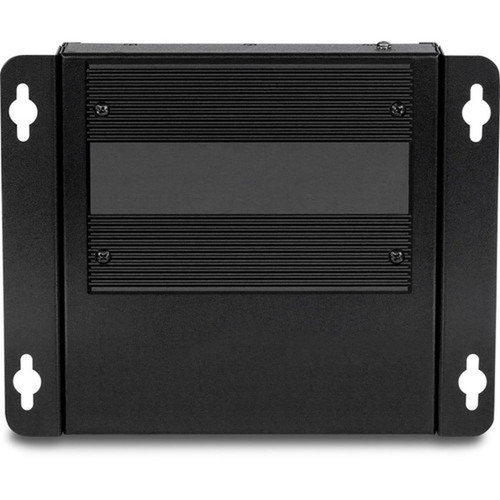

Wall-mounting capability is standard, with pre-configured mounting points that support secure installation in industrial enclosures or direct surface attachment. The ruggedized housing protects internal components from dust, moisture, and impact, aligning with the durability expected in transportation and heavy-industrial settings.
- Width
- 4" (101.60 mm)
- Depth
- 6" (152.40 mm)
- Height
- 2" (50.80 mm)
- Weight
- 5.72 oz (162.16 g)
- Length
- 8.50" (215.90 mm)
Highlights

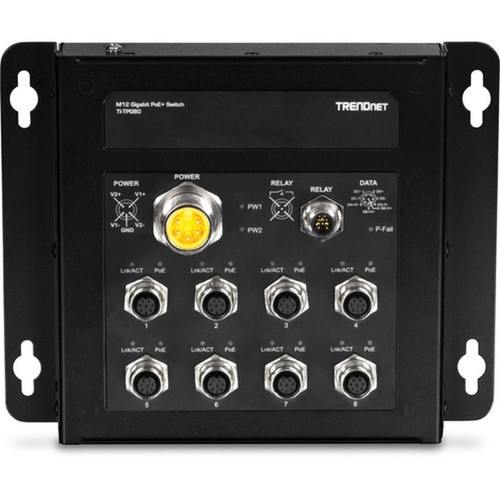

- 8 Gigabit Ethernet ports with full PoE+ support
- 200W total PoE budget at 48Vdc (100W at 24Vdc)
- EN50155 compliant for railway and transportation use
- M12 connectors for secure, vibration-resistant connections
- M23 power interface with redundant power supply support
- Layer 2 switching with 10/100/1000Base-T auto-negotiation
- Wall-mountable, compact design (8.50" x 4" x 2")
- Lifetime warranty and TAA compliant (U.S. and Canada)
Specifications
| Specifications | |
|---|---|
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TI-TPG80 |
| Brand Name | TRENDnet |
| Product Model | TI-TPG80 |
| Product Name | 8-Port Industrial EN50155 M12 Gigabit PoE+ Railway Switch |
| Product Condition | New |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 8 |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T |
| Network & Communication | |
| Layer Supported | 2 |
| Power Description | |
| Power Source | Power Supply |
| Redundant Power Supply Supported | Yes |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Height | 2" (50.80 mm) |
| Width | 4" (101.60 mm) |
| Depth | 6" (152.40 mm) |
| Length | 8.50" (215.90 mm) |
| Weight (Approximate) | 5.72 oz (162.16 g) |
| Miscellaneous | |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What is the PoE budget of the TRENDnet TI-TPG80 switch?
The TI-TPG80 provides a total PoE budget of 200W when operating at 48Vdc, or 100W at 24Vdc. This allows it to power multiple PoE+ (802.3at) devices simultaneously, such as IP cameras, wireless access points, or IoT sensors, without requiring additional power sources. The flexible input voltage supports various industrial power configurations.
How many ports does this industrial switch have?
This switch features 8 Gigabit Ethernet ports, all supporting 10/100/1000Base-T speeds. Each port uses M12 connectors for enhanced durability in high-vibration environments, and they provide auto-negotiation and auto-MDI/MDIX for straightforward deployment without manual configuration.
What does EN50155 compliance mean for this switch?
EN50155 is a European standard for electronic equipment used in railway applications, covering requirements for shock, vibration, temperature extremes, humidity, and electromagnetic compatibility. Compliance ensures the TI-TPG80 can reliably operate in rolling stock, trackside installations, and other transportation environments where reliability is critical.
Can this switch support redundant power supplies?
Yes, the TI-TPG80 supports redundant power supplies, enhancing reliability by allowing backup power sources to maintain operation if the primary supply fails. This feature is crucial in industrial and transportation settings where network uptime is essential for safety and operational continuity.
What are the physical dimensions and mounting options?
The switch measures 8.50" in length, 4" in width, and 2" in height (215.90 x 101.60 x 50.80 mm), with a weight of 5.72 oz (162.16 g). It is designed for wall mounting, with pre-configured mounting points that facilitate installation in industrial enclosures, control panels, or directly on surfaces in space-constrained environments.
Is the TRENDnet TI-TPG80 TAA compliant?
Yes, this switch is TAA compliant, meaning it meets the Trade Agreements Act requirements for procurement by U.S. federal government agencies and other institutional buyers. It is manufactured in Taiwan and qualifies for use in contracts that mandate TAA compliance, alongside a lifetime warranty for long-term reliability assurance.
