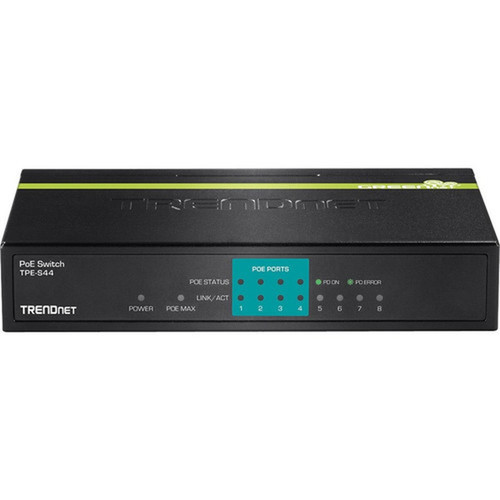

TRENDnet TPE-S44 8-Port Fast Ethernet PoE Switch - 4 PoE Ports - 30W Budget - Layer 2 - Desktop
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch features eight 10/100 Mbps ports divided into four PoE-capable ports (ports 1-4) and four standard Fast Ethernet ports. The 30W total PoE budget supports IEEE 802.3af compliant devices, allowing simultaneous power delivery to multiple PoE devices without external power injectors.
The Layer 2 switching architecture provides basic network segmentation and traffic management capabilities. With a switching capacity of 1.6 Gbps, the TPE-S44 handles typical small office traffic patterns efficiently while maintaining low 2.10W power consumption for energy-conscious deployments.
Relevant factors for this section include Total Number of Network Ports, Modular, Port/Expansion Slot Details, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The TPE-S44 combines PoE functionality with compact desktop design, offering installation flexibility where rack space is limited. The four dedicated PoE ports provide sufficient power for common PoE devices while the additional four standard ports accommodate non-PoE network equipment.
Simplified PoE Deployment
Eliminates the need for separate power injectors by delivering both data and power through standard Ethernet cables to compatible devices.
- Supports IEEE 802.3af devices
- 30W total budget for multiple devices
- Ports 1-4 dedicated for PoE
Space-Efficient Design
The compact desktop form factor fits easily on shelves, desks, or in network cabinets where vertical rack units aren't available.
- 5.9" width fits tight spaces
- 1.1" low-profile height
- 12.9 oz lightweight construction
Deployment / Use Cases
The TPE-S44 is particularly well-suited for small business networks, retail environments, and educational settings where basic PoE capabilities are needed without complex managed switching features. Its desktop form factor makes it ideal for office workstations, reception areas, and small conference rooms.
Common deployment scenarios include powering surveillance systems with multiple IP cameras, supporting VoIP phone systems in small offices, and extending wireless coverage through PoE-powered access points. The switch also works effectively as an edge device in branch offices or as an expansion switch in existing networks.
Small Office VoIP Deployment
Power up to four VoIP phones while connecting computers and printers through the remaining standard Ethernet ports.
Retail Surveillance Setup
Support multiple IP security cameras with PoE while maintaining connectivity for point-of-sale systems and inventory management devices.
Physical Profile
Measuring 5.90" wide × 3.80" deep × 1.10" high (149.86 × 96.52 × 27.94 mm), the TPE-S44 occupies minimal desk or shelf space. The 12.90 oz (365.71 g) weight ensures stability while remaining portable for temporary installations. The included rubber feet prevent sliding on smooth surfaces, and the compact dimensions allow placement in crowded network environments.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.10" (27.94 mm), 5.90" (149.86 mm), 3.80" (96.52 mm), 12.90 oz (365.71 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 5.90" (149.86 mm)
- Depth
- 3.80" (96.52 mm)
- Height
- 1.10" (27.94 mm)
- Weight
- 12.90 oz (365.71 g)
What's in the Box
The TPE-S44 ships complete with all necessary components for immediate deployment.
Highlights
- 8-port Fast Ethernet switch with 4 PoE ports
- 30W total PoE budget for powering multiple devices
- Layer 2 switching for basic network segmentation
- Compact desktop form factor (5.9" W × 3.8" D × 1.1" H)
- Low 2.10W power consumption
- TAA compliant for U.S. and Canadian government contracts
- Lifetime limited warranty
- Includes power adapter and installation accessories
Specifications
| Specifications | |
|---|---|
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TPE-S44 |
| Brand Name | TRENDnet |
| Product Model | TPE-S44 |
| Product Name | 8-Port 10/100 Mbps PoE Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 8 |
| Modular | No |
| Port/Expansion Slot Details | 4 x 10/100 Mbps PoE ports (port 1~4),4 x 10/100 Mbps Fast Ethernet ports |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 100/1000Base-T |
| Network & Communication | |
| Layer Supported | 2 |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 30 W |
| Power Source | Power Adapter |
| Power Consumption | 2.10 W |
| Physical Characteristics | |
| Form Factor | Desktop |
| Height | 1.10" (27.94 mm) |
| Width | 5.90" (149.86 mm) |
| Depth | 3.80" (96.52 mm) |
| Weight (Approximate) | 12.90 oz (365.71 g) |
| Miscellaneous | |
| Package Contents | TPE-S44 Fast Ethernet Switch Multi-Language User's Guide Power cord Rubber Feet Power Adapter (48V DC, 0.8A) |
| Environmentally Friendly | Yes |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
How many PoE ports does the TRENDnet TPE-S44 switch have?
The TPE-S44 has four dedicated PoE ports (ports 1 through 4) that support IEEE 802.3af compliant devices. These ports deliver both data and power over standard Ethernet cables, eliminating the need for separate power injectors for compatible PoE devices like IP cameras, VoIP phones, or wireless access points.
What is the total PoE power budget of this switch?
The switch provides a 30W total PoE budget, which can be distributed across the four PoE ports. This budget supports powering multiple PoE devices simultaneously, with the exact allocation per port managed dynamically based on connected device requirements and IEEE 802.3af standards.
What type of Ethernet speeds does this switch support?
All eight ports support Fast Ethernet speeds of 10/100 Mbps. The switch uses twisted pair cabling and is compatible with 100/1000Base-T network technology, making it suitable for typical small office networking applications where Gigabit speeds aren't required for all connected devices.
Is this switch rack-mountable or desktop only?
The TPE-S44 is designed as a desktop switch with a compact form factor measuring 5.90" wide × 3.80" deep × 1.10" high. It includes rubber feet for stable placement on desks, shelves, or other flat surfaces but does not include rack mounting hardware or brackets for standard rack installation.
What does Layer 2 switching mean for this device?
Layer 2 switching indicates the switch operates at the data link layer of the OSI model, providing basic network segmentation, MAC address learning, and traffic forwarding capabilities. This enables efficient local network communication without the advanced routing features found in Layer 3 managed switches, making it ideal for straightforward network expansion.
What warranty coverage does TRENDnet provide for this switch?
TRENDnet backs the TPE-S44 with a lifetime limited warranty, providing long-term protection against manufacturing defects. This warranty coverage, combined with TAA compliance for government contracts, makes this switch a reliable choice for business and institutional deployments where product longevity is important.
