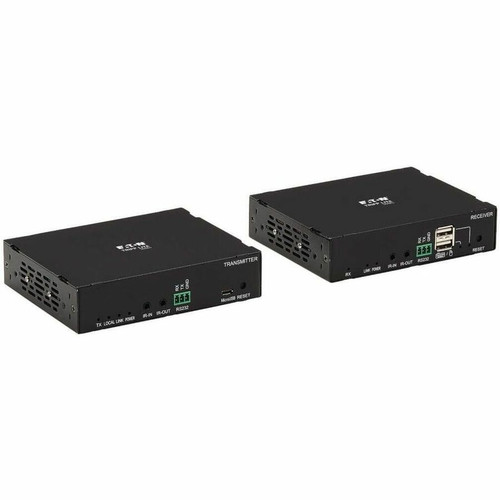

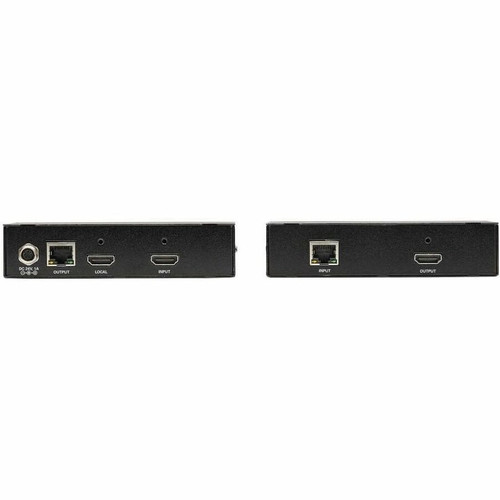

Tripp Lite by Eaton B127E-1A1-HH Video Extender Transmitter/Receiver - 4K HDMI over Cat6328 ft Range - 2 Input/1 Output - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This video extender utilizes Power over Cable (PoC) technology that delivers both signal and power to the receiver unit through the same Cat6 cable, eliminating the need for separate power at the display location. The system supports 4K graphics modes at 60 Hz refresh rates, ensuring smooth motion and detailed imagery for presentations, video playback, and interactive content.
The transmitter includes a local HDMI output port with multi-resolution support, allowing operators to monitor the extended Ultra HD image locally. Advanced signal processing maintains video integrity across the full 328-foot operating distance without compression artifacts or latency issues that can affect real-time applications.
Relevant factors for this section include Connectivity Technology, Number of Input Devices Supported, Number of Output Devices Supported, Graphics Modes. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This extender system delivers several distinct advantages for professional AV deployments. The Power over Cable technology simplifies installation by reducing cable clutter and eliminating the need for electrical outlets near displays. The inclusion of USB, infrared, and RS-232 control ports enables comprehensive remote management of source devices from the display location.
Extended Control Capabilities
Three USB ports, IR pass-through, and dual RS-232 adapters provide multiple control pathways for managing media players, computers, or other source equipment remotely.
- USB for keyboard/mouse extension
- IR for remote control signals
- RS-232 for serial device control
Installation Flexibility
The compact design supports rack mounting with standard hardware, pole mounting for overhead installations, or wall mounting for space-constrained environments.
- Standard 19" rack compatible
- Multiple orientation options
- Minimal footprint
Deployment / Use Cases
The B127E-1A1-HH video extender is ideal for scenarios where HDMI source equipment must be located at a distance from displays while maintaining high-quality video signals. In corporate environments, it enables clean conference room installations with equipment housed in dedicated racks or closets rather than at the display location.
Digital signage deployments benefit from the extended distance capabilities, allowing media players to be centrally managed while displays are positioned throughout retail spaces, airports, or hospitality venues. The system also serves educational institutions for distance learning setups, control rooms for surveillance monitoring, and entertainment venues where equipment must be isolated from public areas.
Conference Room Solutions
Hide source equipment in equipment racks while extending HDMI signals to wall-mounted displays or projectors, maintaining clean room aesthetics with full 4K capability.
Digital Signage Networks
Centralize media players in server rooms and distribute signals to multiple displays throughout facilities using cost-effective Cat6 cable infrastructure.
What's in the Box
The complete package includes everything needed for installation and operation. Each system comes with comprehensive mounting hardware and international power adapters for global deployment flexibility.
Highlights
- Extends HDMI signals up to 328 feet (100 meters) over Category 6 cable
- Supports 4K UHD resolution at 3840 × 2160 with 60 Hz refresh rate
- Power over Cable technology eliminates separate receiver power requirements
- Includes USB, infrared, and RS-232 ports for remote source device control
- Compatible with latest HDMI standards including 4:4:4 chroma subsampling
- Transmitter features local HDMI output for source monitoring
- Rack-mountable, pole-mountable, and wall-mountable form factors
- Includes international power adapters for global deployment
- TAA compliant for government and educational procurement
- RoHS and REACH compliant for environmental responsibility
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | B127E-1A1-HH |
| Brand Name | Tripp Lite series |
| Product Model | B127E-1A1-HH |
| Product Name | B127E-1A1-HH Video Extender Transmitter/Receiver |
| Product Type | Video Extender Transmitter/Receiver |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Input Devices Supported | 2 |
| Number of Output Devices Supported | 1 |
| Maximum Operating Distance | 328 ft (99974.40 mm) |
| Video | |
| Graphics Modes | 4K |
| Maximum Video Resolution | 3840 x 2160 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI In | Yes |
| HDMI Out | Yes |
| USB | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of USB Ports | 3 |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 2 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 6 |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Transmitter Height | 5.04" (128.02 mm) |
| Transmitter Width | 3.94" (100.08 mm) |
| Transmitter Depth | 1.17" (29.72 mm) |
| Receiver Height | 5.04" (128.02 mm) |
| Receiver Width | 3.94" (100.08 mm) |
| Receiver Depth | 1.17" (29.72 mm) |
| Form Factor | Rack-mountable,Pole-mountable,Wall Mountable |
| Transmitter Weight (Approximate) | 12.32 oz (349.27 g) |
| Receiver Weight (Approximate) | 12.32 oz (349.27 g) |
| Miscellaneous | |
| Package Contents | 1 x Transmitter 1 x Receiver IR-OUT cable IR-IN cable 2 x RS-232 Adapters External Power Supply (Input: 100-240V, 50/60 Hz, 0.6A; Output: 24V 1A) 4 x International Plug Adapters (North America, Europe, U.K., Australia) Mounting Hardware Owner's Manual |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 1 Year |
User Manual
FAQ
What is the maximum distance this video extender can transmit 4K signals?
The Tripp Lite B127E-1A1-HH extends HDMI signals up to 328 feet (approximately 100 meters) using standard Category 6 Ethernet cable. This distance supports full 4K UHD resolution at 3840 × 2160 without signal degradation when using quality Cat6 cable meeting specification requirements.
Does this system require separate power at both transmitter and receiver locations?
No, the system utilizes Power over Cable (PoC) technology that delivers both signal and power to the receiver through the same Cat6 cable. Only the transmitter requires connection to the included power supply, simplifying installation by eliminating the need for electrical outlets at the display location.
What control options are available for managing source devices remotely?
The extender provides comprehensive control through three USB ports for keyboard/mouse extension, infrared pass-through for remote control signals, and two RS-232 adapters for serial device control. These interfaces allow operators to manage media players, computers, or other source equipment from the display location.
What mounting options are supported by the transmitter and receiver units?
Both units support rack mounting using standard 19" rack hardware, pole mounting for overhead installations, and wall mounting for space-constrained environments. The compact dimensions (5.04"H × 3.94"W × 1.17"D) and included mounting hardware provide flexibility for various installation scenarios.
Is this video extender compatible with international power standards?
Yes, the system includes four international plug adapters for North America, Europe, the United Kingdom, and Australia. The external power supply accepts 100-240V input at 50/60 Hz, making it suitable for global deployments without requiring additional power conversion equipment.
What compliance certifications does this product carry?
The B127E-1A1-HH is TAA compliant for government and educational procurement, and meets environmental standards including RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization and Restriction of Chemicals). The product carries a 1-year limited warranty and is manufactured in Taiwan.
