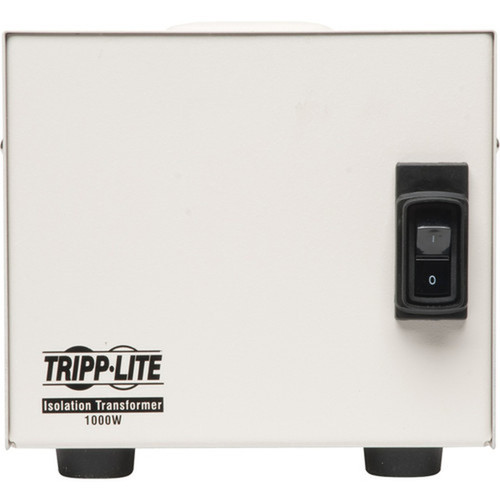

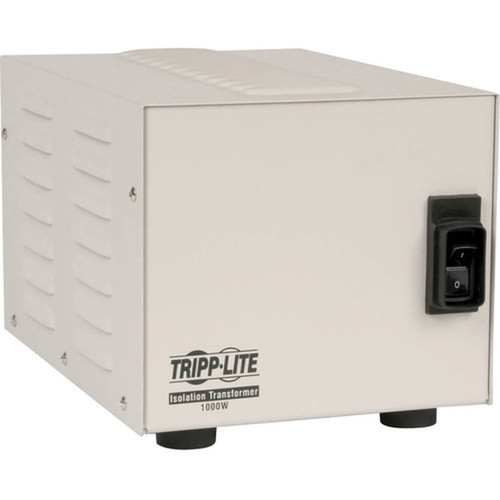

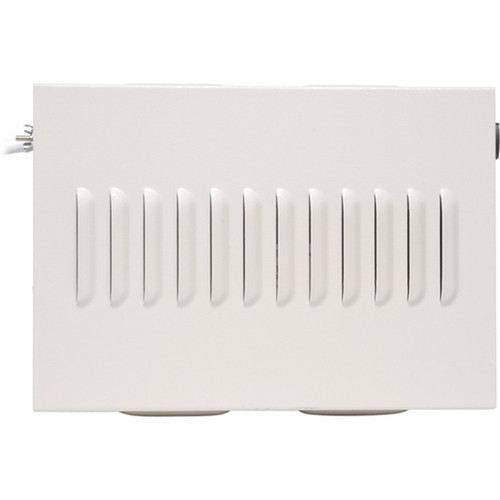

Tripp Lite by Eaton IS1000HG Tripp Lite Medical-Grade Isolation Transformer - 1 kVA - 4 NEMA 5-15R-HG Outlets - 680J Surge Suppression - 10-ft Cord
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The IS1000HG combines isolation transformer technology with surge suppression to deliver 680 joules of protection. It filters out line noise and provides galvanic isolation, reducing leakage to less than 100 microamps for enhanced safety. The unit maintains input and output voltage at 120 V AC, ensuring compatibility with standard North American power systems.
Its physical design features a compact footprint with dimensions of 7.25 inches in height and width, and 10.50 inches in depth, making it suitable for placement in tight spaces. The 36.80-pound weight reflects its solid construction, and the included instruction manual with warranty information supports proper setup and maintenance.
Relevant factors for this section include Plug/Connector Type, Receptacles, Input Voltage, Output Voltage. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The IS1000HG stands out with its medical-grade certification and comprehensive protection features. It isolates connected equipment from power line disturbances, filters electromagnetic and radio-frequency interference, and suppresses surges up to 680 joules. This triple-layer defense makes it ideal for safeguarding sensitive electronics in critical settings.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Hospital-Grade Safety, Regulatory Compliance.
Hospital-Grade Safety
Equipped with NEMA 5-15P-HG plugs and receptacles that meet rigorous hospital-grade standards for durability and electrical safety.
- Reduced leakage current
- Secure connection design
Regulatory Compliance
Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases and RoHS environmental standards.
- TAA compliant
- RoHS certified
Deployment / Use Cases
This isolation transformer is deployed in environments where power quality directly impacts equipment performance and safety. It is commonly used in medical facilities, laboratories, and industrial settings to protect diagnostic machines, monitoring devices, and precision instruments from electrical noise and surges.
In office and data center applications, the IS1000HG safeguards servers, networking gear, and telecommunications equipment. Its 1 kVA capacity supports multiple devices simultaneously, while the four outlets provide convenient connectivity for workstations or small server racks.
Relevant factors for this section include Plug/Connector Type, Receptacles, Input Voltage, Output Voltage. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
The IS1000HG features a tower-style form factor with a square base and vertical orientation. Its dimensions of 7.25 by 7.25 by 10.50 inches allow it to fit on shelves, under desks, or in equipment closets. The 36.80-pound weight ensures stability, and the 10-ft power cord reduces the need for extension cords in most setups.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 7.25" (184.15 mm), 7.25" (184.15 mm), 10.50" (266.70 mm), 36.80 lb (16692.20 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 7.25" (184.15 mm)
- Depth
- 10.50" (266.70 mm)
- Height
- 7.25" (184.15 mm)
- Weight
- 36.80 lb (16692.20 g)
- Length
- 10 ft (3.05 m)
What's in the Box
The package includes the isolation transformer unit and an instruction manual with warranty information.
Package contents include Isolation Transformer - Medical Grade Line Noise Reduction and Spike Suppression Instruction Manual with Warranty Information, Isolation Transformer - Medical Grade Line Noise Reduction and Spike Suppression. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Medical-grade isolation transformer with 1 kVA power handling
- Complete line isolation, noise filtering, and 680J surge suppression
- Four hospital-grade NEMA 5-15R-HG outlets for secure connections
- 10-ft power cord provides flexible placement options
- Input and output voltage maintained at 120 V AC
- Leakage current less than 100 microamps for enhanced safety
- TAA compliant for GSA Schedule purchases
- RoHS certified and environmentally friendly
- Two-year limited warranty for reliable long-term use
- Compact tower design with dimensions of 7.25" H x 7.25" W x 10.50" D
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | IS1000HG |
| Brand Name | Tripp Lite series |
| Product Model | IS1000HG |
| Product Name | Isolation Transformer - Medical Grade Line Noise Reduction and Spike Suppression |
| Product Type | Surge Suppressor/Protector |
| Technical Information | |
| Plug/Connector Type | NEMA 5-15P-HG |
| Receptacles | 4 x NEMA 5-15R-HG |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Power Handling | 1 kVA |
| Surge Energy Rating | 680 J |
| Physical Characteristics | |
| Power Cord/Cable Length | 10 ft (3.05 m) |
| Height | 7.25" (184.15 mm) |
| Width | 7.25" (184.15 mm) |
| Depth | 10.50" (266.70 mm) |
| Weight (Approximate) | 36.80 lb (16692.20 g) |
| Miscellaneous | |
| Package Contents | Isolation Transformer - Medical Grade Line Noise Reduction and Spike Suppression Instruction Manual with Warranty Information |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the power handling capacity of the Tripp Lite IS1000HG?
The Tripp Lite IS1000HG handles up to 1 kVA of power. This capacity supports multiple devices simultaneously, making it suitable for protecting sensitive equipment in medical, laboratory, or office environments where clean, stable power is essential.
How many outlets does this isolation transformer have?
It includes four NEMA 5-15R-HG hospital-grade receptacles. These outlets provide secure, compliant connections for standard North American plugs, allowing you to power several pieces of equipment from a single protected source.
What type of surge protection does the IS1000HG offer?
The unit provides 680 joules of surge suppression. This protects connected devices from voltage spikes and transient disturbances, complementing its line isolation and noise filtering to deliver comprehensive electrical protection.
Is the IS1000HG compliant with TAA requirements?
Yes, the IS1000HG is TAA compliant, meeting the Federal Trade Agreements Act standards. This makes it eligible for GSA Schedule purchases, which is important for government, educational, and institutional buyers who require compliant products.
What are the dimensions and weight of this unit?
It measures 7.25 inches in height, 7.25 inches in width, and 10.50 inches in depth, with an approximate weight of 36.80 pounds. This compact tower design fits easily in various spaces, and the substantial weight ensures stability during use.
What warranty comes with the Tripp Lite IS1000HG?
The isolation transformer is backed by a two-year limited warranty. This covers defects in materials and workmanship, providing confidence in its durability and performance for critical power protection applications.
