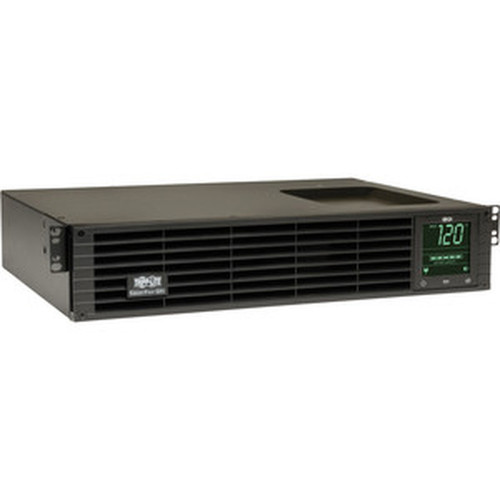

Tripp Lite by Eaton SMART1500RM2U SmartPro 1500RM2U UPS - 1500VA/1.35kW Line-Interactive - 2U Rack-Mount - 8 NEMA Outlets - SNMP/Webcard Management
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview
The Tripp Lite by Eaton SmartPro 1500RM2U is a line-interactive UPS engineered for rack-mount deployment in server rooms, network closets, and data center environments. This unit provides 1500VA/1.35kW of reliable power protection, delivering clean sine wave output to safeguard connected equipment from outages, surges, and voltage irregularities. Its line-interactive topology corrects under- and overvoltages within an input range of 83V to 147V, maintaining stable 120V AC output with a transfer time of just 4 milliseconds.

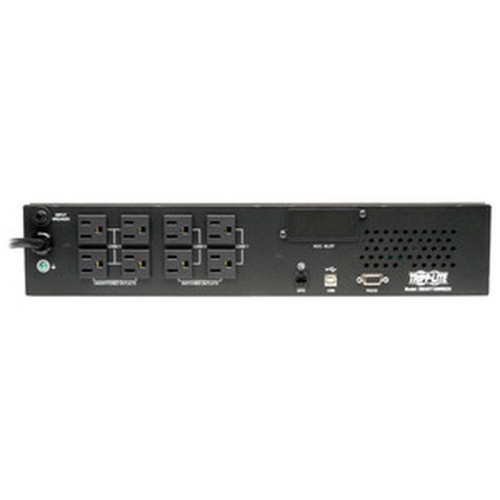

Designed for 2U rack installation, the UPS features eight NEMA 5-15R outlets, four of which are network-switchable for remote power control. An integrated SNMP/Webcard interface enables comprehensive network power management, while the interactive LCD screen offers real-time status monitoring. The hot-swappable, valve-regulated lead-acid battery supports runtime of up to 13 minutes at half load and can be replaced without system downtime. The unit includes PowerAlert unattended shutdown and monitoring software for automated protection of connected systems.
This UPS is built for standard 19-inch rack mounting with a 2U height (3.5 inches), 17.5-inch width, and 13.45-inch depth. The 46-pound weight includes the internal battery, and the unit features a 10-foot power cord with NEMA 5-15P plug. Front-panel indicators and controls are easily accessible when rack-mounted, and the design supports operating temperatures up to 104°F (40°C) with sound emission of 45 dB(A). The package includes all necessary mounting hardware and cabling for immediate deployment.
Technical Overview
The SmartPro 1500RM2U delivers 1.50 kVA (1500VA) and 1.35 kW of power capacity, supporting critical loads in rack environments. The line-interactive design provides efficient voltage correction without the full conversion losses of double-conversion systems, making it ideal for environments where power quality is generally stable but requires backup during outages. The 570-joule surge energy rating offers additional protection against transient spikes, while overload protection safeguards connected equipment.
Battery performance is central to the design, with a 36V DC system supporting runtime of 4.5 minutes at full load and 13 minutes at half load. The hot-swappable battery module has a typical recharge time of four hours and a six-year design life, ensuring long-term reliability. Network management via SNMP/Webcard allows for remote monitoring, configuration, and graceful shutdown of connected systems. USB and DB9 monitoring ports enable local management, complementing the network interface.
The UPS operates within a wide environmental range, supporting maximum operating elevations up to 6561.68 feet and storage temperatures from 5°F to 122°F. Thermal dissipation is rated at 267 BTU/h, and the unit complies with RoHS environmental standards. The 3-year limited warranty provides coverage for the UPS and its components, with the battery covered under its separate 6-year design life specification.
Key Product Advantages
The SmartPro 1500RM2U combines robust power protection with enterprise-grade management features in a compact 2U rack footprint. Its line-interactive topology ensures efficient voltage correction without the full conversion losses of double-conversion systems, making it ideal for environments where power quality is generally stable but requires backup during outages.
Rack-Optimized Design
The 2U form factor fits standard 19-inch racks, with mounting hardware included for four-post installation. The 3.5-inch height and 17.5-inch width match common rack dimensions, while the 46-pound weight ensures stability without excessive load.
Comprehensive Monitoring
An interactive LCD screen displays real-time status, while LED indicators provide at-a-glance alerts for battery, overload, and low-battery conditions. USB and DB9 monitoring ports enable local management, complementing the SNMP/Webcard network interface.
Deployment / Use Cases
This UPS is engineered for rack-mounted IT infrastructure, providing backup power for servers, network switches, storage arrays, and telecommunications equipment in small to medium-sized data centers. The 1500VA capacity supports multiple devices simultaneously, while the network-switchable outlets allow for remote power cycling of individual pieces of equipment.
Typical deployments include server rooms where space is at a premium, network closets supporting edge computing, and broadcast environments requiring clean power for audio/video gear. The unit's ability to correct voltage irregularities makes it suitable for locations with unstable grid power, while the hot-swappable battery ensures maintenance can be performed without interrupting protected loads.
Server Room Backup
Provides runtime for one or two rack servers and associated networking gear during short outages, allowing for graceful shutdown or continued operation.
Network Infrastructure Protection
Safeguards switches, routers, and firewalls from power disturbances, with network management enabling remote monitoring and control.
Physical Profile
The UPS is built for standard 19-inch rack mounting with a 2U height (3.5 inches), 17.5-inch width, and 13.45-inch depth. The 46-pound weight includes the internal battery, and the unit features a 10-foot power cord with NEMA 5-15P plug. Front-panel indicators and controls are easily accessible when rack-mounted, and the design supports operating temperatures up to 104°F (40°C) with sound emission of 45 dB(A).
- Width
- 17.50" (444.50 mm)
- Depth
- 13.45" (341.63 mm)
- Height
- 3.50" (88.90 mm)
- Weight
- 45 dB(A)
- Length
- 10 ft (3.05 m)
What's in the Box
The package includes the SmartPro 1500RM2U UPS unit, mounting hardware for four-post rack installation, cabling for USB and DB9 monitoring and EPO switching, PowerAlert unattended shutdown and monitoring software, and warranty information.
Highlights
- 1500VA/1.35kW line-interactive UPS in 2U rack-mount form factor
- 8 NEMA 5-15R outlets with 4 network-switchable for remote management
- SNMP/Webcard network interface for comprehensive power monitoring
- Interactive LCD screen with real-time status and configuration
- Runtime of 13 minutes at half load, 4.5 minutes at full load
- Hot-swappable valve-regulated lead-acid battery with 6-year life
- 4-millisecond transfer time with sine wave output
- Corrects under- and overvoltages from 83V to 147V
- Includes PowerAlert software for unattended shutdown
- 3-year limited warranty with RoHS compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SMART1500RM2U |
| Brand Name | Tripp Lite series |
| Product Line | SmartPro |
| Product Name | SmartPro 1500RM2U UPS |
| Packaged Quantity | 1 Each |
| Product Type | Line-interactive UPS |
| Technical Information | |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 8 x NEMA 5-15R |
| Overload Protection | Yes |
| Cord Length | 10 ft (3.05 m) |
| Transfer Time | 4 ms |
| Power Description | |
| Load Capacity (VA) | 1.50 kVA |
| Load Capacity (Watt) | 1.35 kW |
| Input Voltage | 110 V AC |
| Output Voltage | 120 V AC |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 570 J |
| Management | |
| Network Management | SNMP/Webcard |
| Alarm | On Battery,Overload,Low Battery |
| Controls/Indicators | |
| Status Indicators | LED Indicator |
| Interfaces/Ports | |
| USB | Yes |
| Battery Information | |
| DC System Voltage | 36 V DC |
| Battery Characteristics | Valve-regulated |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 4.50 Minute |
| Backup/Run Time (Half Load) | 13 Minute |
| Battery Life | 6 Year |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 4 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Maximum Operating Elevation | 6561.68 ft (2000000 mm) |
| Storage Temperature | 5°F (-15°C) - 122°F (50°C) |
| Storage Relative Humidity | 0% - 95% |
| Maximum Operating Temperature | 104°F (40°C) |
| Sound Emission (A-Weighted) | 45 dB(A) |
| Thermal Dissipation | 267 BTU/h |
| Physical Characteristics | |
| Height | 3.50" (88.90 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 13.45" (341.63 mm) |
| Rack Height | 2U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 46 lb (20865.25 g) |
| Miscellaneous | |
| Package Contents | SmartPro 1500RM2U UPS Mounting hardware for 4 post rackmount installation Cabling for USB & DB9 monitoring and EPO switching PowerAlert unattended shutdown and UPS/Power monitoring software Warranty information |
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
