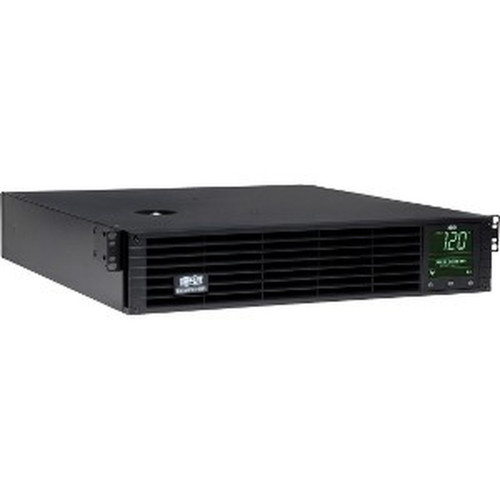

Tripp Lite by Eaton SMART2200RMXLN SmartPro 1950VA/1950W Line-Interactive UPS - 2U Rack/Tower - 4 Min Full Load Runtime - Pure Sine Wave - 120V AC
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview
The Tripp Lite by Eaton SmartPro SMART2200RMXLN is a line-interactive UPS engineered for protecting critical IT infrastructure with 1950VA/1950W capacity. This unit delivers reliable power backup through pure sine wave output, ensuring compatibility with sensitive server, storage, and networking equipment that requires clean, stable power. Its 2U rack/tower form factor provides flexible installation options for data centers, server rooms, and network closets where space optimization is essential.
Equipped with comprehensive management capabilities including SNMP/web support and an included WEBCARDLXE network card, this UPS enables 24/7 remote monitoring and control from any location. The front-panel LCD displays detailed power information across ten selectable screens, offering real-time visibility into UPS status and site power conditions. With unity power factor design, it maximizes available power at each rating, while ENERGY STAR 2.0 certification ensures efficient operation that reduces electricity costs and environmental impact.
The UPS features six NEMA 5-20R and one NEMA L5-20R output receptacles, accommodating various equipment types with its comprehensive outlet configuration. Its NEMA 5-20P plug connects directly to standard 120V AC power sources, while the adjustable output voltage supports equipment requiring 100V to 120V AC. This combination of power capacity, management features, and installation flexibility makes it suitable for protecting data storage systems, server racks, network switches, and other IT equipment in business environments where uptime is critical.
Technical Overview
This line-interactive UPS delivers 1.95 kVA/1.95 kW capacity with unity power factor, providing maximum usable power for connected equipment. The pure sine wave output ensures clean power delivery compatible with active PFC power supplies found in modern servers and storage devices, preventing potential damage to sensitive electronics. Electrical specifications include 120V AC input with adjustable output voltages from 100V to 120V AC, maintaining 60Hz output frequency with 4ms transfer time during power events to ensure uninterrupted operation.
The battery system operates at 72V DC with valve-regulated lead-acid chemistry, featuring hot-swappable and user-replaceable batteries that minimize downtime during maintenance. Runtime performance delivers 4 minutes at full load and extends to 12 minutes at half load, providing sufficient time for safe shutdown procedures during power outages. The typical 4.5-hour recharge time ensures rapid recovery, while surge protection rated at 380 joules and overload protection safeguard connected equipment from power anomalies and excessive demands.
Management interfaces include USB, serial, and EPO ports alongside the SNMP/web capabilities enabled by the included WEBCARDLXE network card. The comprehensive alarm system monitors for remote shutdown, UPS startup, power failure, overload, UPS fault, and low battery conditions, providing administrators with timely notifications. Environmental specifications support operation from 32°F to 104°F with storage capabilities from 5°F to 122°F, while maximum operating elevation reaches 10,000 feet for deployment in various geographical conditions.
Key Product Advantages
The SmartPro SMART2200RMXLN combines robust power protection with advanced management features in a versatile 2U form factor. Its included WEBCARDLXE network interface card provides enterprise-grade remote monitoring capabilities without additional purchases, while the comprehensive alarm system notifies administrators of power failures, overload conditions, low battery status, and other critical events.
Comprehensive Power Protection
Protects connected equipment against blackouts, brownouts, transient surges, and line noise while maintaining operation during outages for safe shutdown procedures.
- 4-minute runtime at full load
- Pure sine wave output
- Adjustable output voltage
Advanced Management Capabilities
SNMP/web management with included network card enables 24/7 remote monitoring and control from any location.
- 2-line LCD with 10 selectable screens
- Multiple interface ports
- Comprehensive alarm system
Deployment / Use Cases
This UPS is engineered for protecting critical IT infrastructure in business environments where uptime is essential. The 1950VA capacity and rack/tower design make it ideal for server rooms, network closets, and data center applications where space optimization and reliable power are paramount.
Typical deployments include supporting data storage systems, server racks, network switches, and other IT equipment requiring clean, uninterrupted power. The flexible form factor allows installation in standard 19-inch racks or as a standalone tower, while the comprehensive outlet configuration with six NEMA 5-20R and one NEMA L5-20R receptacles accommodates various equipment types.
Server Room Protection
Provides backup power for critical servers during outages, allowing time for proper shutdown procedures and data preservation.
Network Infrastructure Support
Maintains operation of switches, routers, and other networking equipment to ensure continuous connectivity during power events.
Physical Profile
The UPS measures 3.39" (86 mm) in height, 17.20" (437 mm) in width, and 23.70" (602 mm) in depth, occupying 2U of rack space in standard 19-inch racks. Weighing 65.30 lb, it features a robust construction suitable for data center environments. The rack/tower design includes all necessary mounting hardware and tower support stands for flexible installation options.
- Width
- 17.20" (437 mm)
- Depth
- 23.70" (602 mm)
- Height
- 3.39" (86 mm)
- Weight
- 65.30 lb (29619.58 g)
What's in the Box
The package includes all components necessary for immediate deployment and management of the UPS system.
Highlights
- 1950VA/1950W line-interactive UPS with pure sine wave output
- 4-minute runtime at full load, 12 minutes at half load
- 2U rack/tower form factor with flexible installation options
- Includes WEBCARDLXE network card for SNMP/web management
- Front-panel LCD with 10 selectable power information screens
- Six NEMA 5-20R and one NEMA L5-20R output receptacles
- Hot-swappable, user-replaceable valve-regulated lead-acid batteries
- ENERGY STAR 2.0 certified for energy efficiency
- 3-year limited warranty with TAA compliance
- PowerAlert software included for system management
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SMART2200RMXLN |
| Brand Name | Tripp Lite series |
| Product Line | SmartPro |
| Product Series | SmartPro |
| Product Model | SMART2200RMXLN |
| Product Name | SmartPro SMART2200RMXLN 1950VA Rack/Tower UPS |
| Product Type | Line-interactive UPS |
| Technical Information | |

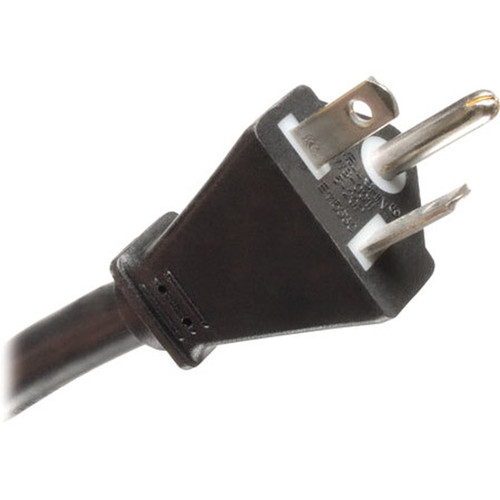

| Plug/Connector Type | NEMA 5-20P |
| Receptacle Type | NEMA L5-20R,NEMA 5-20R |
| Receptacle Detail | 6 x NEMA 5-20R,1 x NEMA L5-20R |
| Overload Protection | Yes |
| Transfer Time | 4 ms |
| Phase | Single Phase |
| Application/Usage | Data Storage,Server,Switch,IT Equipment |
| Power Description | |
| Load Capacity (VA) | 1.95 kVA |
| Load Capacity (Watt) | 1.95 kW |
| Input Voltage | 120 V AC |
| Output Voltage | 100 V AC,110 V AC,115 V AC,120 V AC |
| Output Frequency | 60 Hz |
| Waveform Type | Pure Sine Wave |
| Surge Energy Rating | 380 J |
| Output Power Factor | 1 |
| Display & Graphics | |
| Display | LCD |
| Management | |
| Network Management | SNMP/Web |
| Alarm | Remote Shutdown,UPS StartUp,Power Failure,Overload,UPS Fault,Low Battery |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Information | |
| DC System Voltage | 72 V DC |
| Battery Characteristics | Valve-regulated |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 4 Minute |
| Backup/Run Time (Half Load) | 12 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 4.50 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Maximum Storage Elevation | 32808 ft (9999878.40 mm) |
| Storage Temperature | 5°F (-15°C) - 122°F (50°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Physical Characteristics | |
| Height | 3.39" (86 mm) |
| Width | 17.20" (437 mm) |
| Depth | 23.70" (602 mm) |
| Rack Height | 2U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 65.30 lb (29619.58 g) |
| Miscellaneous | |
| Package Contents | SmartPro SMART2200RMXLN 1950VA Rack/Tower UPS WEBCARDLXE Network Management Card USB Cable DB9 Cable Rack-mounting Hardware Tower support Stands Safety Instructions Advanced User Guide |
| Software Included | PowerAlert Software |
| Country of Origin | Philippines |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What processor does this product use?
Tripp Lite series SmartPro SMART2200RMXLN 1950VA Rack/Tower UPS - 2U Rack/Tower - 4.50 Hour Recharge - 4 Minute Stand-by - 120 V AC - (SMART2200RMXLN) is positioned around the processor configuration shown in the , giving buyers a clearer view of expected performance for business workloads and everyday deployment needs.
How much memory is installed?
The installed memory configuration for Tripp Lite series SmartPro SMART2200RMXLN 1950VA Rack/Tower UPS - 2U Rack/Tower - 4.50 Hour Recharge - 4 Minute Stand-by - 120 V AC - (SMART2200RMXLN) should be reviewed alongside your workload needs, especially if you are planning multitasking, heavier applications, or longer lifecycle deployment use.
What storage is included?
The system includes 32808 ft (9999878.40 mm) of storage for applications, files, and everyday business data.
What display size or resolution is listed?
Display-related specifications help position Tripp Lite series SmartPro SMART2200RMXLN 1950VA Rack/Tower UPS - 2U Rack/Tower - 4.50 Hour Recharge - 4 Minute Stand-by - 120 V AC - (SMART2200RMXLN) for the kind of viewing experience, readability, and workspace fit buyers may expect in business it/ups & power backup/general & industrial ups deployments.
What connectivity options are available?
Connectivity details help confirm how Tripp Lite series SmartPro SMART2200RMXLN 1950VA Rack/Tower UPS - 2U Rack/Tower - 4.50 Hour Recharge - 4 Minute Stand-by - 120 V AC - (SMART2200RMXLN) can integrate with your network, accessories, and surrounding peripherals before rollout or replacement planning.
What operating system or platform is included?
Tripp Lite series SmartPro SMART2200RMXLN 1950VA Rack/Tower UPS - 2U Rack/Tower - 4.50 Hour Recharge - 4 Minute Stand-by - 120 V AC - (SMART2200RMXLN) is described for practical deployment use, and the specification set helps buyers confirm fit, compatibility, and expected day-to-day operation.
