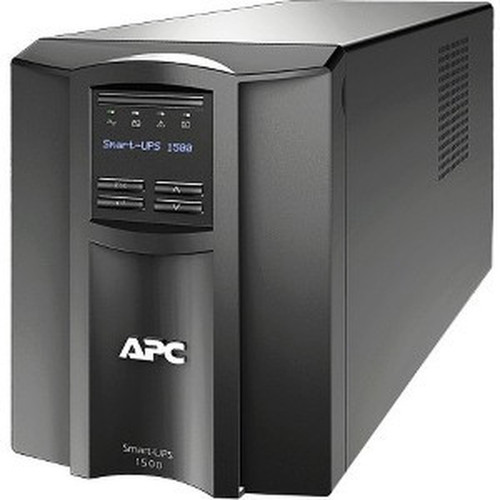

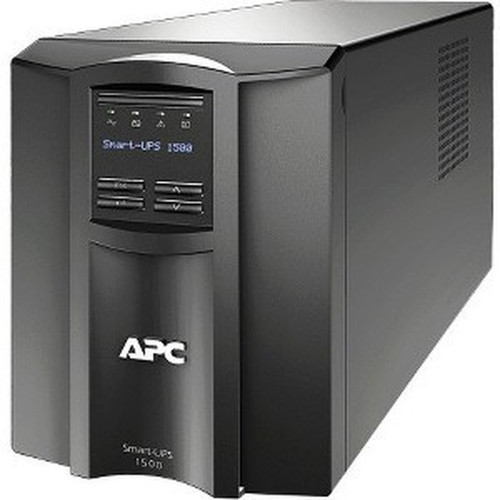

Tripp Lite by Eaton SMT1500C APC Smart-UPS 1500VA Line Interactive Tower UPS - 1440VA/1000W - 120V - 8 NEMA 5-15R Outlets - SmartConnect - AVR - LCD
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview
The APC Smart-UPS 1500VA LCD 120V tower UPS delivers reliable line-interactive power protection for critical business infrastructure. This unit provides 1440VA/1000W of pure sine wave backup power with automatic voltage regulation to correct utility voltage fluctuations before switching to battery power.
Designed for tower deployment in server rooms, network closets, and retail environments, this UPS features eight NEMA 5-15R outlets for comprehensive device protection. The integrated LCD provides real-time status monitoring, while SmartConnect enables cloud-based remote power management without additional management cards.
The unit operates on standard 120V circuits with a wide input voltage range of 82-144V AC, allowing it to handle brownouts and overvoltages without immediate battery engagement. With a 6-millisecond transfer time and pure sine wave output, it maintains compatibility with sensitive server and networking equipment that uses active PFC power supplies.
This UPS includes PowerChute Serial Edition software for graceful shutdown of connected systems, configurable alarms for low battery and power events, and a hot-swappable lead-acid battery that provides 7 minutes of runtime at full load. The black tower form factor measures 8.62 inches high, 6.73 inches wide, and 17.28 inches deep, with a weight of 54.23 pounds for stable floor or shelf placement.
Technical Overview
This line-interactive UPS maintains 120V AC pure sine wave output with a 6-millisecond transfer time, ensuring compatibility with sensitive server and networking equipment. The unit features wide input voltage range (82-144V AC) with automatic voltage regulation that corrects brownouts and overvoltages without draining battery power.
Power management capabilities include SmartConnect Ethernet port for cloud-based monitoring, configurable alarms for low battery and power events, and PowerChute Serial Edition software for graceful shutdown of connected systems. The lead-acid battery provides 7 minutes of runtime at full load and can be hot-swapped without powering down protected equipment.
The UPS delivers 1440VA (1.44 kVA) of apparent power and 1000W (1 kW) of real power capacity, with all eight NEMA 5-15R outlets providing both battery backup and surge protection. It operates on single-phase power with 60Hz input and output frequency, and includes 680 joules of surge energy protection for connected devices.
Environmental specifications include operation up to 104°F (40°C) maximum temperature, 45 dB(A) sound emission under normal conditions, and 225 BTU/hour thermal dissipation. The unit is ENERGY STAR 2.0 certified and RoHS compliant, with a 3-year UPS warranty and 2-year battery warranty for comprehensive protection.
Key Product Advantages
Intelligent Power Management
SmartConnect enables remote monitoring and management via cloud interface, while PowerChute software provides automated graceful shutdown for connected servers and network devices.
- Cloud-based monitoring without additional cards
- Configurable alarm notifications
- Serial and USB connectivity options
Reliable Power Protection
Automatic voltage regulation corrects utility voltage fluctuations, while pure sine wave output ensures compatibility with active PFC power supplies found in modern servers and networking equipment.
- AVR corrects brownouts and overvoltages
- Pure sine wave output
- 680-joule surge protection
Maintenance-Friendly Design
Hot-swappable battery design allows replacement without interrupting power to connected equipment, while the LCD provides clear status information and diagnostic data.
- User-replaceable hot-swappable battery
- 5-year battery life expectancy
- LCD with runtime and load information
Deployment / Use Cases
This 1500VA tower UPS is engineered for small to medium business environments requiring reliable power protection for critical infrastructure. The eight-outlet configuration supports comprehensive device protection in concentrated installations.
Typical deployments include server rooms supporting single or multiple rack-mounted servers, network closets protecting switches and routers, retail point-of-sale systems requiring uninterrupted operation, and VoIP telephone systems maintaining communication during power events.
Relevant product facts for this section include Plug/Connector Type: NEMA 5-15P, Receptacle Type: NEMA 5-15P, Receptacle Detail: 8 x NEMA 5-15R, Load Capacity (VA): 1.44 kVA. When those details are considered together, they give buyers a clearer picture of how the product is equipped, how it connects, and what kind of day-to-day role it is meant to support.
Server Room Protection
Provides backup power for rack-mounted servers, storage arrays, and network equipment in small to medium server environments.
Network Infrastructure
Protects switches, routers, and network hubs in wiring closets and telecommunications rooms.
Retail & Point of Sale
Ensures uninterrupted operation of POS terminals, receipt printers, and payment processing systems.
Physical Profile
The tower form factor measures 8.62 inches high, 6.73 inches wide, and 17.28 inches deep, with a weight of 54.23 pounds. The black finish integrates professionally into office and server room environments.
Designed for floor or shelf placement, the unit features a 6-foot NEMA 5-15P input cord and operates at 45 dB(A) under normal conditions. Thermal dissipation of 225 BTU/hour ensures reliable operation within the specified 104°F maximum operating temperature.
- Width
- 6.73" (171 mm)
- Depth
- 17.28" (439 mm)
- Height
- 8.62" (219 mm)
- Weight
- 45 dB(A)
- Length
- 6 ft (1.83 m)
What's in the Box
The package includes everything needed for immediate deployment and management of the UPS system.
Highlights
- 1440VA/1000W line interactive pure sine wave tower UPS
- 8 NEMA 5-15R battery and surge protected outlets
- SmartConnect cloud-based remote power monitoring
- Automatic Voltage Regulation corrects utility voltage
- Pure sine wave output for server and network equipment
- Hot-swappable user-replaceable battery
- LCD display with runtime and status information
- PowerChute Serial Edition software for graceful shutdown
- 3-year UPS warranty with 2-year battery warranty
- ENERGY STAR 2.0 certified for energy efficiency
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SMT1500C |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS |
| Product Model | SMT1500C |
| Product Name | Smart-UPS 1500VA LCD 120V with SmartConnect |
| Packaged Quantity | 1 Each |
| Product Type | Line-interactive UPS |
| Technical Information | |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15P |
| Receptacle Detail | 8 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 8 |
| Cord Length | 6 ft (1.83 m) |
| Transfer Time | 6 ms |
| Phase | Single Phase |
| Application/Usage | Server,POS Terminal,Router,Switch,Network Hub,Network Device |
| Power Description | |
| Load Capacity (VA) | 1.44 kVA |
| Load Capacity (Watt) | 1 kW |
| Input Voltage | 120 V |
| Input Voltage Range | 82 V AC - 144 V AC,75 V AC - 154 V AC |
| Output Voltage | 120 V AC |
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 680 J |
| Management | |
| Network Management | SmartConnect |
| Alarm | Low Battery,Configurable Delay |
| Controls/Indicators | |
| Status Indicators | LCD Status |
| Battery Information | |
| Number of Batteries | 1 |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 7 Minute |
| Battery Life | 5 Year |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 3 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Maximum Storage Elevation | 50000 ft (15240000 mm) |
| Storage Temperature | 41°F (5°C) - 235.4°F (113°C) |
| Storage Relative Humidity | 0% - 95% |
| Maximum Operating Temperature | 104°F (40°C) |
| Sound Emission (A-Weighted) | 45 dB(A) |
| Thermal Dissipation | 225 BTU/h |
| Physical Characteristics | |
| Product Color | Black |
| Height | 8.62" (219 mm) |
| Width | 6.73" (171 mm) |
| Depth | 17.28" (439 mm) |
| Form Factor | Tower |
| Weight (Approximate) | 54.23 lb (24598.31 g) |
| Miscellaneous | |
| Package Contents | Smart-UPS 1500VA LCD 120V with SmartConnect Installation guide USB cable |
| Software Included | Powerchute Serial Edition |
| Energy Star | Yes |
| Country of Origin | Vietnam |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | ENERGY STAR 2.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | UPS: 36 month(s)|Battery: 24 month(s) |
User Manual
FAQ
What is the power capacity of this UPS?
This APC Smart-UPS delivers 1440VA (1.44 kVA) of apparent power and 1000W (1 kW) of real power capacity. This line-interactive tower UPS provides sufficient backup power for servers, networking equipment, and point-of-sale systems in small to medium business environments.
How much runtime does this UPS provide at full load?
At full load, this UPS provides 7 minutes of battery backup runtime. The lead-acid battery is hot-swappable and typically recharges within 3 hours after a complete discharge, ensuring quick recovery for subsequent power events.
How many outlets does this UPS have?
This UPS features eight NEMA 5-15R outlets that provide both battery backup and surge protection. All eight outlets support connected devices during power events, making this unit suitable for protecting multiple servers, switches, routers, and POS terminals simultaneously.
What voltage does this UPS operate on?
This UPS operates on standard 120V circuits with an input voltage range of 82-144V AC. The automatic voltage regulation corrects brownouts and overvoltages within this range without switching to battery power, while maintaining 120V AC pure sine wave output to connected equipment.
Is this UPS designed for rack or tower deployment?
This UPS features a tower form factor designed for floor or shelf placement. Measuring 8.62 inches high, 6.73 inches wide, and 17.28 inches deep, the black tower integrates professionally into server rooms, network closets, and office environments where rack mounting isn't required.
What management and connectivity options are included?
This UPS includes SmartConnect for cloud-based remote monitoring via Ethernet, PowerChute Serial Edition software for graceful shutdown of connected systems, and both serial and USB connectivity options. The integrated LCD provides real-time status information, while configurable alarms notify users of low battery and power events.
