Tripp Lite by Eaton SU1500RTXLCD2U Tripp Lite SmartOnline 1500VA/1350W Double-Conversion UPS - 2U Rack/Tower Mountable - 6 Outlets - SNMP/USB
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This UPS employs double-conversion online topology, which continuously conditions incoming AC power to DC and back to clean AC, isolating connected loads from all grid anomalies. It supports input voltage of 110V AC and provides adjustable output voltages of 115V, 120V, 127V, or 110V AC to match regional standards or equipment requirements.
The unit includes both serial and USB ports for local management, plus SNMP capability for network monitoring and control via PowerAlert software. Its hot-swappable battery design allows for runtime expansion and maintenance without powering down connected systems.
Relevant factors for this section include Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA). When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The SmartOnline SU1500RTXLCD2U combines high power capacity with deployment flexibility, making it a versatile solution for protecting critical infrastructure. Its robust feature set addresses both immediate backup needs and long-term manageability.
Zero Transfer Time Protection
Double-conversion technology ensures seamless power continuity with no switching delay, safeguarding sensitive servers, networking gear, and storage systems from data loss or hardware damage during outages.
- Eliminates power gaps
- Conditions voltage irregularities
- Pure sine wave output
Flexible Mounting Options
The 2U form factor installs in standard 19-inch racks or stands upright as a tower, adapting to space-constrained server rooms or office environments without dedicated rack infrastructure.
- Includes 4-post rackmount kit
- Tower feet for standalone use
- 18.5" depth fits most racks
Comprehensive Management Suite
Built-in SNMP, USB, and serial interfaces enable remote monitoring, automated shutdowns, and runtime scheduling through Tripp Lite's PowerAlert software, reducing administrative overhead.
- Network-wide UPS visibility
- Configurable alerts
- Battery health reporting
Deployment / Use Cases

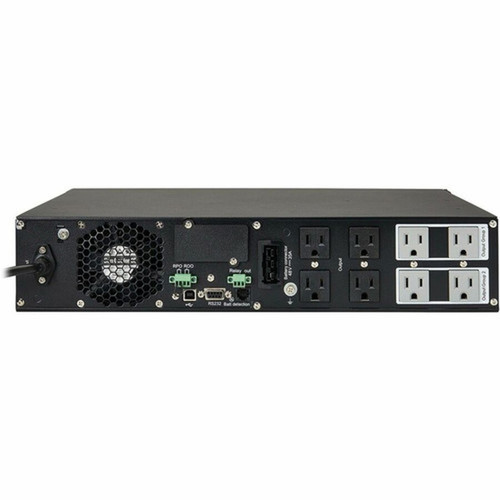

This UPS is engineered for environments where power quality directly impacts operational continuity. Its 1500VA capacity and six NEMA 5-15R outlets support multiple devices simultaneously, while the compact 2U footprint maximizes rack space efficiency.
Typical deployments include protecting small server stacks, network switches, routers, and security appliances in branch offices, retail locations, or educational facilities. The hot-swappable battery feature is particularly valuable in 24/7 operations where scheduled maintenance cannot interrupt service.
Server Room & Network Closet
Provides runtime for orderly shutdown of virtual hosts, NAS devices, and core networking equipment during extended outages, preventing data corruption and hardware stress.
Point-of-Sale & Retail Systems
Maintains transaction processing and inventory management systems during brief power dips or blackouts, avoiding sales disruption and loss of customer data.
Physical Profile

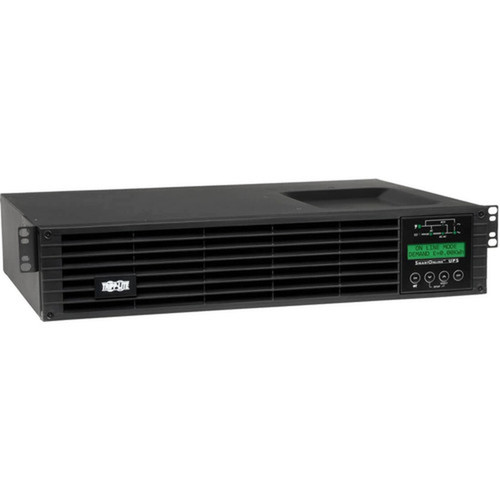

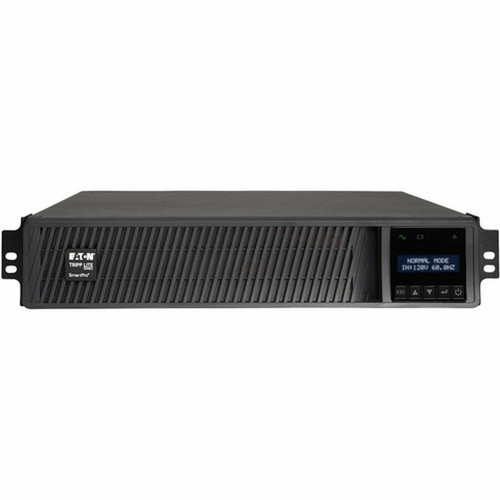

The UPS measures 3.5"H x 17.5"W x 18.5"D (88.9mm x 444.5mm x 469.9mm) and weighs 45.2 pounds. Its steel construction ensures durability in rack environments, while the included four-post rackmount kit simplifies secure installation. The front-panel LCD offers at-a-glance status monitoring without requiring software access.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 3.50" (88.90 mm), 17.50" (444.50 mm), 18.50" (469.90 mm), 45.20 lb (20502.38 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.50" (444.50 mm)
- Depth
- 18.50" (469.90 mm)
- Height
- 3.50" (88.90 mm)
- Weight
- 45.20 lb (20502.38 g)
What's in the Box
The package includes all components needed for immediate deployment in either rack or tower configuration.
Highlights
- 1500VA/1350W double-conversion online UPS with pure sine wave output
- 2U rack/tower mountable design with included four-post installation kit
- Six NEMA 5-15R outlets for connecting multiple devices
- Hot-swappable batteries support runtime expansion and maintenance
- Interactive LCD displays nine screens of UPS and site power data
- SNMP, USB, and serial management interfaces included
- PowerAlert software enables remote monitoring and automated shutdowns
- Zero transfer time ensures continuous power during outages
- Energy Star qualified for reduced operational costs
- RoHS compliant and backed by a 2-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SU1500RTXLCD2U |
| Brand Name | Tripp Lite series |
| Product Line | SmartOnline |
| Product Model | SU1500RTXLCD2U |
| Product Name | SmartOnline SU1500RTXLCD2U 1500VA Tower/Rack Mountable UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 6 x NEMA 5-15R |
| Transfer Time | 0 ns |
| Power Description | |
| Load Capacity (VA) | 1.50 kVA |
| Load Capacity (Watt) | 1.35 kW |
| Input Voltage | 110 V AC |
| Output Voltage | 127 V AC,110 V AC,120 V AC,115 V AC |
| Management | |
| Network Management | SNMP Manageable |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| Battery Information | |
| Backup/Run Time (Full Load) | 4.20 Minute |
| Backup/Run Time (Half Load) | 14 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 3 Hour |
| Physical Characteristics | |
| Height | 3.50" (88.90 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 18.50" (469.90 mm) |
| Rack Height | 2U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 45.20 lb (20502.38 g) |
| Miscellaneous | |
| Package Contents | SmartOnline SU1500RTXLCD2U 1500VA Tower/Rack Mountable UPS PowerAlert Software CD USB Cable Serial Cable EPO Cable 4 Post Rackmount Installation Kit Instruction Manual |
| Software Included | PowerAlert Software |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the power capacity of this UPS in VA and watts?
This Tripp Lite SmartOnline UPS provides 1500VA (1.5kVA) and 1350 watts of power capacity. This rating determines how much equipment it can support during an outage, making it suitable for small server stacks, networking gear, or multiple workstations.
How long will this UPS run at full and half load?
At full load (1350W), the UPS delivers approximately 4.2 minutes of runtime. At half load (675W), runtime extends to about 14 minutes. These figures allow for orderly system shutdowns or brief outage bridging, with expandable runtime options via additional battery modules.
Can this UPS be mounted in a server rack?
Yes, the SU1500RTXLCD2U is designed for both rack and tower mounting. It occupies 2U of rack space and includes a four-post installation kit. The 18.5-inch depth fits standard server racks, while removable tower feet allow standalone use in office environments.
What management interfaces are available for monitoring?
This UPS includes SNMP, USB, and serial ports for comprehensive management. The bundled PowerAlert software enables remote monitoring, configuration, and automated shutdowns across networks. The front-panel LCD also provides real-time status without software.
Are the batteries hot-swappable?
Yes, the batteries are hot-swappable, meaning you can replace or add external battery modules without powering down connected equipment. This feature supports runtime expansion and simplifies maintenance in 24/7 environments.
What type of power output does this UPS provide?
It delivers pure sine wave output through double-conversion online topology. This ensures compatibility with sensitive active PFC power supplies found in servers, networking equipment, and storage devices, while providing zero transfer time during grid failures.
