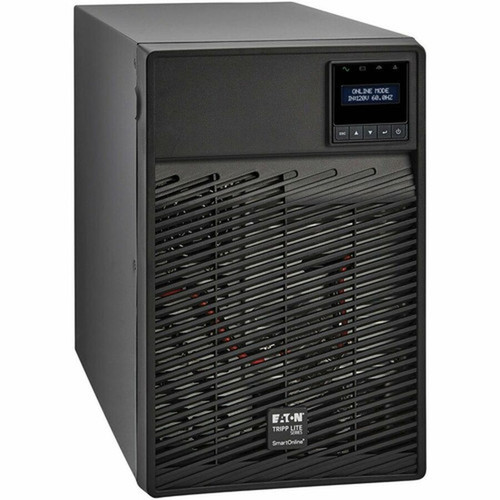

Tripp Lite by Eaton SU700XLCD SmartOnline 700VA/630W Double Conversion Online UPS - Tower - AVR - Pure Sine Wave - 6 Outlets - 5.9 Min Full Load
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview
The Tripp Lite by Eaton SmartOnline SU700XLCD is a 700VA/630W double conversion online UPS engineered for mission-critical equipment protection. This tower-form factor unit delivers pure sine wave output with automatic voltage regulation (AVR), ensuring clean, stable power for sensitive electronics during outages, brownouts, and surges. Its double conversion topology completely isolates connected equipment from raw utility power, offering the highest level of protection available in UPS systems.
With six NEMA 5-15R outlets—four of which support load management—this UPS provides flexible power distribution for servers, networking gear, medical devices, and other essential systems. The unit features a 24V DC battery system with valve-regulated lead-acid chemistry, supporting hot-swappable and user-replaceable batteries for minimal downtime. Management capabilities include SNMP/Web connectivity via an optional network card, USB and serial interfaces for local monitoring, and an EPO (Emergency Power Off) port for safety shutdowns.
Designed for environments where power quality directly impacts operations, the SU700XLCD is suitable for healthcare facilities protecting medical imaging equipment, educational institutions securing lab computers, government agencies maintaining continuous communications, and IT departments safeguarding servers and network infrastructure. Its compact tower design fits comfortably in office environments while providing substantial power protection, with Energy Star compliance for energy efficiency.
Technical Overview
This SmartOnline UPS operates on a 24V DC battery system with valve-regulated lead-acid chemistry, supporting hot-swappable and user-replaceable batteries for minimal downtime. The unit maintains 60Hz output frequency regardless of input fluctuations and features a 0.99 input power factor for efficient operation. Its pure sine wave output ensures compatibility with active PFC power supplies found in modern servers and network equipment, while AVR corrects brownouts and overvoltages without switching to battery, extending battery life.
Management capabilities include SNMP/Web connectivity via an optional network card, USB and serial interfaces for local monitoring, and an EPO (Emergency Power Off) port for safety shutdowns. The front-panel LCD display and four status-indicating LEDs provide clear system status at a glance. The unit includes EMI/RFI noise filtering to protect against line noise and a surge energy rating of 190 joules for additional protection against power spikes.
Key Product Advantages
The SU700XLCD combines enterprise-grade power protection with tower-form factor convenience, making it ideal for environments where rack mounting isn't practical but reliability cannot be compromised. The double conversion technology ensures zero transfer time during power events, while pure sine wave output guarantees compatibility with active PFC power supplies found in modern servers and network equipment.
Mission-Critical Runtime
Delivers up to 5.9 minutes of runtime at full 630W load, extending to 16.9 minutes at half load—sufficient for graceful shutdowns or bridging short outages.
- Full load: 5.90 minutes
- Half load: 16.90 minutes
- Hot-swappable battery support
Advanced Power Conditioning
AVR corrects brownouts and overvoltages without switching to battery, extending battery life. EMI/RFI filtering protects against line noise.
- Automatic Voltage Regulation
- EMI/RFI Noise Filter
- Pure Sine Wave Output
Deployment / Use Cases
This UPS is engineered for environments where power quality directly impacts operations, including healthcare facilities protecting medical imaging equipment, educational institutions securing lab computers, government agencies maintaining continuous communications, and IT departments safeguarding servers and network infrastructure.
The tower design makes it suitable for standalone installations under desks, in equipment closets, or alongside workstations where rack space is unavailable. With its 700VA capacity and six outlets, it can protect multiple devices simultaneously while providing managed shutdown capabilities for critical systems.
Healthcare Applications
Protects diagnostic equipment, patient monitoring systems, and electronic medical records infrastructure from power disturbances that could compromise patient care.
IT & Network Infrastructure
Safeguards servers, switches, routers, and storage systems, providing time for graceful shutdowns or continued operation during brief outages.
Physical Profile
The tower-form factor measures 9.93" H × 6.30" W × 13.94" D (252 × 160 × 354 mm) and weighs approximately 25.36 lb (11.5 kg). Its compact footprint fits comfortably in office environments while providing substantial power protection. The design includes ventilation for proper cooling and meets Energy Star requirements for energy efficiency.
The physical dimensions make it practical for deployment under desks, on shelves, or in equipment closets where rack space isn't available. The unit operates within a temperature range of up to 104°F (40°C) and can be stored between 32°F (0°C) and 104°F (40°C), with a maximum operating elevation of 9842.52 ft (3000 m). These specifications ensure reliable performance in various office and equipment room environments.
- Width
- 6.30" (160.02 mm)
- Depth
- 13.94" (354.08 mm)
- Height
- 9.93" (252.22 mm)
- Weight
- 25.36 lb (11503.10 g)
What's in the Box
The package includes everything needed for immediate deployment of the UPS system.
Highlights
- 700VA/630W double conversion online UPS with pure sine wave output
- Up to 5.9 minutes runtime at full load (16.9 minutes at half load)
- Automatic Voltage Regulation (AVR) corrects brownouts and overvoltages
- Six NEMA 5-15R outlets with four load-managed outlets
- Hot-swappable, user-replaceable lead-acid battery system
- LCD display with status LEDs for clear system monitoring
- Network management ready with SNMP/Web support via optional card
- USB, serial, and EPO ports for connectivity and safety
- Tower form factor: 9.93"H × 6.30"W × 13.94"D (25.36 lb)
- 2-year limited warranty with Energy Star compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SU700XLCD |
| Brand Name | Tripp Lite series |
| Product Line | SmartOnline |
| Product Model | SU700XLCD |
| Product Name | SmartOnline SU700XLCD 700VA Tower UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| AVR | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 6 x NEMA 5-15R |
| Number of Load Management Outlets | 4 |
| EMI/RFI Noise Filter | Yes |
| Phase | Single Phase |
| Application/Usage | Education,Healthcare,Military,Government,IT Equipment,Network,Mission Critical Equipment |
| Power Description | |
| Load Capacity (VA) | 700 VA |
| Load Capacity (Watt) | 630 W |
| Input Voltage | 120 V AC |
| Output Voltage | 100 V AC,110 V AC,120 V AC |
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Pure Sine Wave |
| Surge Energy Rating | 190 J |
| Input Power Factor | 0.99 |
| Output Power Factor | 0.9 |
| Display & Graphics | |
| Display | LCD |
| Management | |
| Network Management | Network Card,SNMP/Web,DB-9 RS-232 |
| Alarm | UPS StartUp,Power Failure,Low Battery,Overload,UPS Fault,Remote Shutdown |
| Controls/Indicators | |
| Status Indicators | 4 Status-Indicating LEDs |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| EPO Port | Yes |
| Battery Information | |
| DC System Voltage | 24 V DC |
| Battery Characteristics | Valve-regulated |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 5.90 Minute |
| Backup/Run Time (Half Load) | 16.90 Minute |
| Hot Swappable | Yes |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Maximum Operating Elevation | 9842.52 ft (3000000 mm) |
| Storage Temperature | 32°F (0°C) - 104°F (40°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Sound Emission | 51 dB |
| Physical Characteristics | |
| Height | 9.93" (252.22 mm) |
| Width | 6.30" (160.02 mm) |
| Depth | 13.94" (354.08 mm) |
| Form Factor | Tower |
| Weight (Approximate) | 25.36 lb (11503.10 g) |
| Miscellaneous | |
| Package Contents | SmartOnline SU700XLCD 700VA Tower UPS USB Cable DB9 Cable Quick Start Guide |
| Energy Star | Yes |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the power capacity of this UPS?
The Tripp Lite by Eaton SmartOnline SU700XLCD provides 700 VA and 630 W of power capacity, suitable for protecting servers, networking equipment, and other mission-critical devices during outages or power fluctuations.
What runtime can I expect at full and half loads?
At full load (630 W), this UPS delivers up to 5.9 minutes of runtime, extending to 16.9 minutes at half load. This provides sufficient time for graceful shutdowns or bridging short power interruptions in critical applications.
How many outlets does this UPS have, and are any managed?
This unit includes six NEMA 5-15R outlets, with four of them supporting load management for controlled shutdowns of connected equipment. This allows flexible power distribution for multiple devices while prioritizing critical systems.
What input and output voltages are supported?
The UPS accepts 120 V AC input and provides output voltages of 100 V AC, 110 V AC, and 120 V AC with automatic voltage regulation (AVR). This ensures stable power delivery across varying line conditions without switching to battery unnecessarily.
Is this UPS designed for rack or tower deployment?
This UPS features a tower form factor, measuring 9.93" H × 6.30" W × 13.94" D, making it ideal for standalone installations under desks, on shelves, or in equipment closets where rack space is not available.
What management and connectivity options are included?
Management options include an optional network card for SNMP/Web monitoring, USB and serial ports for local connectivity, and an EPO port for safety shutdowns. The front panel has an LCD display and status LEDs for real-time system monitoring.
