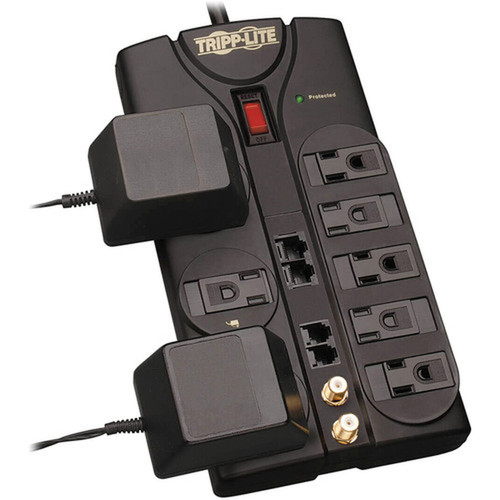

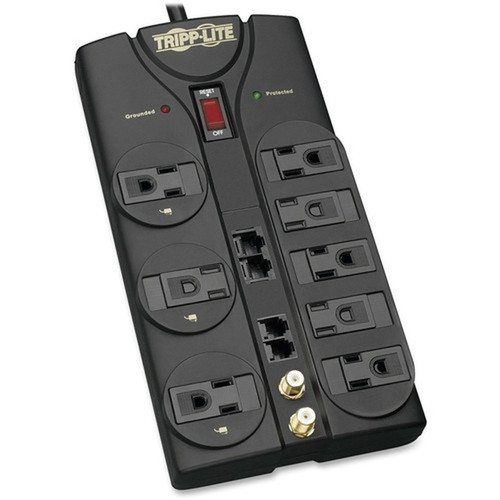

Tripp Lite by Eaton TLP810NET Tripp Lite 8-Outlet TV/Modem Surge Protector - 1.80 kVA - 3240 J - 120V AC - 10-ft Cord - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Engineered with Tripp Lite's Protect It! technology, the TLP810NET maintains 120V AC input and output voltage, ensuring stable power delivery to connected equipment. The surge protection circuitry is designed to respond instantly to overvoltage conditions, clamping surges before they reach sensitive electronics.
The integrated dataline protection covers three critical pathways: Ethernet networks, coaxial cable TV/satellite lines, and two-line modem/fax connections. This multi-path defense prevents surge damage from propagating through data cables, which can bypass traditional power-only protectors.
Relevant factors for this section include Plug/Connector Type, Receptacles, Dataline Protection, Input Voltage. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The TLP810NET stands out with its combination of high joule rating, comprehensive dataline coverage, and substantial outlet count in a compact form factor. The lifetime warranty and 250,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only) provide long-term value and peace of mind.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Multi-Path Surge Protection, High-Capacity Design.
Multi-Path Surge Protection
Protects AC power lines plus network, coaxial, and telephone connections simultaneously.
- Ethernet surge protection
- Coaxial protection up to 2.2GHz
- 2-line modem/fax protection
High-Capacity Design
Handles demanding power loads while providing substantial surge absorption capacity.
- 1.80 kVA power handling
- 3240 joule rating
- 8 spaced outlets
Deployment / Use Cases
This surge protector is ideal for entertainment centers where it can protect televisions, gaming consoles, streaming devices, and audio equipment while also safeguarding coaxial and network connections. The combination of power and data protection makes it particularly valuable for home theater installations.
In home office and small business settings, the TLP810NET protects computers, monitors, printers, and networking equipment. The telephone line protection is essential for traditional fax machines and modem-based alarm systems, while the network protection secures Ethernet connections to routers and switches.
Relevant factors for this section include Plug/Connector Type, Receptacles, Dataline Protection, Input Voltage. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Entertainment Center Protection
Safeguards TVs, gaming systems, and streaming devices with simultaneous coaxial and network protection.

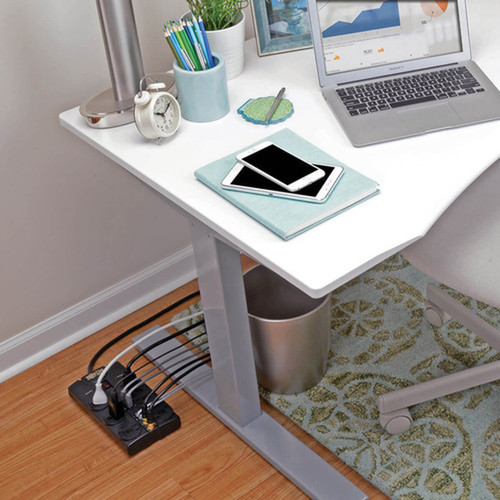

Home Office Setup
Protects computers, printers, and networking gear while securing modem and phone connections.
Physical Profile
The black housing measures 9.55 inches wide, 4.86 inches high, and 1.51 inches deep, presenting a low-profile design that fits discreetly behind furniture or along walls. The 10-foot power cord provides ample reach from outlet to equipment, while the eight outlets are spaced to accommodate bulky power adapters. The unit weighs just over 2 pounds, making it easy to position and reposition as needed.
- Width
- 9.55" (242.57 mm)
- Depth
- 1.51" (38.35 mm)
- Height
- 4.86" (123.44 mm)
- Weight
- 2.02 lb (916.26 g)
- Length
- 10 ft (3.05 m)
What's in the Box
The package includes all necessary components for immediate deployment of comprehensive surge protection.
Highlights
- 8 NEMA 5-15R outlets with 10-foot power cord
- 3240 joule surge energy rating for robust protection
- 1.80 kVA power handling capacity
- Dataline protection for network, coaxial, and phone lines
- 120V AC input and output voltage
- Compact black housing (9.55" W x 4.86" H x 1.51" D)
- Lifetime warranty coverage
- 250,000 Ultimate Lifetime Insurance (U.S., Canada, Puerto Rico)
- RoHS compliant and environmentally friendly
- Includes all necessary cables for immediate deployment
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | TLP810NET |
| Brand Name | Tripp Lite series |
| Product Line | Protect It! |
| Product Model | TLP810NET |
| Product Name | 8-Outlet TV/Modem Surge Protector |
| Packaged Quantity | 1 Each |
| Product Type | Surge Suppressor/Protector |
| Technical Information | |
| Plug/Connector Type | NEMA 5-15P |
| Receptacles | 8 x NEMA 5-15R |
| Dataline Protection | Fax/Modem/Phone,Network,Cable TV/Satellite |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Power Handling | 1.80 kVA |
| Surge Energy Rating | 3240 J |
| Physical Characteristics | |
| Power Cord/Cable Length | 10 ft (3.05 m) |
| Product Color | Black |
| Height | 4.86" (123.44 mm) |
| Width | 9.55" (242.57 mm) |
| Depth | 1.51" (38.35 mm) |
| Weight (Approximate) | 2.02 lb (916.26 g) |
| Miscellaneous | |
| Package Contents | 8-Outlet TV/Modem Surge Protector 6-ft. Telephone Cord 6-ft. Network Cable 6-ft. Coax Cable Instruction Manual with Warranty Information |
| Country of Origin | Vietnam |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What types of dataline connections does this surge protector secure?
The Tripp Lite TLP810NET provides dedicated surge protection for three types of dataline connections: Ethernet network cables (RJ45), coaxial cable TV/satellite lines, and two-line telephone/modem connections (RJ11). This comprehensive coverage prevents surge damage from propagating through data cables that can bypass traditional power-only surge protectors.
How many devices can I connect to this surge protector simultaneously?
This unit features eight NEMA 5-15R outlets, allowing you to connect up to eight standard North American plug devices. The outlets are spaced to accommodate bulky power adapters, and the 1.80 kVA power handling capacity supports multiple electronics drawing power simultaneously without overload concerns.
What is the significance of the 3240 joule rating?
The 3240 joule rating indicates the total surge energy the protector can absorb over its lifetime before protection degrades. Higher joule ratings generally indicate greater protection capacity and longer product lifespan. This 3240J rating provides robust defense against voltage spikes and transient events that can damage sensitive electronics.
Does this surge protector require any special installation or setup?
No special installation is required. Simply plug the unit into a standard 120V AC wall outlet, then connect your devices to the eight available outlets. For dataline protection, connect your network, coaxial, and telephone cables to the corresponding ports on the surge protector using the included cables. The 10-foot power cord provides flexible placement options.
What warranty coverage does this product include?
The Tripp Lite TLP810NET comes with a lifetime warranty against defects in materials and workmanship. Additionally, it includes 250,000 Ultimate Lifetime Insurance (available in U.S., Canada, and Puerto Rico only) that provides coverage for connected equipment damaged by surges while properly connected to the protector. Always review the complete warranty terms for specific coverage details and limitations.
Can this surge protector be used with home theater and gaming equipment?
Yes, this unit is particularly well-suited for entertainment centers. It protects televisions, gaming consoles, streaming devices, and audio equipment through the eight AC outlets while simultaneously safeguarding the coaxial connections for cable/satellite boxes and network connections for smart TVs and gaming systems. The comprehensive protection addresses all common entry points for surges in entertainment setups.
