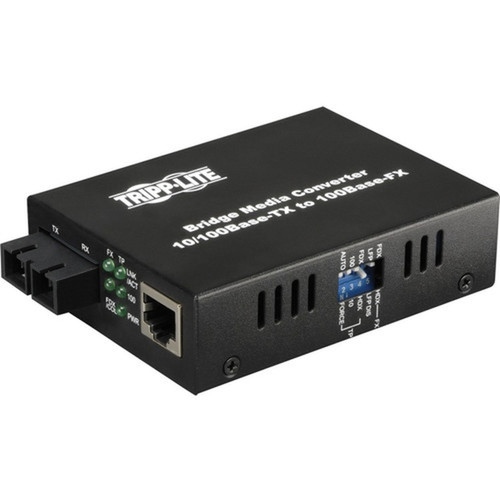

Tripp Lite by Eaton N784-001-SC Tripp Lite UTP to Fiber Media Converter - 1 x RJ-45 - 1 x SC Duplex - 10/100Base-TX/FX - Multi-mode up to 2 km
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The N784-001-SC operates as a Fast Ethernet media converter, handling 10/100 Mbps traffic with support for both 10/100Base-TX on the copper side and 100Base-FX on the fiber side. It uses multi-mode fiber, compatible with 50/125 μm cable up to 2 km or 62.5/125 μm cable up to 550 m, providing flexibility for various campus and building deployments.
Its auto-negotiation capabilities include speed sensing and duplex mode detection, ensuring seamless integration with switches, routers, and other network equipment. The converter is powered by an included AC-DC adapter supporting 100-240V input, suitable for global use in data centers, offices, or industrial environments.
This section brings together practical product details such as Total Number of Ports, Network (RJ-45), Number of Network (RJ-45) Ports, Media Type Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This media converter simplifies network upgrades by extending copper Ethernet over fiber without replacing entire infrastructure. Its compact design and plug-and-play operation reduce installation time and complexity, while the support for long-distance fiber runs enhances network reliability in noisy environments.
Distance Extension
Extends UTP Ethernet signals up to 2 km over multi-mode fiber, overcoming the 100-meter limitation of standard copper cabling.
- Eliminates EMI interference
- Reduces signal degradation over long runs
Compatibility
Works with standard 10/100 Mbps devices and supports common multi-mode fiber types, ensuring broad interoperability.
- Auto-senses speed and duplex
- Integrates with existing network gear
Deployment / Use Cases
The N784-001-SC is ideal for extending network segments between buildings, across campuses, or within large facilities where copper distance limits are a constraint. It enables fiber backbone connections for surveillance systems, access control, or industrial automation networks that require noise immunity.
Common applications include connecting remote switches in warehouses, linking floors in multi-story offices, or integrating fiber runs in manufacturing plants. Its small footprint allows for discreet placement in server racks, wall mounts, or desktop setups, supported by the included power adapter for flexible installation.
Building-to-Building Links
Connect network equipment across separate structures using fiber for reliable, high-bandwidth links unaffected by lightning or ground potential differences.
EMI-Prone Environments
Deploy in factories or data centers where electromagnetic interference can disrupt copper signals, leveraging fiber's immunity for stable connectivity.
Physical Profile
The converter measures 1" (25.40 mm) in height, 2.75" (69.85 mm) in width, and 3.75" (95.25 mm) in depth, making it a space-efficient addition to any network setup. Its compact form factor suits desktop, wall-mount, or rack-mounted installations, with a durable casing designed for continuous operation in commercial environments.
- Width
- 2.75" (69.85 mm)
- Depth
- 3.75" (95.25 mm)
- Height
- 1" (25.40 mm)

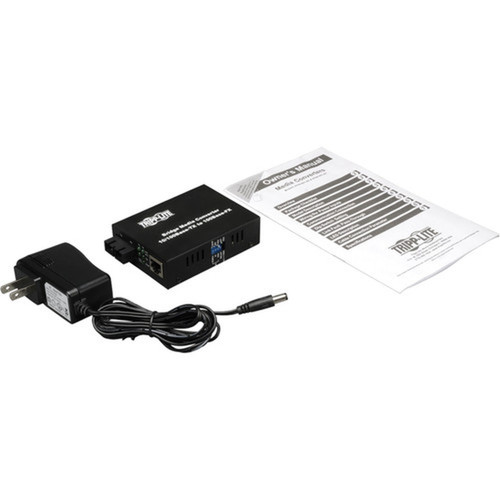

What's in the Box
The package includes all necessary components for immediate deployment.
Highlights
- Converts UTP Ethernet to fiber optic signals

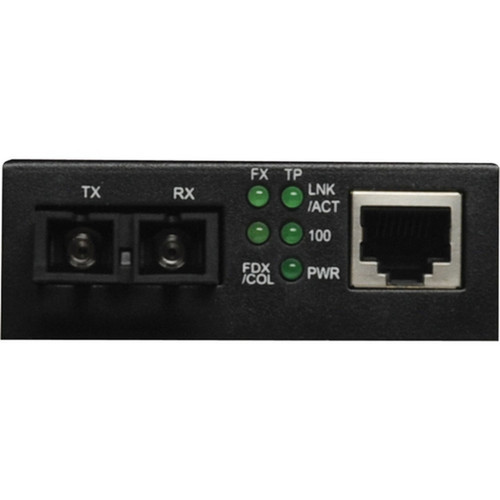

- 1 x RJ-45 port and 1 x SC duplex port
- Supports 10/100Base-TX and 100Base-FX
- Multi-mode fiber up to 2 km distance
- Auto MDI/MDI-X and half/full duplex operation
- Auto-senses 10/100 Mbps speeds
- Compact dimensions: 1" H x 2.75" W x 3.75" D
- Includes AC-DC power adapter (100-240V)
- 2-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | N784-001-SC |
| Brand Name | Tripp Lite series |
| Product Model | N784-001-SC |
| Product Name | N784-001-SC UTP to Fiber Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| SC Port Type | Duplex |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Maximum Distance Supported | 2 km (1.24 Mile) |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 10/100Base-TX,100Base-FX |
| Physical Characteristics | |
| Height | 1" (25.40 mm) |
| Width | 2.75" (69.85 mm) |
| Depth | 3.75" (95.25 mm) |
| Miscellaneous | |
| Package Contents | N784-001-SC UTP to Fiber Media Converter 10/100 Media Converter, UTP - SC AC-DC Power Adapter ( 100-240V ) Owner's Manual |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What does this media converter do?
The Tripp Lite N784-001-SC converts 10/100 Mbps Ethernet signals from copper UTP cabling to fiber optic signals, allowing network extension over longer distances with multi-mode fiber. It bridges RJ-45 and SC duplex connections, enabling integration of fiber segments into copper-based networks.
What types of fiber does it support?
This converter supports multi-mode fiber, specifically 50/125 μm cable for distances up to 2 km or 62.5/125 μm cable up to 550 m. It is designed for use with standard multi-mode fiber optic cabling commonly used in LAN and campus deployments.
What is the maximum distance it can cover?
The maximum supported distance is 2 km (1.24 miles) when using 50/125 μm multi-mode fiber. This extends far beyond the 100-meter limit of typical UTP Ethernet, making it suitable for building-to-building or long indoor runs.
Does it require configuration?
No, the converter operates as a plug-and-play device with auto-negotiation features. It auto-senses 10/100 Mbps speeds, detects half or full duplex modes, and supports auto MDI/MDI-X, eliminating manual setup for most deployments.
What power source does it use?
It is powered by an included AC-DC adapter that accepts 100-240V input, making it compatible with standard power outlets worldwide. The adapter provides the necessary DC power for continuous operation in various environments.
What is included in the package?
The package contains the N784-001-SC UTP to Fiber Media Converter, an AC-DC Power Adapter (100-240V), and an Owner's Manual. All components are provided for immediate installation and use.
