Tripp Lite by Eaton PDU3MV6L2130A Tripp Lite 3-Phase Metered Rack PDU - 8. 6kW 208V 45 Outlets - 36 C13 - 9 C19 0U Vertical Mount TAA Compliant
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This PDU accepts 230V AC input through a NEMA L21-30P plug and distributes 208V AC output across its 45 outlets. The 24A input current rating supports the full 8.6kW power capacity, while overload protection safeguards connected equipment from power surges. The unit includes a 6-foot line cord for convenient connection to power sources.
The vertical 0U rackmount design optimizes space utilization in standard 19-inch racks, with dimensions of 70" height, 2.65" width, and 2.20" depth. The toolless button-mount installation system simplifies deployment, and included cord retention sleeves secure power connections to prevent accidental disconnections.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Receptacle Detail, Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
This metered PDU combines high power capacity with intelligent monitoring capabilities, providing data center managers with both distribution functionality and consumption visibility. The per-phase load monitoring helps balance power loads across circuits, while the comprehensive outlet configuration supports diverse equipment requirements.
Phase-Level Monitoring

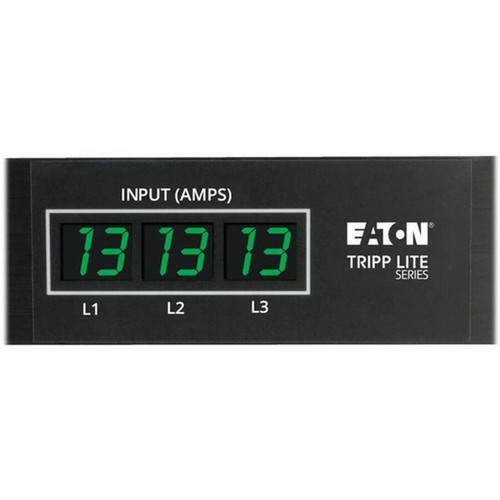

Three digital displays show current draw per phase, enabling precise load balancing and early detection of potential overload conditions before they cause downtime.
- Real-time current monitoring
- Per-phase load visibility
- Prevent circuit overloads
High-Density Outlet Design
With 45 total outlets including 36 C13 and 9 C19 receptacles, this PDU can power a complete rack of equipment without requiring additional power strips or splitters.
- 36 C13 outlets for standard equipment
- 9 C19 outlets for high-power devices
- Eliminates need for additional PDUs
Government-Compliant Design
TAA compliance ensures this PDU meets Trade Agreements Act requirements for government procurement, while RoHS compliance demonstrates environmental responsibility.
- TAA compliant for government use
- RoHS environmental compliance
- Suitable for regulated environments
Deployment / Use Cases
This 3-phase metered PDU is engineered for data centers, server rooms, and network closets where reliable power distribution and monitoring are critical. The 8.6kW capacity and 208V output make it particularly suitable for powering high-density server racks, storage arrays, and networking equipment in enterprise environments.
Government facilities and contractors will appreciate the TAA compliance for procurement requirements, while the vertical 0U mounting preserves valuable rack space for equipment. The metered functionality supports capacity planning and helps organizations optimize power utilization across their infrastructure.
Data Center Server Racks
Power multiple servers, switches, and storage devices in a single rack with phase-balanced distribution and real-time load monitoring.
- High-density server deployments
- Phase load balancing
- Capacity planning support
Government IT Infrastructure
Meet TAA compliance requirements while distributing power to secure government computing environments with reliable overload protection.
- TAA compliant procurement
- Secure facility power
- Regulatory compliance
Physical Profile
Designed for vertical mounting in standard 19-inch racks, this PDU occupies 0U of rack space with dimensions of 70" height, 2.65" width, and 2.20" depth. The slender profile maximizes equipment space while providing full-length power distribution. The 13.5-pound weight ensures manageable installation, and the toolless mounting system with spare installation buttons simplifies deployment and maintenance.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 0U, 2.65" (67.31 mm), 2.20" (55.88 mm), 13.50 lb (6123.50 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 2.65" (67.31 mm)
- Depth
- 2.20" (55.88 mm)
- Height
- 0U
- Weight
- 13.50 lb (6123.50 g)
What's in the Box
The package includes everything needed for immediate deployment and secure operation.
Highlights
- 8.6kW 3-phase metered PDU with 208V output for high-power applications
- 45 total outlets: 36 IEC C13 and 9 IEC C19 receptacles
- Per-phase digital current displays for real-time load monitoring
- Vertical 0U rackmount design saves valuable equipment space
- NEMA L21-30P input plug with 6-foot line cord
- Toolless button-mount installation for quick deployment
- TAA compliant for government procurement requirements
- Includes cord retention sleeves to secure power connections
- Overload protection safeguards connected equipment
- RoHS compliant and environmentally friendly design
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | PDU3MV6L2130A |
| Brand Name | Tripp Lite series |
| Product Series | Metered |
| Product Model | PDU3MV6L2130A |
| Product Name | Metered PDU3MV6L2130A 45-Outlets PDU |
| Product Type | PDU |
| Technical Information | |
| Plug/Connector Type | NEMA L21-30P |
| Receptacle Type | IEC 60320 C13,IEC 60320 C19 |
| Receptacle Detail | 36 x IEC 60320 C13,9 x IEC 60320 C19 |
| Protection Type | Overload Protection |
| Power Description | |
| Input Voltage | 230 V AC |
| Output Voltage | 208 V AC |
| Power Rating (Watt) | 8.60 kW |
| Input Current | 24 A |
| Physical Characteristics | |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Height | 70" (1778 mm) |
| Width | 2.65" (67.31 mm) |
| Depth | 2.20" (55.88 mm) |
| Weight (Approximate) | 13.50 lb (6123.50 g) |
| Miscellaneous | |
| Package Contents | Metered PDU3MV6L2130A 45-Outlets PDU Cord Retention Sleeves (36 C14, 9 C19) Spare Installation Buttons (2 9mm / 4 6mm) Rack Mounting Brackets Owner's Manual |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What power capacity does this PDU provide?
This Tripp Lite PDU delivers 8.6kW of power capacity with 208V output voltage, making it suitable for high-density server racks and data center environments. The 3-phase design supports balanced power distribution across multiple equipment loads.
How many outlets does this PDU have and what types?
The PDU features 45 total outlets: 36 IEC C13 receptacles for standard equipment and 9 IEC C19 receptacles for higher-power devices. This configuration supports a mix of server, storage, and networking equipment in a single rack.
What does 'metered' mean for this PDU?
Metered functionality includes three digital current displays that show real-time voltage and load per phase. This allows IT administrators to monitor power consumption, balance loads across phases, and prevent circuit overloads before they cause equipment downtime.
How is this PDU mounted in a rack?
This PDU uses a vertical 0U rackmount design that installs along the side of standard 19-inch racks without consuming equipment space. The toolless button-mount system with included spare buttons enables quick installation and secure mounting.
What is TAA compliance and why is it important?
TAA (Trade Agreements Act) compliance means this PDU meets U.S. government procurement requirements for products used in federal contracts. This makes it suitable for government facilities, contractors, and any organization requiring TAA-compliant equipment.
What protection features does this PDU include?
The PDU provides overload protection to safeguard connected equipment from power surges. Additionally, included cord retention sleeves secure power cords in receptacles to prevent accidental disconnections that could cause equipment downtime.
What power capacity is listed for this UPS?
The listed power specification is 8.60 kW, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 230 V AC, which helps position the unit for the right load level and installation role.
