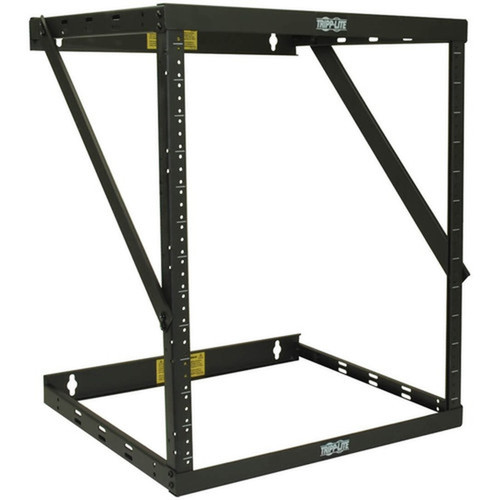

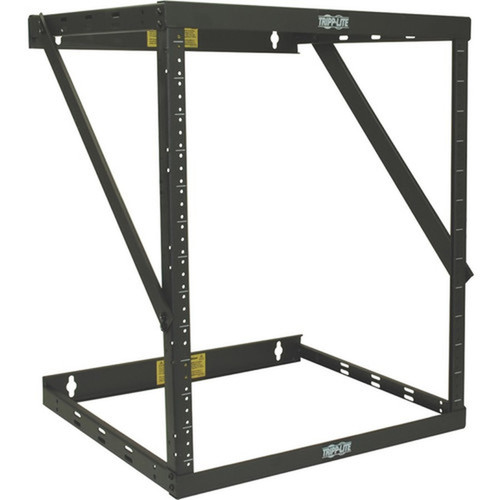

Tripp Lite series 12U Wall-Mount Open Frame Rack - 12U Rack Height x 19" (482.60 mm) Rack Width x 18" (457.20 mm) Rack Depth - Wall - (SRWO12UHD)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- 12U Wall-Mount Open Frame Rack
- 1 x 3mm L-Shaped Hex Key
- 2 x Top/Bottom Panel Frames
- 2 x Vertical Mounting Rails
- 8 x M5 Button Head Cap Screws
- 24 x #12-24 Equipment Mounting Screws
Form Factor: Wall Mountable
Color Family: Black
Product Color: Black Powder Coat
Product Material: Steel
Static/Stationary Weight Capacity: 550 lb (249475.80 g)
Height: 24.80" (629.92 mm)
Width: 20.10" (510.54 mm)
Depth: 18.24" (463.30 mm)
Rack Height: 12U
Rack Width: 19" (482.60 mm)
Rack Depth: 18" (457.20 mm)
Weight (Approximate): 14.30 lb (6486.37 g)
Package Contents:
Assembly Required: Yes
Country of Origin: China
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 5 Year
- Maximum load capacity of 200 lb.
- Allows easy access to equipment and cabling
- Stores 12U of 19 in. rack equipment up to 18 in. deep
- Simple to assemble and mount
- Assembly and equipment-mounting hardware included
[custom-specifications]
| Specifications | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SRWO12UHD |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Brand Name | Tripp Lite series |
| Product Line | SmartRack |
| Product Model | SRWO12UHD |
| Product Name | 12U Wall-Mount Open Frame Rack |
| Product Type | Rack Frame |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Color Family | Black |
| Product Color | Black Powder Coat |
| Product Material | Steel |
| Static/Stationary Weight Capacity | 550 lb (249475.80 g) |
| Height | 24.80" (629.92 mm) |
| Width | 20.10" (510.54 mm) |
| Depth | 18.24" (463.30 mm) |
| Rack Height | 12U |
| Rack Width | 19" (482.60 mm) |
| Rack Depth | 18" (457.20 mm) |
| Weight (Approximate) | 14.30 lb (6486.37 g) |
| Miscellaneous | |
| Package Contents |
|
| Assembly Required | Yes |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
