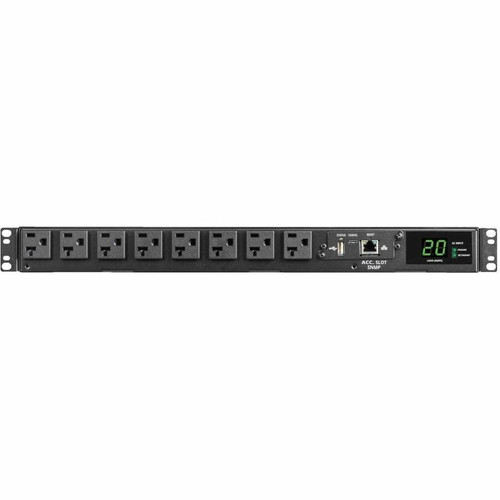

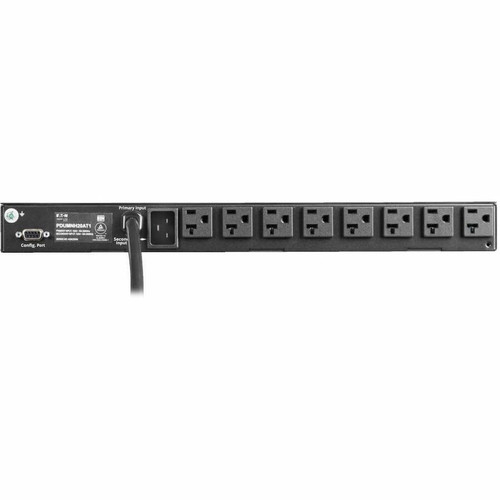

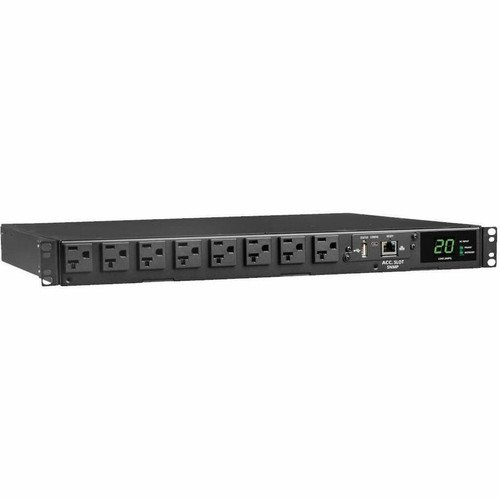

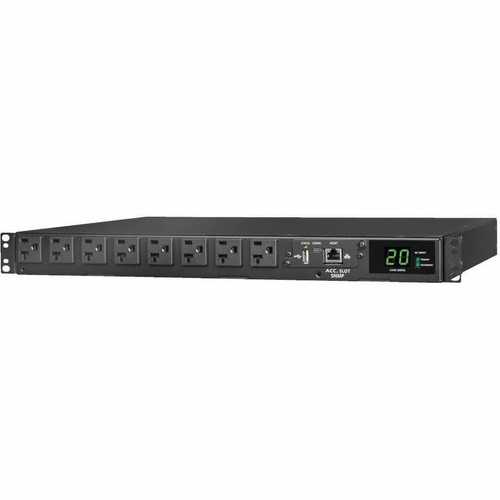

Tripp Lite by Eaton PDUMNH20AT1 Metered Auto Transfer Switch Rack PDU - 16 Outlets NEMA 5-15/20R - 120V AC - 2. 03 kW - 1U
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This metered auto transfer switch PDU operates on single-phase power with 120V AC input voltage and delivers output voltages of 100V AC, 120V AC, and 127V AC. The 16A input current supports the full 2.03 kW power capacity, making it suitable for powering multiple servers, networking equipment, or storage devices simultaneously.
The unit features circuit protection to safeguard connected equipment from power anomalies. With two NEMA 5-20P and two NEMA L5-20P input connectors, it offers flexible power source connectivity options. The detailed power metering provides real-time monitoring of current draw, voltage, and power consumption at the PDU level.
This section brings together practical product details such as PDU Type, Phase, Plug/Connector Type, Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
This PDU combines advanced power monitoring with automatic transfer capabilities to deliver unmatched reliability for critical infrastructure. The metered design provides visibility into power consumption patterns, enabling better capacity planning and energy management.
Automatic Failover Protection
The auto transfer switch ensures continuous power delivery by automatically switching to a secondary power source if the primary source fails, protecting against downtime during power disruptions.
- Seamless power source switching
- Minimizes equipment downtime
- Maintains operational continuity
Comprehensive Power Monitoring
Built-in metering capabilities provide real-time visibility into power usage, voltage levels, and current draw, enabling proactive management of power resources and early detection of potential issues.
- Real-time power consumption data
- Voltage monitoring
- Current load tracking
Flexible Deployment Options
With both rack-mountable and wall-mountable installation options, this PDU adapts to various infrastructure layouts and space constraints while maintaining optimal airflow and accessibility.
- 1U rack space efficiency
- Wall-mount capability
- Horizontal orientation
Deployment / Use Cases
The PDUMNH20AT1 is ideally suited for environments where power reliability and monitoring are critical. Its auto transfer switch functionality makes it particularly valuable for applications requiring high availability and minimal downtime.
In data center deployments, this PDU can power multiple rack-mounted servers while providing power usage insights for capacity planning. For network infrastructure, it ensures uninterrupted operation of switches, routers, and communication equipment. The unit also serves well in broadcast facilities, financial trading floors, and healthcare IT environments where continuous power is essential.
Data Center Power Distribution
Distribute power to multiple servers and storage devices within a rack while monitoring consumption and maintaining power continuity through automatic source switching.
Network Infrastructure Support
Power networking equipment in telecom closets or server rooms with reliable distribution and the ability to switch to backup power during outages.
Physical Profile
Designed for standard 19-inch racks, this PDU occupies only 1U of vertical space with dimensions of 1.75" (44.45 mm) height, 17.50" (444.50 mm) width, and 14.50" (368.30 mm) depth. The horizontal mounting orientation and compact footprint maximize rack space utilization while maintaining proper airflow. The unit's construction supports both rack-ear mounting and wall mounting, providing installation flexibility for different infrastructure layouts.
- Width
- 17.50" (444.50 mm)
- Depth
- 14.50" (368.30 mm)
- Height
- 1U
- Weight
- 12.20 lb (5533.83 g)
What's in the Box
The package includes all necessary components for immediate deployment and operation.
Highlights
- Metered Auto Transfer Switch PDU with 16 NEMA 5-15/20R outlets
- 2.03 kW power rating with 120V AC input and 16A current capacity
- Automatic switching between primary and secondary power sources
- 1U rack-mountable design with horizontal mounting orientation
- Wall-mountable option for flexible installation
- Real-time power monitoring of current, voltage, and consumption
- TAA compliant and RoHS environmental certification
- 2-year limited warranty for reliable long-term performance
- Includes secondary input cord and plug adapters for dual-power setup
- Cable retention kit for organized power cable management
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | PDUMNH20AT1 |
| Brand Name | Tripp Lite series |
| Product Name | 16-Outlets PDU |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Metered Auto Transfer Switch |
| Phase | Single Phase |
| Plug/Connector Type | NEMA 5-20P,NEMA L5-20P |
| Plug/Connector Detail | 2 x NEMA 5-20P,2 x NEMA L5-20P |
| Receptacle Type | NEMA 5-15/20R |
| Receptacle Detail | 16 x NEMA 5-15/20R |
| Protection Type | Circuit Protection |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 100 V AC,120 V AC,127 V AC |
| Power Rating (Watt) | 2.03 kW |
| Input Current | 16 A |
| Physical Characteristics | |
| Mounting Orientation | Horizontal |
| Mount Type | Rack-mountable,Wall-mountable |
| Rack Height | 1U |
| Height | 1.75" (44.45 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 14.50" (368.30 mm) |
| Weight (Approximate) | 12.20 lb (5533.83 g) |
| Miscellaneous | |

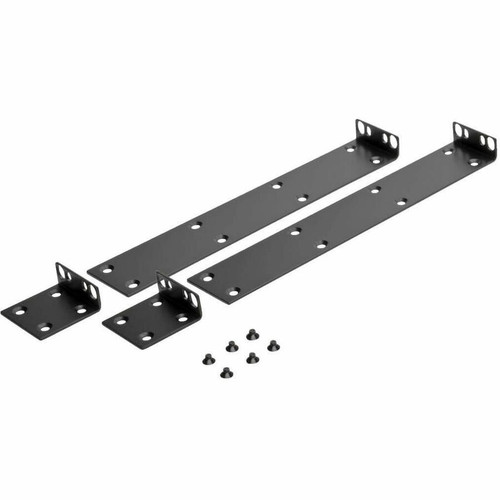

| Package Contents | 16-Outlets PDU Detachable C19 To NEMA L5-20P Secondary Input Cord, 12 Ft. (3.7 m) 2 x L5-20R To 5-20P Plug Adapters Configuration Cable Rack-Mounting Hardware Cable Retention Kit Owner's Manual |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the power capacity of this PDU?
The Tripp Lite by Eaton PDUMNH20AT1 has a 2.03 kW power rating with 120V AC input voltage and 16A input current. This capacity supports powering multiple servers, networking equipment, or storage devices simultaneously in rack environments.
How many outlets does this PDU have and what type are they?
This PDU features 16 NEMA 5-15/20R outlets, which are compatible with both 5-15P and 5-20P plugs. This configuration provides flexibility for connecting various IT equipment with standard North American power cords.
What is an auto transfer switch and how does it work in this PDU?
The auto transfer switch automatically switches between primary and secondary power sources if the primary source fails. This PDU includes two NEMA 5-20P and two NEMA L5-20P input connectors, allowing connection to redundant power sources for continuous operation during power disruptions.
What rack space does this PDU require for installation?
This PDU occupies 1U of vertical space in a standard 19-inch rack. Its dimensions are 1.75" height, 17.50" width, and 14.50" depth. The unit supports horizontal mounting orientation and includes all necessary rack-mounting hardware.
What power monitoring capabilities does this metered PDU provide?
This metered PDU provides real-time monitoring of current draw, input voltage, and power consumption. These metrics enable administrators to track power usage patterns, identify potential overload conditions, and optimize power distribution across connected equipment.
What is included in the package with this PDU?
The package includes the 16-outlet PDU unit, a detachable C19 to NEMA L5-20P secondary input cord (12 feet), two L5-20R to 5-20P plug adapters, configuration cable, rack-mounting hardware, cable retention kit, and owner's manual for complete deployment.
What power capacity is listed for this UPS?
The listed power specification is 2.03 kW, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 120 V AC, which helps position the unit for the right load level and installation role.
