Product Features
Technical Overview
This DisplayPort switch handles maximum resolutions up to 7680 x 4320 (8K) at 30 Hz or 3840 x 2160 (4K) at 120 Hz, catering to demanding visual applications. It features one DisplayPort input and two DisplayPort outputs, allowing a single source to drive two displays or two sources to share one display with quick switching. The switch supports HDR for improved dynamic range and HDCP 2.2 passthrough to maintain compliance with copyright-protected media.
Connectivity is via standard DisplayPort cables, with a maximum operating distance of 108 inches (2743 mm) per connection. The device is compatible with a wide range of equipment, including media players, Blu-ray disc players, gaming consoles, displays, TVs, monitors, and projectors. Its compact form factor and lightweight design make it easy to integrate into existing setups without occupying significant space.
Key Product Advantages

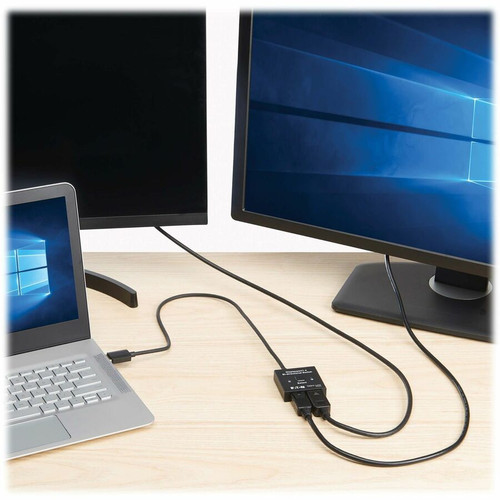

The Tripp Lite B119-002-BDS-DP simplifies AV management by eliminating the need to manually reconnect cables when switching between sources. Its bi-directional capability provides configuration flexibility, allowing users to adapt the switch for different scenarios, such as sharing a high-end display between a gaming PC and a media server or extending a single source to multiple monitors.
High-Resolution Support
Delivers crisp 8K at 30 Hz or smooth 4K at 120 Hz, ideal for gaming, video editing, and digital signage that require detailed imagery and fast refresh rates.
- 7680 x 4320 maximum resolution
- HDR for enhanced contrast and color
Seamless Switching
Enables instant transitions between video and audio sources without interrupting the viewing experience, perfect for multi-device setups in control rooms or entertainment centers.
- Switches both video and audio signals
- Trouble-free connection with various media players
Deployment / Use Cases
This switch is designed for environments where multiple video sources need to share displays efficiently. In commercial settings, it can be used in control rooms to toggle between surveillance feeds or in conference rooms to switch between presentation laptops. For prosumer applications, it suits gaming setups where players switch between consoles and PCs, or home theaters that integrate streaming devices and Blu-ray players.
Digital signage installations benefit from the ability to cycle content between two sources on a single display, while educational facilities can use it to share a high-resolution projector between different instructors. The compact size and cable-based connectivity make it easy to deploy in rack-mounted systems, desktop configurations, or behind displays without requiring external power.
Gaming and Entertainment
Switch between a gaming console and a media PC on a high-refresh-rate 4K monitor, maintaining HDR and HDCP for protected gaming and streaming content.
Professional AV Control
Manage multiple input sources in broadcast studios or command centers, ensuring reliable signal distribution without downtime during transitions.
Physical Profile
The switch measures 5.31 inches wide, 0.90 inches deep, and 0.13 inches high, with a weight of approximately 2.08 ounces. This slim profile allows for discreet placement on desks, behind monitors, or within AV racks. The lightweight construction and robust build ensure durability during frequent use, while the compact design minimizes clutter in cable management systems.
- Width
- 5.31" (134.87 mm)
- Depth
- 0.90" (22.86 mm)
- Height
- 0.13" (3.30 mm)
- Weight
- 2.08 oz (58.97 g)
What's in the Box
The package includes the 2x1 Bi-Directional DisplayPort Switch and installation instructions, providing everything needed for quick setup and integration into your AV environment.
Highlights
- Supports 4K at 120 Hz or 8K at 30 Hz for high-resolution video
- Bi-directional design allows flexible input/output configuration
- HDCP passthrough maintains compatibility with protected content
- HDR support enhances color and contrast in video playback
- Switches both video and audio signals between two sources
- Compact dimensions of 5.31" W x 0.90" D x 0.13" H for easy integration
- Compatible with media players, gaming consoles, displays, and projectors
- Maximum operating distance of 108 inches per connection
- RoHS and WEEE compliant for environmental responsibility
- Backed by a one-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | B119-002-BDS-DP |
| Brand Name | Tripp Lite series |
| Product Model | B119-002-BDS-DP |
| Product Name | 2x1 Bi-Directional DisplayPort Switch - 4K 120 Hz or 8K 30 Hz, HDR, HDCP Passthrough |
| Product Type | Audio/Video Switchbox |
| Technical Information | |
| Connectivity Technology | Cable |
| Number of Input Devices Supported | 2 |
| Device Supported | Media Player,Blu-ray Disc Player,Gaming Console,Display,TV,Monitor,Projector |
| Number of Displays Supported | 2 |
| Video | |
| Graphics Modes | 8K,4K |
| Maximum Video Resolution | 7680 x 4320 |
| Interfaces/Ports | |
| DisplayPort | Yes |
| Number of DisplayPort Outputs | 2 |
| Number of DisplayPort Inputs | 1 |
| Media & Performance | |
| Maximum Operating Distance | 108" (2743.20 mm) |
| Physical Characteristics | |
| Height | 0.13" (3.30 mm) |
| Width | 5.31" (134.87 mm) |
| Depth | 0.90" (22.86 mm) |
| Weight (Approximate) | 2.08 oz (58.97 g) |
| Miscellaneous | |
| Package Contents | 2x1 Bi-Directional DisplayPort Switch - 4K 120 Hz or 8K 30 Hz, HDR, HDCP Passthrough Installation Instructions |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Vietnam |
| Warranty | |
| Limited Warranty | 1 Year |
User Manual
FAQ
What resolution and refresh rates does this DisplayPort switch support?
The Tripp Lite B119-002-BDS-DP supports maximum resolutions up to 7680 x 4320 (8K) at 30 Hz or 3840 x 2160 (4K) at 120 Hz. This ensures compatibility with high-definition content for gaming, video editing, and digital signage, providing smooth performance at both standard and ultra-high resolutions.
How many devices can I connect to this switch?
This switch supports two input devices and two displays. It features one DisplayPort input and two DisplayPort outputs, allowing you to connect two sources (like a gaming console and a media player) and switch between them on up to two displays, or use one source to drive two displays simultaneously.
Does this switch support HDR and HDCP content?
Yes, the switch supports HDR (High Dynamic Range) for improved color and contrast in video playback. It also includes HDCP (High-bandwidth Digital Content Protection) 2.2 passthrough, ensuring compatibility with copyright-protected media from sources like streaming services, Blu-ray players, and gaming consoles without signal interruption.
What is the maximum cable distance supported by this switch?
The maximum operating distance per connection is 108 inches (2743.20 mm). This allows for flexible placement of sources and displays within typical AV setups, such as in home theaters or conference rooms, without signal degradation when using standard DisplayPort cables.
Is this switch bi-directional, and what does that mean for setup?
Yes, the switch is bi-directional, meaning it can be configured to switch between two sources going to one display or to distribute one source to two displays. This flexibility makes it suitable for various applications, like sharing a high-resolution monitor between devices or extending a single source to multiple screens in digital signage.
What is included in the package with this switch?
The package includes the 2x1 Bi-Directional DisplayPort Switch and installation instructions. This provides all necessary components for setup, allowing you to quickly integrate the switch into your AV system without additional accessories.
