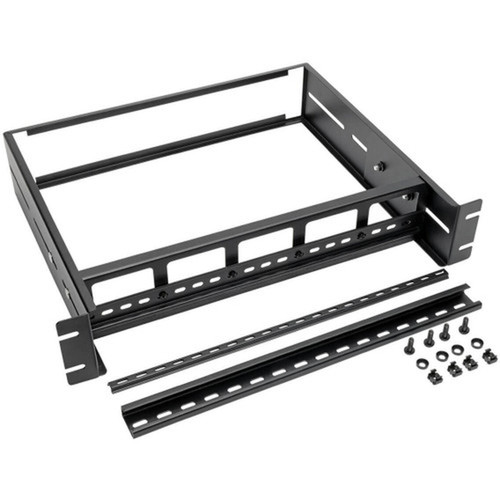

Tripp Lite by Eaton SRDINRAIL2U Adjustable Rack-Mount DIN Rail Kit - Top Hat - Mini Top Hat & G-Style Rails - 2U Rack Height x 19" Rack
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This DIN rail kit features a robust cold-rolled steel (CRS) build with a static weight capacity of 39.68 lb (18000 g), supporting heavy-duty equipment securely. The dimensions are optimized for standard 19" racks with a 2U height, measuring 3.50" (88.90 mm) in height, 18.98" (482 mm) in width, and 14.11" (358.40 mm) in depth, ensuring a precise fit without wasted space.
The kit's adjustable design accommodates various mounting configurations, and the included hardware—4 x M6 screws, 4 x M6 cage nuts, and 4 x M6 cup washers—simplifies installation. With an approximate weight of 5.95 lb (2700 g), the rail kit is lightweight yet sturdy, reducing rack load while maintaining structural integrity.
Key Product Advantages
This DIN rail kit delivers practical benefits for IT and industrial deployments, combining versatility, durability, and ease of use. The inclusion of multiple rail types allows for customized mounting setups, adapting to different equipment sizes and shapes without requiring additional components.
Space Optimization
Maximizes rack space with a 2U height and 19" width design, enabling efficient organization of DIN-rail devices in crowded environments.
- 2U rack height fits standard server racks
- 19" width ensures compatibility with common rack frames
- Adjustable rails accommodate varying equipment depths
Durable Construction
Built from cold-rolled steel for enhanced resistance to corrosion, impact, and wear, ensuring long-term reliability in harsh conditions.
- Cold-rolled steel (CRS) material
- 39.68 lb static weight capacity
- RoHS-compliant for environmental safety
Deployment / Use Cases
This rail kit is ideal for mounting DIN-rail compatible equipment in data centers, telecommunications cabinets, industrial control panels, and network closets. It supports devices like uninterruptible power supplies (UPS), power distribution units (PDU), surge protectors, and automation controllers, providing a secure and organized infrastructure.
Common applications include server rack installations where space is limited, industrial settings requiring robust mounting solutions, and IT environments needing flexible equipment arrangements. The kit's compatibility with standard 19" racks makes it a go-to choice for integrating power and network components into existing rack systems.
This section brings together practical product details such as Form Factor, Color Family, Product Color, Package Contents, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Physical Profile
The rail kit features a black finish that blends seamlessly with most rack and cabinet aesthetics, reducing visual clutter. Its compact dimensions—3.50" height, 18.98" width, and 14.11" depth—ensure it fits snugly within 2U rack spaces, while the lightweight design at 5.95 lb simplifies handling and installation. The cold-rolled steel construction provides a sturdy base that resists bending and deformation under load.
- Width
- 18.98" (482 mm)
- Depth
- 14.11" (358.40 mm)
- Height
- 3.50" (88.90 mm)
- Weight
- 39.68 lb (18000 g)
What's in the Box
The kit includes all necessary components for immediate deployment:
Highlights
- Includes Top Hat, Mini Top Hat, and G-Style rails for versatile mounting options
- Designed for 2U rack height and 19" rack width compatibility
- Constructed from durable cold-rolled steel (CRS) for long-lasting performance
- Supports static weight capacity up to 39.68 lb (18000 g)
- Black finish suits various rack and cabinet themes
- Comes with installation hardware: M6 screws, cage nuts, and cup washers
- RoHS-compliant for environmental safety
- Backed by a 2-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SRDINRAIL2U |
| Brand Name | Tripp Lite series |
| Product Model | SRDINRAIL2U |
| Product Name | Adjustable Rack-Mount DIN Rail Kit - Top Hat, Mini Top Hat and G-Style Rails |
| Product Type | Rack Rail |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Color Family | Black |
| Product Color | Black |
| Product Material | Cold-rolled Steel (CRS) |
| Static/Stationary Weight Capacity | 39.68 lb (18000 g) |
| Height | 3.50" (88.90 mm) |
| Width | 18.98" (482 mm) |
| Depth | 14.11" (358.40 mm) |
| Rack Height | 2U |
| Rack Width | 19" (482.60 mm) |
| Weight (Approximate) | 5.95 lb (2700 g) |
| Miscellaneous | |
| Package Contents | Adjustable Rack-Mount DIN Rail Kit - Top Hat, Mini Top Hat and G-Style Rails 4 x M6 Screws 4 x M6 Cage Nuts 4 x M6 Cup Washers Mini Top Hat Rail G-Style Rail |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What rack dimensions does this DIN rail kit support?
This kit is designed for standard 19" rack width and 2U rack height, making it compatible with most server racks and telecommunications cabinets. The dimensions ensure a precise fit without requiring modifications, allowing for efficient space utilization in data centers and industrial settings.
What is the weight capacity of the rail kit?
The rail kit has a static weight capacity of 39.68 lb (18000 g), enabling it to securely hold heavy DIN-rail mounted equipment such as power supplies or network devices. This capacity ensures reliable performance in demanding environments where equipment stability is crucial.
What materials are used in the construction of this rail kit?
The rail kit is constructed from cold-rolled steel (CRS), which provides excellent resistance to damage, corrosion, and wear. This material choice enhances durability, making the kit suitable for long-term use in harsh industrial or IT environments without compromising structural integrity.
What components are included in the package?
The package includes the Adjustable Rack-Mount DIN Rail Kit with Top Hat, Mini Top Hat, and G-Style rails, along with 4 x M6 screws, 4 x M6 cage nuts, and 4 x M6 cup washers. These components provide everything needed for immediate installation and mounting of DIN-rail compatible devices.
Is this rail kit environmentally compliant?
Yes, this rail kit is RoHS (Restriction of Hazardous Substances) compliant, ensuring it meets environmental safety standards by limiting the use of hazardous materials. This makes it a responsible choice for deployments where regulatory compliance and sustainability are priorities.
What is the warranty coverage for this product?
The rail kit comes with a 2-year limited warranty from Tripp Lite by Eaton, covering defects in materials and workmanship. This warranty provides assurance of quality and reliability, supporting long-term use in professional IT and industrial applications.
