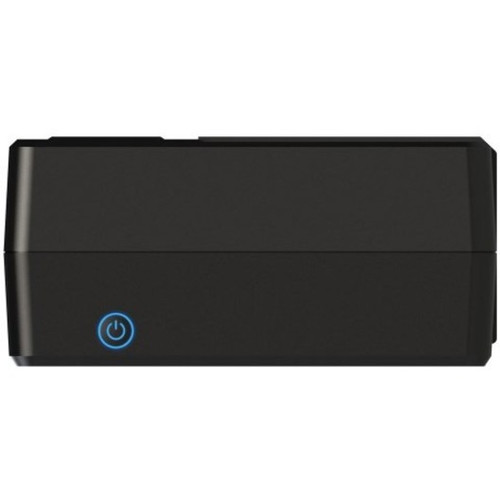

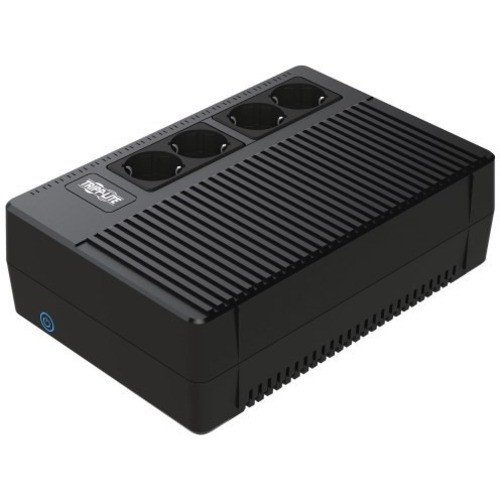

Tripp Lite by Eaton AVRX1000UD 1000VA/600W Ultra-compact Desktop/Tower/Wall Mount UPS with AVR - 4 Schuko Outlets - 8-Hour Recharge
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This line-interactive UPS maintains stable 220-240 V AC output across an input range of 220-240 V AC, with precise 60 Hz frequency matching. Its pulse-width modulated sine wave output ensures compatibility with sensitive active PFC electronics found in modern servers and networking gear. The integrated EMI/RFI noise filter suppresses line interference, while a 156-joule surge energy rating guards against voltage spikes.
The 12 V DC battery system supports a 1-second backup at full 600W load and extends to 1.20 minutes at half load, providing critical ride-through for orderly shutdowns or brief outages. Thermal dissipation is managed at 102.39 BTU/h, with reliable operation up to 104°F (40°C) and storage tolerance from 5°F to 113°F (-15°C to 45°C).
Power Quality Features
AVR corrects undervoltage and overvoltage conditions within ±15% without draining the battery, while the EMI/RFI filter cleans electrical noise for sensitive equipment.
- Automatic Voltage Regulation
- EMI/RFI Noise Filter
- PWM Sine Wave Output
Key Product Advantages
The AVRX1000UD delivers essential UPS functionality in a space-saving form factor, backed by Tripp Lite by Eaton's engineering for small office and edge computing environments.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Compact Versatility, Efficient Power Management.
Compact Versatility
Its ultra-compact chassis measures just 3.58" high, allowing flexible placement as a desktop unit, tower, or wall-mounted installation to conserve floor and rack space.
- Desktop, Tower, or Wall Mount
- Minimal Footprint
- 13 lb Weight for Easy Handling
Efficient Power Management
Greater than 95% efficiency reduces operating costs and heat generation, while the GREEN UPS designation highlights its energy-saving design for continuous operation.
- High Efficiency Operation
- Reduced Thermal Output
- Cost-Effective Runtime
Deployment / Use Cases
This 1000VA UPS is tailored for protecting critical loads where space constraints and power quality are concerns. Its 600W capacity and Schuko outlets suit European voltage standards for office and light commercial applications.
Ideal deployments include under-desk mounting for desktop workstations and point-of-sale systems, wall mounting in network closets for routers and switches, or tower placement near small servers and surveillance DVRs. The 1-second full-load backup provides sufficient time for connected systems to initiate safe shutdown procedures during blackouts.
Small Office & Home Office
Safeguard desktops, monitors, Wi-Fi routers, and VoIP phones from power interruptions and voltage fluctuations in home offices and small business settings.
- Desktop Computers
- Network Equipment
- CCTV Cameras
Edge & Network Infrastructure
Protect network switches, access points, and compact servers in branch offices, retail locations, or remote sites where consistent power is critical for uptime.
- Network Devices
- Light Server Loads
- Surveillance Systems
Physical Profile
The ultra-compact chassis measures 3.58" high, 7.48" wide, and 11.02" deep (91 x 190 x 280 mm), with a lightweight 13.01 lb (5900 g) construction for easy placement. Its neutral design integrates discreetly into office and IT environments, with optional wall-mount capability using standard hardware. The form factor supports vertical tower orientation or low-profile horizontal placement under monitors and desks.
- Width
- 7.48" (190 mm)
- Depth
- 11.02" (280 mm)
- Height
- 3.58" (91 mm)
- Weight
- 13.01 lb (5900 g)
What's in the Box
The package includes the AVRX1000UD UPS unit and an owner's manual for setup and reference.
Highlights
- 1000VA/600W line-interactive UPS with automatic voltage regulation (AVR)
- Ultra-compact design supports desktop, tower, or wall-mount installation
- Four Schuko CEE 7/7 outlets for 230V AC equipment
- Greater than 95% efficiency as a GREEN UPS for reduced energy costs
- 10ms transfer time with EMI/RFI noise filtering for clean power
- 1-second backup at full load, 1.20 minutes at half load
- 8-hour typical battery recharge time after complete discharge
- LED status indicators and audible alarms for power events
- RoHS compliant and environmentally friendly construction
- 2-year limited warranty from Tripp Lite by Eaton
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | AVRX1000UD |
| Brand Name | Tripp Lite series |
| Product Series | AVR |
| Product Model | AVRX1000UD |
| Product Name | AVRX1000UD 1000VA Ultra-compact Desktop/Tower/Wall Mount UPS |
| Product Type | Line-interactive UPS |
| Technical Information | |
| AVR | Yes |
| Plug/Connector Type | Schuko CEE 7/7 |
| Receptacle Type | Schuko CEE 7/7 |
| Receptacle Detail | 4 x Schuko CEE 7/7 |
| Transfer Time | 10 ms |
| EMI/RFI Noise Filter | Yes |
| Phase | Single Phase |
| Energy Saving | Greater than 95% efficiency - GREEN UPS |
| Application/Usage | Desktop,Workstation,Home,Office,Network Device,Business,Wi-Fi Router,CCTV Camera,Home Theater,Server |
| Power Description | |
| Load Capacity (VA) | 1 kVA |
| Load Capacity (Watt) | 600 W |
| Input Voltage | 230 V AC |
| Input Voltage Range | 220 V AC - 240V AC |
| Output Voltage | 220 V AC,230 V AC,240 V AC |
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Surge Energy Rating | 156 J |
| Management | |
| Alarm | Power Failure,Low Battery,Overload,Fault,Battery Failure |
| Controls/Indicators | |
| Status Indicators | LED Indicators: Lighted LED Power Switch Power-Failure Low-Battery Overload Fault Battery Expired |
| Battery Information | |
| DC System Voltage | 12 V DC |
| Backup/Run Time (Full Load) | 1 Second |
| Backup/Run Time (Half Load) | 1.20 Minute |
| Typical Battery Recharge Time | 8 Hour |
| Environmental Conditions | |
| Maximum Operating Elevation | 6561.68 ft (2000000 mm) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Thermal Dissipation | 102.39 BTU/h |
| Physical Characteristics | |
| Height | 3.58" (91 mm) |
| Width | 7.48" (190 mm) |
| Depth | 11.02" (280 mm) |
| Form Factor | Ultra-compact Desktop/Tower/Wall Mount |
| Weight (Approximate) | 13.01 lb (5900 g) |
| Miscellaneous | |
| Package Contents | AVRX1000UD 1000VA Ultra-compact Desktop/Tower/Wall Mount UPS Owner's Manual |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the power capacity of the AVRX1000UD UPS?
The AVRX1000UD provides 1000VA (1 kVA) apparent power and 600W real power capacity. This rating supports typical loads like desktop computers, monitors, network switches, and small servers within its 600-watt limit for battery-backed runtime.
How long does the battery backup last during a power outage?
At full 600W load, the UPS delivers 1 second of backup time, allowing connected systems to initiate safe shutdowns. At half load (300W), runtime extends to 1.20 minutes, providing longer ride-through for less demanding equipment like networking gear or surveillance systems.
What type of outlets does this UPS have?
This unit includes four Schuko CEE 7/7 outlets, which are standard European-style sockets for 230V AC equipment. They are suitable for plugs commonly used in offices and homes across regions with 220-240V power standards.
Can this UPS be mounted on a wall?
Yes, the AVRX1000UD supports wall mounting in addition to desktop or tower placement. Its ultra-compact dimensions of 3.58" H x 7.48" W x 11.02" D and lightweight 13 lb design allow flexible installation using standard mounting hardware to save space.
What is the recharge time for the battery?
After a complete discharge, the typical battery recharge time is 8 hours. This ensures the UPS is ready for the next outage and maintains optimal battery health through controlled charging cycles.
Does this UPS include automatic voltage regulation (AVR)?
Yes, the AVRX1000UD features automatic voltage regulation that corrects minor sags and surges without switching to battery power. This extends battery life and provides continuous clean power during common voltage fluctuations within ±15% of nominal.
What power capacity is listed for this UPS?
The listed power specification is 1 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 230 V AC, which helps position the unit for the right load level and installation role.
