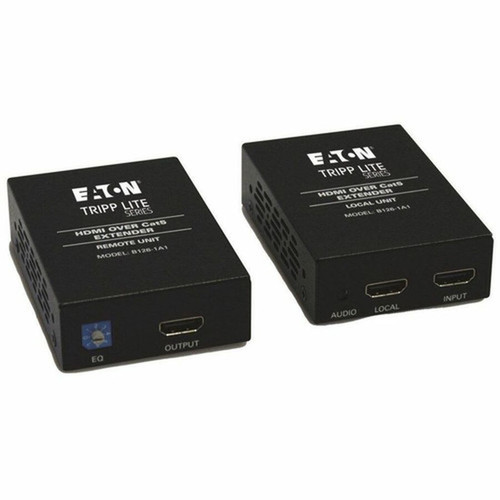

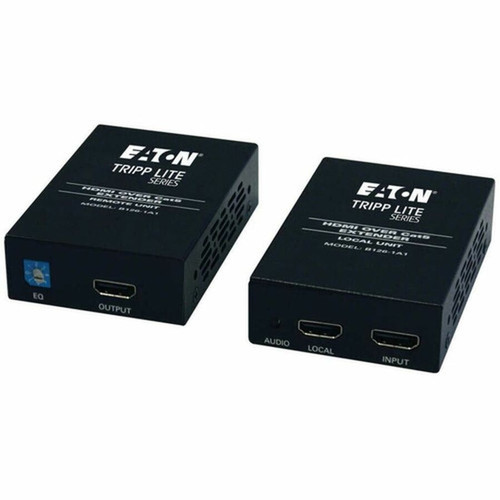

Tripp Lite by Eaton B126-1A1 Tripp Lite Video Extender/Console - 2 Input/2 Output - 150 ft Range - 1080p HDMI - Rack/Wall Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This video extender utilizes wired connectivity over Category 6 Ethernet cable to achieve reliable signal transmission up to 150 feet (45.7 meters). The system requires no software installation or drivers, offering true plug-and-play operation compatible with all operating systems and HDMI video sources. Built-in equalization control allows technicians to fine-tune the monitor image for optimal clarity over extended distances.
The B126-1A1 features two network (RJ-45) ports for the twisted-pair connection between units. The transmitter unit accepts one HDMI input, while the receiver unit provides two HDMI outputs for display connectivity. This configuration supports daisy-chaining or splitting to multiple monitors from a single source.
Relevant factors for this section include Connectivity Technology, Number of Input Devices Supported, Number of Output Devices Supported, Network (RJ-45). When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The B126-1A1 simplifies AV system design by removing distance constraints between sources and displays. Unlike wireless solutions that can suffer from interference or compression artifacts, this wired extender maintains signal integrity over extended runs while supporting high-bandwidth audio formats.
Extended Reach Without Compromise
Transmit uncompressed 1080p video and lossless multi-channel audio up to 150 feet using affordable Cat6 cable instead of expensive HDMI fiber optic solutions.
- Eliminates HDMI cable length limitations
- Uses standard network infrastructure
- Maintains full signal quality
Installation Flexibility
The rack-mountable and wall-mountable design adapts to various installation environments, while the included mounting hardware and external power supplies ensure complete out-of-box readiness.
- Dual mounting options
- Complete hardware included
- External power for clean installation
Universal Compatibility
Works seamlessly with any HDMI source device including computers, media players, gaming consoles, and cameras, regardless of operating system or platform.
- No driver dependencies
- Supports all HDMI sources
- True plug-and-play operation
Deployment / Use Cases
The Tripp Lite B126-1A1 excels in professional and commercial environments where reliable video extension is critical. Its 150-foot range and dual HDMI outputs make it ideal for distributing content from a central source to multiple displays throughout a facility.
In corporate settings, the extender enables clean installations where presentation laptops can remain at a podium while transmitting to wall-mounted displays in conference rooms. For digital signage applications, it allows media players to be secured in equipment racks while driving displays in lobby areas or retail spaces. The system also serves home theater installations where source components need to be located away from the viewing area for aesthetic or space considerations.
What's in the Box
The package includes everything needed for immediate deployment of the video extension system.
Highlights
- Extends HDMI signals up to 150 feet over Category 6 cable
- Supports 1080p video resolution at 60 Hz refresh rate
- Delivers stereo and 7.1-channel surround sound audio
- Plug-and-play operation with no software or drivers required
- Built-in equalization control for image optimization
- One HDMI input to two HDMI outputs configuration
- Rack-mountable and wall-mountable form factor
- TAA compliant for government and education projects
- Works with all operating systems and HDMI sources
- Includes complete mounting hardware and power supplies
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | B126-1A1 |
| Brand Name | Tripp Lite series |
| Product Model | B126-1A1 |
| Product Name | B126-1A1 Video Extender/Console |
| Product Type | Video Extender Transmitter/Receiver |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Input Devices Supported | 2 |
| Number of Output Devices Supported | 2 |
| Maximum Operating Distance | 150 ft (45720 mm) |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI In | Yes |
| HDMI Out | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 2 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 6 |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Rack-mountable,Wall Mountable |
| Miscellaneous | |

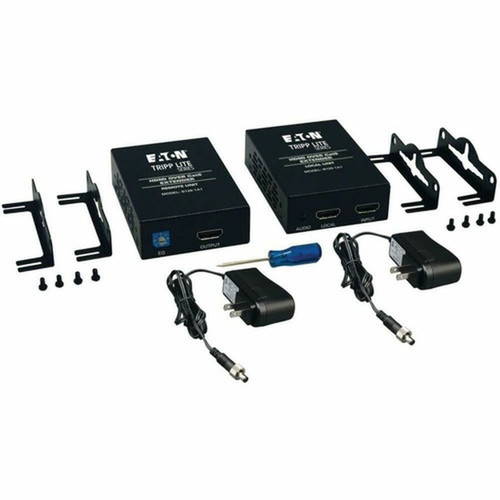

| Package Contents | B126-1A1 Video Extender/Console Screwdriver for Adjustment of Equalization 2 x Mounting Hardware 2 x External Power Supply Owner's manual |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Warranty | |
| Limited Warranty | 1 Year |
User Manual
FAQ
What is the maximum distance this video extender can transmit signals?
The Tripp Lite B126-1A1 can transmit HDMI video and audio signals up to 150 feet (45.7 meters) when using Category 6 twisted-pair Ethernet cable between the transmitter and receiver units. This extended range allows source devices to be located remotely from displays in conference rooms, digital signage installations, and other AV applications.
How many displays can I connect to this video extender system?
The B126-1A1 configuration includes one HDMI input on the transmitter unit and two HDMI outputs on the receiver unit, allowing you to connect a single source device to two displays simultaneously. This is ideal for situations where the same content needs to appear on multiple screens, such as in conference rooms or digital signage arrays.
Does this extender require special software or drivers to operate?
No, the Tripp Lite B126-1A1 operates as a true plug-and-play device that requires no software installation or driver configuration. It works automatically with all operating systems and compatible HDMI source devices, including computers, media players, gaming consoles, and cameras, simplifying deployment in diverse environments.
What mounting options are available for this video extender?
The B126-1A1 features a versatile form factor that supports both rack mounting and wall mounting installations. The package includes all necessary mounting hardware, allowing the units to be securely installed in equipment racks, on walls, or in other discreet locations as required by your AV system design.
What type of cable do I need to connect the transmitter and receiver units?
The extender uses standard Category 6 twisted-pair Ethernet cable (Cat6) to connect the transmitter and receiver units. This affordable, widely available cable type transmits both power and signals between the units over distances up to 150 feet, eliminating the need for expensive proprietary cables or complex fiber optic solutions.
What screen size is listed?
Tripp Lite series B126-1A1 Video Extender/Console - 2 Input Device - 2 Output Device - 150 ft (45720 mm) Range - 2 x Network (RJ-45) - (B126-1A1) is best judged through its screen, connectivity, and installation specifications, which help buyers confirm visual fit and deployment suitability.
