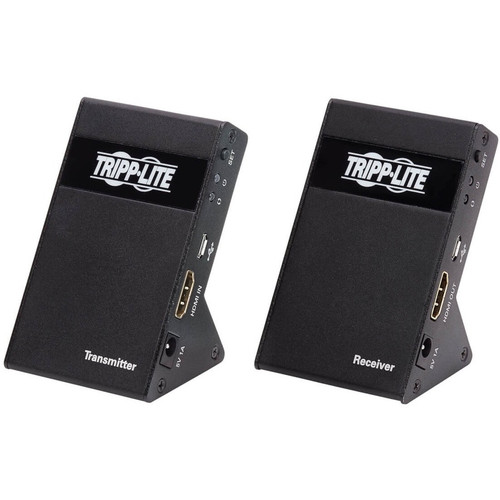

Tripp Lite series B127-1A1-WHD1 Video Extender Transmitter/Receiver - 1 Input Device - 1 Output Device - 98 ft (29870.40 mm) Range - 2 (B127-1A1-WHD1)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC

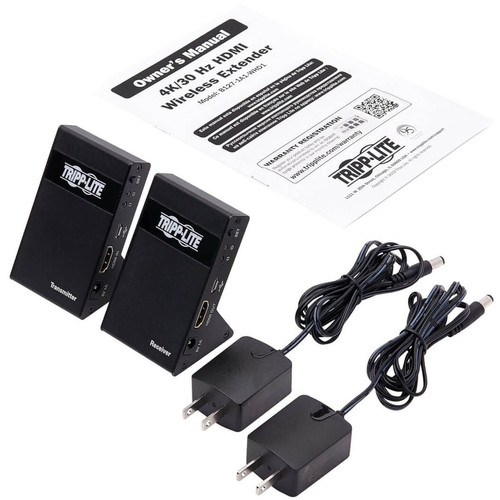

Product Features
- Transmitter Unit
- Receiver Unit
- 2 x External power supplies w/NEMA 1-15P plugs (Input: 100-240V, 50/60 Hz, 0.2A; Output: 5V 1A)
- Owner's Manual
Connectivity Technology: Wireless
Number of Input Devices Supported: 1
Number of Output Devices Supported: 1
Maximum Operating Distance: 98 ft (29870.40 mm)
Graphics Modes: 4K
Maximum Video Resolution: 3840 x 2160

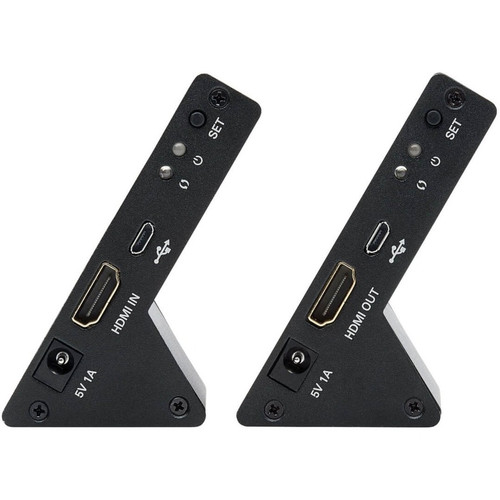

HDMI In: Yes
HDMI Out: Yes
USB: Yes
Number of USB Ports: 2
Number of HDMI Inputs: 1
Number of HDMI Outputs: 1
Color Family: Black
Product Color: Black
Transmitter Height: 3.11" (78.99 mm)
Transmitter Width: 2.13" (54.10 mm)
Transmitter Depth: 2.29" (58.17 mm)
Receiver Height: 3.11" (78.99 mm)
Receiver Width: 2.13" (54.10 mm)
Receiver Depth: 2.29" (58.17 mm)
Transmitter Weight (Approximate): 4.16 oz (117.93 g)
Receiver Weight (Approximate): 4.16 oz (117.93 g)
Package Contents:
Country of Origin: China
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Limited Warranty: 1 Year
- Display HDMI audio/video up to 98 ft. (30 m) away with no costly cable installation
- Delivers UHD picture quality at resolutions up to 3840 x 2160 (4K x 2K) @ 60 Hz
- Provides full, rich 7.1-channel sound for realistic video gaming and live televised events
- Features 10.2 Gbps of bandwidth to ensure almost zero latency for premium viewing
- Easy plug-and-play operation-just connect the transmitter and receiver and play video
- 1-year limited warranty
[custom-specifications]
| Specifications | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | B127-1A1-WHD1 |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Brand Name | Tripp Lite series |
| Product Model | B127-1A1-WHD1 |
| Product Name | B127-1A1-WHD1 Video Extender Transmitter/Receiver |
| Product Type | Video Extender Transmitter/Receiver |
| Technical Information | |
| Connectivity Technology | Wireless |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 1 |
| Maximum Operating Distance | 98 ft (29870.40 mm) |
| Video | |
| Graphics Modes | 4K |
| Maximum Video Resolution | 3840 x 2160 |
| Interfaces/Ports | |
| HDMI In | Yes |
| HDMI Out | Yes |
| USB | Yes |
| Number of USB Ports | 2 |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 1 |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Transmitter Height | 3.11" (78.99 mm) |
| Transmitter Width | 2.13" (54.10 mm) |
| Transmitter Depth | 2.29" (58.17 mm) |
| Receiver Height | 3.11" (78.99 mm) |
| Receiver Width | 2.13" (54.10 mm) |
| Receiver Depth | 2.29" (58.17 mm) |
| Transmitter Weight (Approximate) | 4.16 oz (117.93 g) |
| Receiver Weight (Approximate) | 4.16 oz (117.93 g) |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 1 Year |
[/custom-specifications]
[custom-options]
[/custom-options]
[custom-user-manual]
Available Documentation:
Additional-pdf1
Manufacturer-Brochure
[/custom-user-manual]
| Qty | Price | Available |
|---|
