Tripp Lite series B140-101X-U video Console/Extender - 1 Input Device - 1 Output Device - 125 ft (38100 mm) Range - 2 x Network - 2 x (B140-101X-U)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- Transmitter Unit
- Receiver Unit

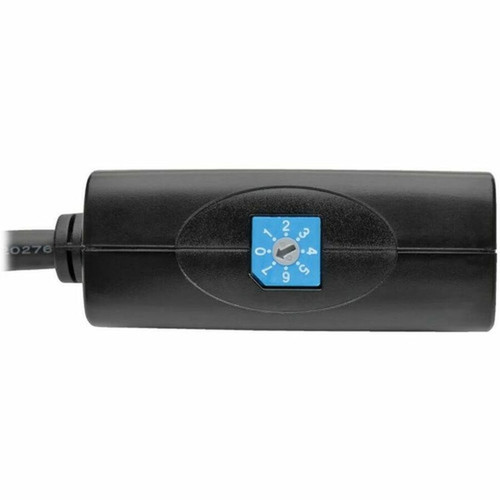

- Screwdriver for Adjusting Equalization
- USB Micro-B Cable, 3 ft.
- Owner's Manual
Connectivity Technology: Wired
Number of Input Devices Supported: 1
Number of Output Devices Supported: 1
Maximum Operating Distance: 125 ft (38100 mm)
Graphics Modes: WUXGA
Maximum Video Resolution: 1920 x 1200
Network (RJ-45): Yes
DVI In: Yes
DVI Out: Yes
USB: Yes
Number of Network (RJ-45) Ports: 2
Number of USB Ports: 2
Number of DVI Inputs: 1
Number of DVI Outputs: 1
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 6
Package Contents:
Country of Origin: Taiwan
TAA Compliant: Yes
Environmentally Friendly: Yes
Limited Warranty: 1 Year
- Supports computer video resolutions up to 1920 x 1200 (60
- Hz)
- Supports high-definition video resolutions up to 1080p
- USB Micro-B port supplies power to the receiver
- Works with all operating systems
- Plug and play-no software or drivers to install
[custom-specifications]
| Specifications | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | B140-101X-U |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Brand Name | Tripp Lite series |
| Product Model | B140-101X-U |
| Product Name | B140-101X-U video Console/Extender |
| Product Type | Video Extender Transmitter/Receiver |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 1 |
| Maximum Operating Distance | 125 ft (38100 mm) |
| Video | |
| Graphics Modes | WUXGA |
| Maximum Video Resolution | 1920 x 1200 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| DVI In | Yes |
| DVI Out | Yes |
| USB | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of USB Ports | 2 |
| Number of DVI Inputs | 1 |
| Number of DVI Outputs | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 6 |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Warranty | |
| Limited Warranty | 1 Year |
[/custom-specifications]
[custom-options]
| Product | Tripp Lite series 2-Port USB Wall/Travel Charger, 5V, 1.0/2.4A - 5 V DC Output - 2.40 A |
| SKU | U280-002-W12 |
| Sale Price | $20.95 |
[/custom-options]
[custom-user-manual]
Available Documentation:
Manufacturer-Brochure
Additional-pdf1
[/custom-user-manual]
