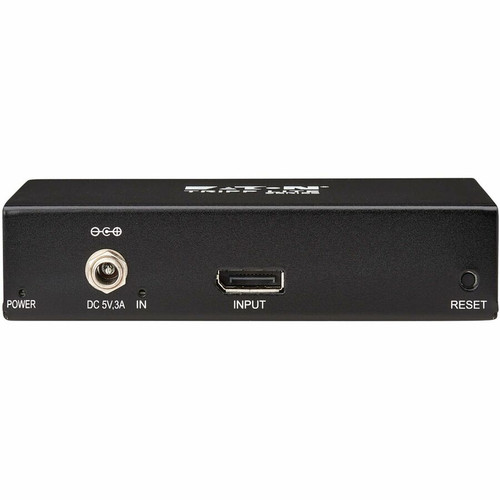

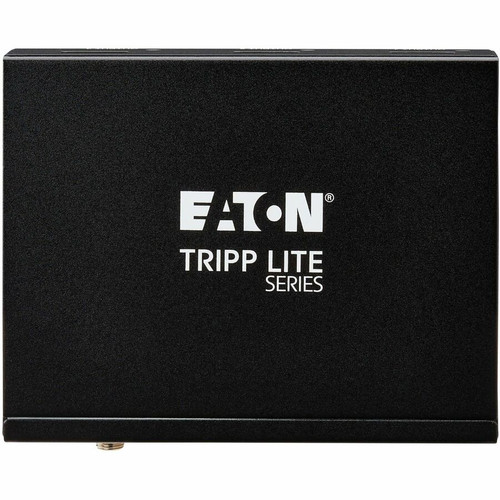

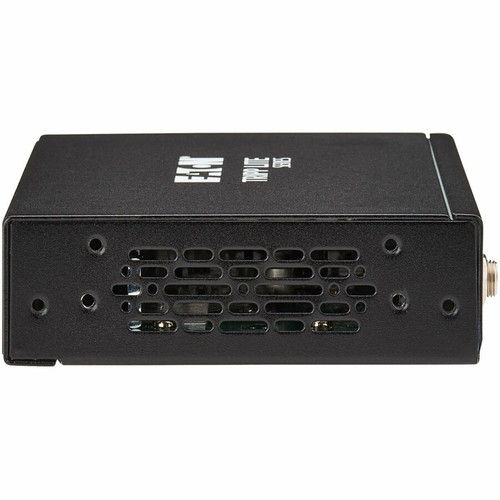

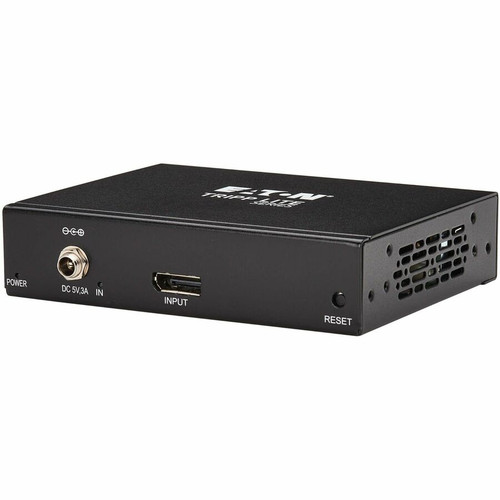

Tripp Lite series B156-003-8K 3-Port DisplayPort to DisplayPort Multi-Monitor Splitter - 60 Hz to 60 Hz - 11520 x 2160 - Monitor, PC - (B156-003-8K)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- B156-003-8K 3-Port DisplayPort to DisplayPort Multi-Monitor Splitter
- External power supply (Input: 100-240V, 50/60 Hz, 0.6A; Output: 5V 3A) with 4.5 ft. cord
- 4 x International plug adapters (North America, Europe, U.K., Australia)
- Mounting hardware
- Installation guide
Maximum Frequency: 60 Hz
Maximum Video Resolution: 11520 x 2160
DisplayPort: Yes
Number of DisplayPort Inputs: 1
Number of DisplayPort Outputs: 3
Input Voltage: 120 V AC,230 V AC
Product Material: ABS Plastic
Connector Plating: Nickel
Height: 1.16" (29.46 mm)
Width: 5.03" (127.76 mm)
Depth: 3.93" (99.82 mm)
Weight (Approximate): 1.50 lb (680.39 g)
Package Contents:
Application/Usage: Monitor,PC
Country of Origin: Taiwan
TAA Compliant: Yes
Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS)
Limited Warranty: 1 Year
- Split CATV and other signals with this satellite splitter so that it can be used for more than one device
- Supports up to 60 Hz frequency
- Up to 11520 x 2160 video resolution.
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
[custom-specifications]
| Specifications | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | B156-003-8K |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Brand Name | Tripp Lite series |
| Product Model | B156-003-8K |
| Product Name | B156-003-8K 3-Port DisplayPort to DisplayPort Multi-Monitor Splitter |
| Product Type | Signal Splitter |
| Technical Information | |
| Maximum Frequency | 60 Hz |
| Video | |
| Maximum Video Resolution | 11520 x 2160 |
| Interfaces/Ports | |
| DisplayPort | Yes |
| Number of DisplayPort Inputs | 1 |
| Number of DisplayPort Outputs | 3 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Physical Characteristics | |
| Product Material | ABS Plastic |
| Connector Plating | Nickel |
| Height | 1.16" (29.46 mm) |
| Width | 5.03" (127.76 mm) |
| Depth | 3.93" (99.82 mm) |
| Weight (Approximate) | 1.50 lb (680.39 g) |
| Miscellaneous | |
| Package Contents |
|
| Application/Usage | Monitor,PC |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 1 Year |
[/custom-specifications]
[custom-options]
[/custom-options]
[custom-user-manual]
Available Documentation:
Manufacturer-Brochure
Additional-pdf1
User-Manual
[/custom-user-manual]
