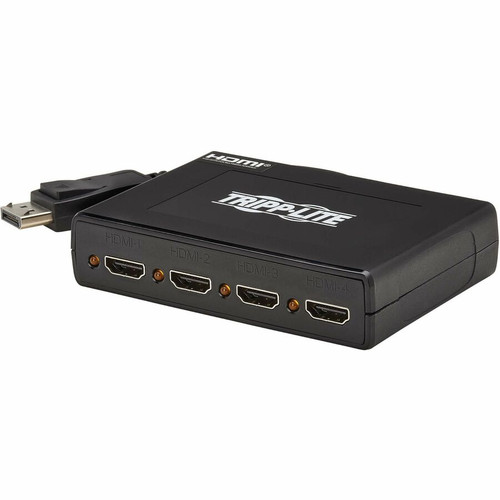

Tripp Lite series B156-004-HD-V3 4-Port DisplayPort to HDMI MultiMonitor Splitter - 3840 x 2160 - DisplayPort - 4 x HDMI Out - Gold, - (B156-004-HD-V3)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- B156-004-HD-V3 4-Port DisplayPort to HDMI MultiMonitor Splitter
- External power supply (Input: 100-240V, 50/60 Hz, 0.35A; Output: 5V 3A)
- 4 x International plug adapters (North America, U.K., Australia, Europe)
- Owner's manual
Maximum Video Resolution: 3840 x 2160
DisplayPort: Yes
HDMI Out: Yes
Number of DisplayPort Inputs: 1
Number of HDMI Outputs: 4
Input Voltage: 120 V AC,230 V AC
Product Material: Plastic
Connector Plating: Gold,Nickel
Height: 4.25" (107.95 mm)
Width: 2.95" (74.93 mm)
Depth: 0.94" (23.88 mm)
Weight (Approximate): 3.20 oz (90.72 g)
Package Contents:
Country of Origin: Taiwan
TAA Compliant: Yes
Environmentally Friendly: Yes
Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS)
Limited Warranty: 3 Year
- Split CATV and other signals with this satellite splitter so that it can be used for more than one device
- 3840 x 2160 resolution for high-quality video delivery
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- HDMI (High Definition Multimedia Interface) offers fantastic sound/video quality and single-cable comfort
[custom-specifications]
| Specifications | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | B156-004-HD-V3 |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Brand Name | Tripp Lite series |
| Product Model | B156-004-HD-V3 |
| Product Name | B156-004-HD-V3 4-Port DisplayPort to HDMI MultiMonitor Splitter |
| Product Type | Signal Splitter |
| Video | |
| Maximum Video Resolution | 3840 x 2160 |
| Interfaces/Ports | |
| DisplayPort | Yes |
| HDMI Out | Yes |
| Number of DisplayPort Inputs | 1 |
| Number of HDMI Outputs | 4 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Physical Characteristics | |
| Product Material | Plastic |
| Connector Plating | Gold,Nickel |
| Height | 4.25" (107.95 mm) |
| Width | 2.95" (74.93 mm) |
| Depth | 0.94" (23.88 mm) |
| Weight (Approximate) | 3.20 oz (90.72 g) |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Manufacturer-Brochure
User-Manual
[/custom-user-manual]
