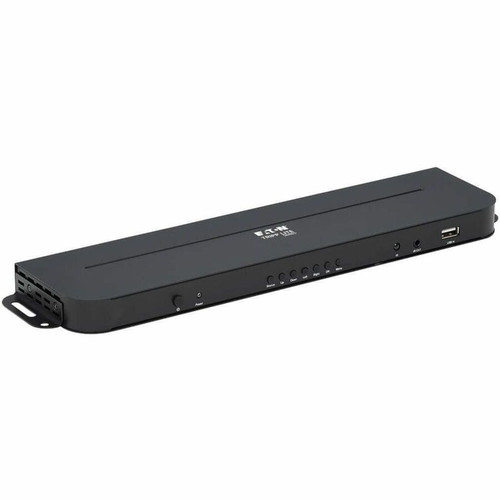

Tripp Lite by Eaton B310-701-4K 7-Port MultiFormat Presentation Switch - 4K 4096 x 2160 - 5 Inputs to 1 Display - HDMI - VGA - DisplayPort
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview

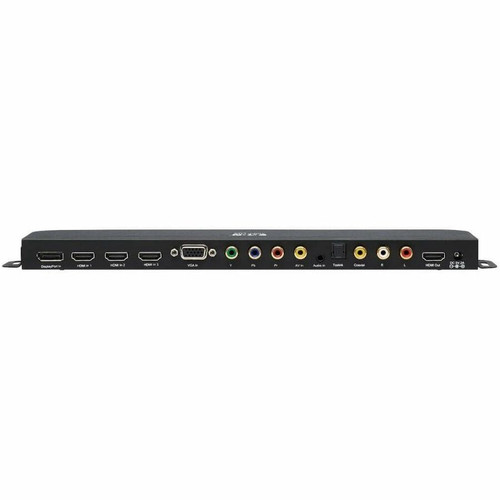

Engineered for reliable signal distribution, the B310-701-4K accepts video inputs through three HDMI ports, one VGA port, and one DisplayPort. The single HDMI output delivers the selected source to the display. A USB port is included for potential firmware updates or accessory connectivity.
The switch operates via cable-based connectivity and includes an IR remote control with a receiver head cable for convenient source selection from across the room. The external power supply supports worldwide voltage ranges from 100-240V AC at 50/60 Hz, with a 5V 2A DC output, and comes with four international plug adapters for North America, U.K., Europe, and Australia.
Key Product Advantages
This presentation switch centralizes control of multiple video sources, reducing cable clutter and setup time while maintaining signal integrity at 4K resolution. Its multi-format input support accommodates legacy and modern devices in mixed IT environments.
Eliminate Manual Switching
Switch between five different source devices—like laptops, Blu-ray players, or cameras—without physically disconnecting and reconnecting cables. The remote control allows seamless source selection from anywhere in the room.
- Remote-operated switching
- No cable swapping needed
- Reduces wear on connectors
4K Resolution Support
Delivers ultra-high-definition video at 4096 x 2160 resolution, ensuring detailed imagery for presentations, video playback, and data displays. Maintains signal quality across HDMI, VGA, and DisplayPort inputs.
- 4096×2160 pixel output
- 4K graphics mode
- Sharp text and graphics
Flexible Installation Options
Mount the switch in a standard 19-inch rack, on a wall, or on a pole using included hardware. The slim 0.81-inch width and lightweight design make it easy to integrate into existing AV racks or discreet installations.
- Rack-mountable design
- Wall and pole mountable
- Compact footprint
Deployment / Use Cases
The B310-701-4K is built for scenarios where multiple video sources must share a single high-resolution display. Its multi-format input capability makes it versatile across different device generations and connection types.
In corporate conference rooms, connect presenter laptops via HDMI, VGA, or DisplayPort to a central 4K projector or large-format display. For digital signage in retail or hospitality, switch between media players, computers, and live feeds without interrupting the displayed content. In education settings, allow instructors to toggle between document cameras, laptops, and tablets on a classroom display. Control rooms can use it to route surveillance feeds or data sources to a monitoring screen.
Physical Profile
The switch features a compact, vertical design measuring 11.81 inches in height, 0.81 inches in width, and 2.95 inches in depth. Its lightweight construction at 1.12 pounds allows for easy handling and installation. The unit includes mounting hardware for rack, wall, or pole placement, offering flexibility in both permanent and temporary setups.
- Width
- 0.81" (20.57 mm)
- Depth
- 2.95" (74.93 mm)
- Height
- 11.81" (299.97 mm)
- Weight
- 1.12 lb (510 g)
What's in the Box
The package includes all necessary components for immediate deployment and operation.
Highlights
- Routes 5 video input sources to 1 display output
- Supports 4K resolution at 4096 x 2160
- Accepts HDMI, VGA, and DisplayPort inputs
- Includes IR remote control for easy source selection
- Rack-mountable, wall-mountable, and pole-mountable form factor
- Worldwide power supply with four international plug adapters
- Compact design: 11.81" H × 0.81" W × 2.95" D
- Lightweight at 1.12 pounds for easy installation
- 3-year limited warranty from Tripp Lite by Eaton
- Manufactured in Vietnam
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | B310-701-4K |
| Brand Name | Tripp Lite series |
| Product Model | B310-701-4K |
| Product Name | B310-701-4K 7-Port MultiFormat Presentation Switch |
| Product Type | Audio/Video Switchbox |
| Technical Information | |
| Connectivity Technology | Cable |
| Number of Input Devices Supported | 5 |
| Device Supported | Display |
| Number of Displays Supported | 1 |
| Video | |
| Graphics Modes | 4K |
| Maximum Video Resolution | 4096 x 2160 |
| Interfaces/Ports | |
| HDMI In | Yes |
| HDMI Out | Yes |
| VGA In | Yes |
| DisplayPort | Yes |
| Number of USB Ports | 1 |
| Number of HDMI Inputs | 3 |
| Number of HDMI Outputs | 1 |
| Number of VGA Inputs | 1 |
| Number of DisplayPort Inputs | 1 |
| Physical Characteristics | |
| Form Factor | Rack-mountable,Wall Mountable,Pole |
| Height | 11.81" (299.97 mm) |
| Width | 0.81" (20.57 mm) |
| Depth | 2.95" (74.93 mm) |
| Weight (Approximate) | 1.12 lb (510 g) |
| Miscellaneous | |
| Package Contents | B310-701-4K 7-Port MultiFormat Presentation Switch IR Remote control IR Receiver head cable External power supply with 5 ft. cord (Input: 100-240V, 50/60 Hz, 0.4A; Output: 5V 2A) 4 x International plug adapters (North America, U.K., Europe, Australia) Mounting hardware Owner's manual |
| Country of Origin | Vietnam |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What video resolutions does the B310-701-4K switch support?
The switch supports up to 4K resolution with a maximum video output of 4096 x 2160 pixels. This ensures compatibility with ultra-high-definition displays and content sources, providing sharp image quality for presentations, videos, and digital signage.
How many input devices can I connect to this presentation switch?
You can connect up to five input devices simultaneously. The switch includes three HDMI inputs, one VGA input, and one DisplayPort input, allowing a mix of modern and legacy video sources to be routed to a single display.
Does the switch come with a remote control?
Yes, the B310-701-4K includes an IR remote control with an IR receiver head cable. This allows you to switch between connected input sources conveniently from across the room, eliminating the need to manually interact with the switch unit.
What are the mounting options for this switch?
The switch is designed for flexible installation with rack-mountable, wall-mountable, and pole-mountable form factors. Mounting hardware is included in the package, making it suitable for integration into AV racks, wall panels, or temporary setups like trade show displays.
What power requirements does the switch have?
The switch uses an external power supply that accepts 100-240V AC input at 50/60 Hz and provides 5V 2A DC output. The package includes four international plug adapters for North America, U.K., Europe, and Australia, supporting deployment in various regions.
What warranty coverage is provided with the B310-701-4K?
Tripp Lite by Eaton provides a 3-year limited warranty for this presentation switch. This warranty covers defects in materials and workmanship under normal use, offering assurance of product reliability for professional AV installations.
