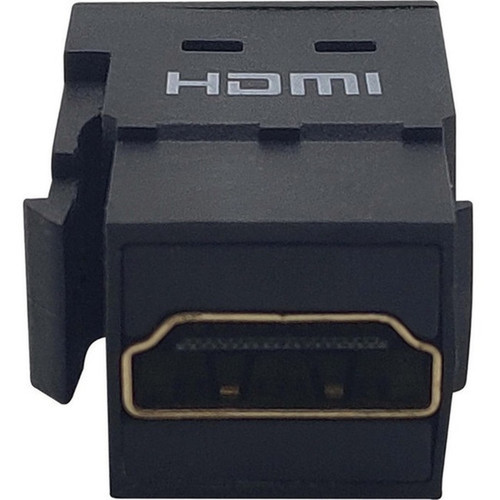

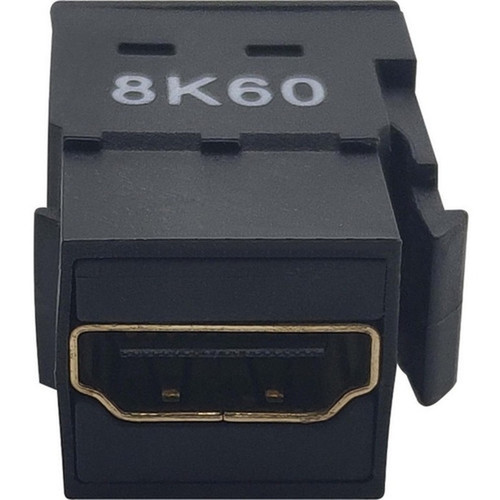

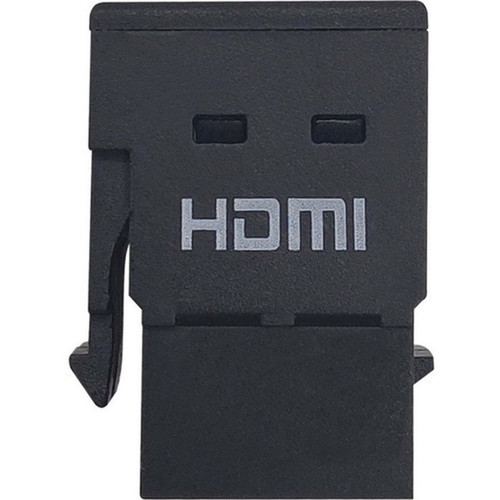

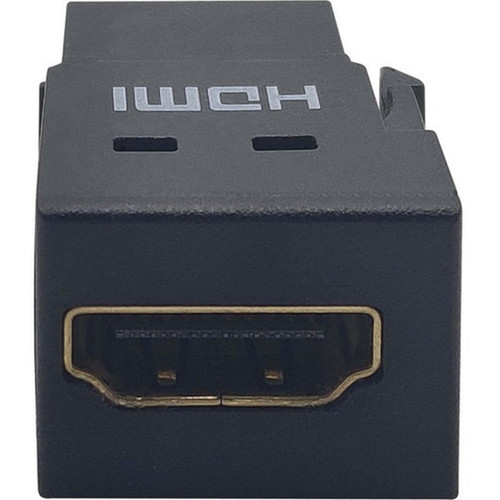

Tripp Lite by Eaton P164-000-KPBK8K Tripp Lite HDMI Keystone/Panel-Mount Coupler - F/F - 8K 60 Hz - 7680 x 4320 - Gold Connector - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This HDMI coupler is engineered to handle bandwidth-intensive 8K video streams while maintaining signal clarity and stability. It supports HDCP 1.4 and HDCP 2.2 content protection protocols, ensuring seamless playback of protected media from sources like Blu-ray players, streaming devices, and gaming systems. HDR support enhances color depth and contrast for a more vibrant viewing experience.
The all-female HDMI configuration allows for direct panel-mount integration, eliminating the need for additional gender changers or loose cables. The gold plating on both the connector shell and internal contacts minimizes oxidation and maintains optimal electrical conductivity, which is critical for high-frequency digital signals over long-term installations.
This section brings together practical product details such as Adapter Type, Connector Type on First End, Connector on First End Details, Color Family, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This keystone coupler combines high-performance video support with durable construction for reliable AV infrastructure. Its design focuses on seamless integration and long-term reliability in professional and commercial environments.
Ultra HD Compatibility
Supports 8K resolution at 60 Hz, future-proofing installations for next-generation displays and media sources while maintaining backward compatibility with 4K, 1080p, and lower resolutions.
- 7680 x 4320 maximum resolution
- 60 Hz refresh rate for smooth motion
- HDCP 1.4/2.2 for protected content
Durable Construction
Gold-plated connectors and contacts resist corrosion and tarnish, ensuring consistent signal quality and reducing maintenance needs in permanent installations.
- Gold connector and contact plating
- PVC and ABS housing for impact resistance
- Molded strain relief for cable protection
Easy Integration
Designed for keystone and panel-mount applications, the coupler snaps into standard wall plates and patch panels for a clean, organized AV setup without dangling adapters.
- Fits standard keystone cutouts
- Low-profile design for flush mounting
- Female-to-female configuration for direct connectivity
Deployment / Use Cases
The Tripp Lite HDMI keystone coupler is tailored for environments where permanent, high-quality HDMI connections are needed behind panels or within structured cabling systems. Its 8K support and robust build make it suitable for demanding AV applications.
In corporate boardrooms and conference centers, the coupler enables tidy wall-plate connections for projectors and displays, supporting high-resolution presentations and video conferences. For home theater installations, it integrates seamlessly into media cabinets and wall panels, delivering pristine 8K signals from sources to screens without cable clutter. In digital signage and control room setups, the panel-mount design supports reliable, long-term connectivity for multiple displays, ensuring consistent performance in 24/7 operational environments.
Commercial AV Integration
Ideal for conference rooms, lecture halls, and command centers where HDMI sources need to be permanently connected to wall plates or patch panels for a professional appearance.
Home Theater & Gaming
Enables clean installations behind entertainment centers, supporting 8K gaming consoles, streaming devices, and Ultra HD Blu-ray players with high-bandwidth connectivity.
Physical Profile
The coupler features a compact black housing measuring 0.58 inches in height, 0.64 inches in width, and 1.14 inches in depth, designed to fit snugly into standard keystone openings. Its lightweight construction at 0.35 ounces minimizes stress on mounting panels, while the molded PVC and ABS materials provide durability and a sleek, low-profile finish that blends with modern AV equipment.
- Width
- 0.64" (16.30 mm)
- Depth
- 1.14" (29 mm)
- Height
- 0.58" (14.70 mm)
- Weight
- 0.35 oz (10 g)
What's in the Box
The package includes the HDMI Keystone/Panel-Mount Coupler (F/F) ready for installation, ensuring you have all necessary components for immediate deployment.
Highlights
- Supports 8K resolution up to 7680 x 4320 at 60 Hz for ultra-high-definition video
- Gold-plated connectors and contacts for superior corrosion resistance and signal integrity
- HDCP 1.4 and HDCP 2.2 compliant for protected content playback
- HDR support enhances color and contrast for vibrant visuals
- Female-to-female HDMI design for direct panel-mount integration
- Fits standard keystone cutouts for clean, organized installations
- Molded PVC and ABS housing for durability and strain relief
- TAA compliant and meets RoHS/REACH environmental standards
- Lifetime warranty for long-term reliability
- Compact black finish blends seamlessly with AV equipment
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | P164-000-KPBK8K |
| Brand Name | Tripp Lite series |
| Product Model | P164-000-KPBK8K |
| Product Name | HDMI Keystone/Panel-Mount Coupler (F/F) - 8K 60 Hz, Black |
| Product Type | A/V Adapter |
| Technical Information | |
| Adapter Type | HDMI |
| Connector Type on First End | HDMI Digital Audio/Video |
| Connector on First End Details | 1 x HDMI Female Digital Audio/Video |
| Connector Type on Second End | HDMI Digital Audio/Video |
| Connector on Second End Details | 1 x HDMI Female Digital Audio/Video |
| Connector Plating | Gold |
| Contact Plating | Gold |
| Maximum Resolution Supported | 7680 x 4320 |
| Features | HDCP 1.4,HDCP 2.2,Molded,HDR Support |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Product Material | Polyvinyl Chloride (PVC),ABS |
| Height | 0.58" (14.70 mm) |
| Width | 0.64" (16.30 mm) |
| Depth | 1.14" (29 mm) |
| Weight (Approximate) | 0.35 oz (10 g) |
| Miscellaneous | |
| Package Contents | HDMI Keystone/Panel-Mount Coupler (F/F) - 8K 60 Hz, Black Panel-Mount Adapter |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What resolution and refresh rate does this HDMI coupler support?
The Tripp Lite P164-000-KPBK8K HDMI coupler supports a maximum resolution of 7680 x 4320 (8K) at a refresh rate of 60 Hz. This ensures compatibility with the latest 8K displays, gaming consoles, and media players, providing ultra-high-definition video with smooth motion for professional and entertainment applications.
Does this coupler support HDCP for protected content?
Yes, this HDMI coupler is fully compliant with HDCP 1.4 and HDCP 2.2 content protection protocols. This allows it to seamlessly handle encrypted content from sources like Blu-ray players, streaming services, and gaming systems without signal interruption, making it suitable for commercial and home theater use with protected media.
What are the benefits of the gold-plated connectors?
The gold plating on both the connector shell and internal contacts provides excellent corrosion and tarnish resistance, ensuring reliable signal transmission over time. This reduces signal degradation and maintains optimal electrical conductivity, which is crucial for high-bandwidth 8K video signals in permanent installations where long-term performance is essential.
How is this coupler installed in a panel or wall plate?
This coupler is designed for keystone and panel-mount applications. It snaps into standard keystone cutouts found in wall plates, patch panels, and rack panels, allowing for a flush, organized installation. The female-to-female HDMI configuration connects directly to cables behind the panel, eliminating loose adapters and creating a clean, professional AV setup.
Is this HDMI coupler compatible with HDR content?
Yes, the coupler supports HDR (High Dynamic Range) content, enhancing color depth, contrast, and brightness for a more vivid and realistic viewing experience. This feature works in conjunction with its 8K resolution support to deliver premium video quality from HDR-enabled sources like 4K/8K Blu-ray players and streaming devices.
What environmental and compliance standards does this product meet?
This HDMI coupler is TAA compliant, making it suitable for U.S. government procurement, and meets environmental standards including RoHS and REACH, which restrict hazardous substances. It is also environmentally friendly and manufactured in Taiwan, ensuring high-quality production and adherence to international regulatory requirements for safe and sustainable electronics.
What resolution or display format is specified?
It features a display specification of 7680 x 4320, giving you clear visuals for work and media use.
What refresh rate or brightness details are available?
Display-oriented products are best judged through screen, connectivity, and installation specifications. Those facts help buyers confirm visual fit, mounting flexibility, and deployment suitability more clearly than generic summary text.
