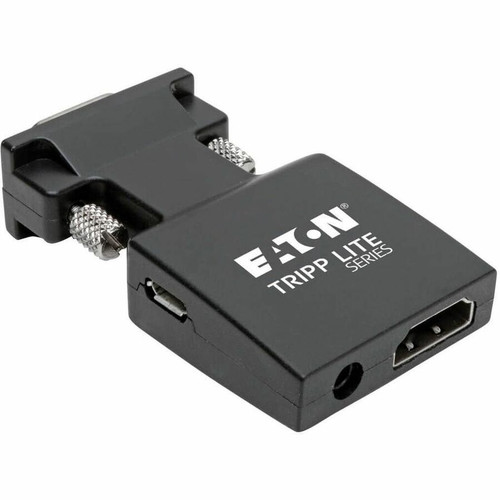

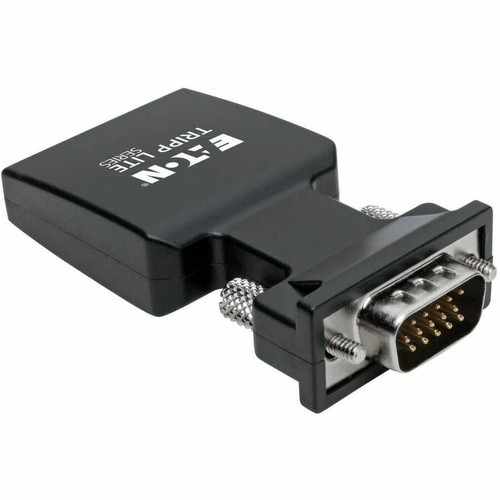

Tripp Lite series HDMI to VGA Active Converter with Audio (F/M), 1920 x 1200 (1080p) @ 60 Hz - 1 x 15-pin HD-15 VGA Male - 1 x HDMI 1 (P131-000-A-DISP)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Adapter Type: HDMI/Mini-phone/VGA
Connector Type on First End: HD-15 - Male
Connector on First End Details: 1 x 15-pin HD-15 VGA Male
Connector Type on Second End: HDMI 1.4b Digital Audio/Video - Female,Mini-phone Audio - Female,Micro USB Type B - Female
Connector on Second End Details: 1 x HDMI HDMI 1.4b Digital Audio/Video Female,1 x Mini-phone Audio Female,1 x Type B Micro USB Female
Connector Plating: Nickel
Contact Plating: Gold
Maximum Resolution Supported: 1920 x 1200
Features: HDCP 1.4
Color Family: Black
Product Color: Black
Product Material: Acrylonitrile Butadiene Styrene (ABS)
Height: 1.33" (33.78 mm)
Width: 2.46" (62.48 mm)
Depth: 0.37" (9.40 mm)
Weight (Approximate): 1.60 oz (45.36 g)
Country of Origin: Taiwan
TAA Compliant: Yes
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Limited Warranty: 3 Year
- The video adapter is designed for high-speed digital and analog video applications, ensuring smooth and reliable signal transmission
- Versatile and durable HDMI/Mini-phone/VGA adapter designed to provide long-lasting performance across supported devices
- Nickel connector plating delivers excellent corrosion protection for durability
- Gold contact plating ensures optimal signal transmission for superior performance
- Get detailed visuals and vibrant colors with 1920 x 1200 resolution for optimal viewing
- HDCP 1.4 feature enhances reliability and usability for consistent performance
[custom-specifications]
| Specifications | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | P131-000-A-DISP |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Brand Name | Tripp Lite series |
| Product Model | P131-000-A-DISP |
| Product Name | HDMI to VGA Active Converter with Audio (F/M), 1920 x 1200 (1080p) @ 60 Hz |
| Product Type | Video Adapter |
| Technical Information | |
| Adapter Type | HDMI/Mini-phone/VGA |
| Connector Type on First End | HD-15 - Male |
| Connector on First End Details | 1 x 15-pin HD-15 VGA Male |
| Connector Type on Second End | HDMI 1.4b Digital Audio/Video - Female,Mini-phone Audio - Female,Micro USB Type B - Female |
| Connector on Second End Details | 1 x HDMI HDMI 1.4b Digital Audio/Video Female,1 x Mini-phone Audio Female,1 x Type B Micro USB Female |
| Connector Plating | Nickel |
| Contact Plating | Gold |
| Maximum Resolution Supported | 1920 x 1200 |
| Features | HDCP 1.4 |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Product Material | Acrylonitrile Butadiene Styrene (ABS) |
| Height | 1.33" (33.78 mm) |
| Width | 2.46" (62.48 mm) |
| Depth | 0.37" (9.40 mm) |
| Weight (Approximate) | 1.60 oz (45.36 g) |
| Miscellaneous | |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 3 Year |
