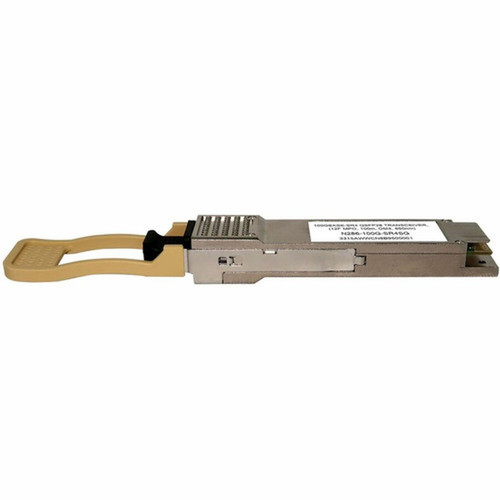

Tripp Lite by Eaton N286-100G-SR4SG QSFP28 Module - 100GBase-SR - MPO/MTP - Multi-mode - 0. 10 km
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This QSFP28 module operates on the 100GBase-SR protocol, enabling data transfer rates up to 100 Gbps. It utilizes multi-mode fiber optic cable, which is ideal for cost-effective, high-bandwidth connections over shorter distances. The maximum supported reach is 0.10 km (approximately 0.06 miles), making it suitable for intra-building or campus-level deployments.

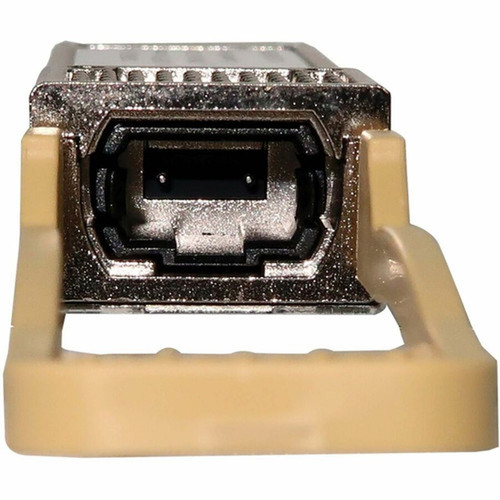

The module features a single port configuration with an MPO/MTP connector, supporting parallel optics for efficient data transmission. Its compact dimensions—0.70" height, 3.10" width, and 5.70" depth—ensure it fits standard QSFP28 slots in switches and routers. With a lightweight design at 1.76 oz, it minimizes physical load in high-density installations.
This section brings together practical product details such as Application/Usage, Total Number of Ports, Connector Type, Interfaces/Ports Details, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This transceiver offers a balance of high performance and operational flexibility for modern network infrastructure. Its design prioritizes reliability and ease of integration in demanding environments.
High-Speed Connectivity
Delivers 100 Gigabit Ethernet throughput, supporting bandwidth-intensive applications like data analytics, virtualization, and high-performance computing.
- 100GBase-SR technology
- Up to 100 Gbps data transfer
- Low-latency performance
Robust Fiber Support
Utilizes multi-mode fiber optic cable, which provides durable performance with minimal signal loss over short distances.
- MPO/MTP connector interface
- Multi-mode fiber compatibility
- Optimized for 0.10 km reach
Deployment / Use Cases
The N286-100G-SR4SG is versatile for various networking scenarios that require high-speed, short-reach optical connectivity. Its applications span data centers, enterprise networks, and server environments where reliable fiber links are critical.
Common use cases include connecting top-of-rack switches to aggregation layers, linking servers in high-performance clusters, and supporting spine-leaf architectures in modern data centers. It is also effective for audio/video transmission applications within buildings, where high bandwidth and low latency are essential.
Data Center Interconnects
Ideal for connecting switches and routers within a data center, supporting high-density server racks and storage arrays.
Enterprise Backbone Links
Suitable for building backbone networks that aggregate traffic from multiple floors or departments, ensuring fast data transfers.
Physical Profile
The module has a compact, hot-swappable form factor with dimensions of 0.70" (H) x 3.10" (W) x 5.70" (D) and a weight of 1.76 oz. This design ensures easy installation in standard QSFP28 slots without requiring additional tools or downtime. The lightweight construction reduces strain on equipment and supports efficient airflow in densely packed network chassis.
- Width
- 3.10" (78.74 mm)
- Depth
- 5.70" (144.78 mm)
- Height
- 0.70" (17.78 mm)
- Weight
- 1.76 oz (50 g)
Highlights
- QSFP28 form factor for 100 Gigabit Ethernet connectivity
- 100GBase-SR technology supporting up to 100 Gbps data transfer
- MPO/MTP connector for reliable multi-mode fiber interfacing
- Maximum reach of 0.10 km (0.06 miles) over multi-mode fiber
- Hot-swappable design for easy installation and maintenance
- MSA compliant for broad equipment interoperability
- RoHS compliant for environmentally responsible manufacturing
- Compact dimensions: 0.70" H x 3.10" W x 5.70" D
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | N286-100G-SR4SG |
| Brand Name | Tripp Lite series |
| Product Model | N286-100G-SR4SG |
| Product Name | N286-100G-SR4SG QSFP28 Module |
| Product Type | QSFP28 |
| Technical Information | |
| Application/Usage | Optical Network,Data Networking,Server,Switching Network |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | MPO/MTP |
| Interfaces/Ports Details | 1 x 100GBase-SR Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Ethernet Technology | 100 Gigabit Ethernet |
| Network Technology | 100GBase-SR |
| Maximum Distance Supported | 0.10 km (0.06 Mile) |
| Physical Characteristics | |
| Form Factor | Hot-swappable |
| Height | 0.70" (17.78 mm) |
| Width | 3.10" (78.74 mm) |
| Depth | 5.70" (144.78 mm) |
| Weight (Approximate) | 1.76 oz (50 g) |
| Miscellaneous | |
| Compatibility | MSA Compliant |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the form factor and speed of this optical module?
This module uses the QSFP28 form factor and supports 100 Gigabit Ethernet speed via the 100GBase-SR standard, delivering data transfer rates up to 100 Gbps for high-bandwidth networking applications.
What type of fiber and connector does this module support?
It supports multi-mode optical fiber with an MPO/MTP connector type. This connector is designed for parallel optics, making it suitable for dense fiber cabling in data centers and enterprise networks.
What is the maximum distance this module can reach?
The maximum supported distance is 0.10 km (approximately 0.06 miles) over multi-mode fiber. This reach is ideal for short-distance applications like intra-building links, server-to-switch connections, and campus-level networking.
Is this module hot-swappable and compatible with standard equipment?
Yes, it features a hot-swappable form factor, allowing installation or replacement without powering down the network device. It is MSA compliant, ensuring interoperability with a wide range of switches, routers, and other networking equipment from various manufacturers.
What are the typical applications for this QSFP28 module?
Common applications include optical networking, data networking, server connectivity, and switching networks. It is used in data centers for top-of-rack switching, high-performance computing clusters, enterprise backbone links, and audio/video transmission within buildings.
Does this module include any environmental or warranty features?
It is RoHS compliant, restricting hazardous substances for environmentally friendly manufacturing. The product comes with a 3-year limited warranty from Tripp Lite by Eaton, providing coverage for defects in materials and workmanship under normal use.
