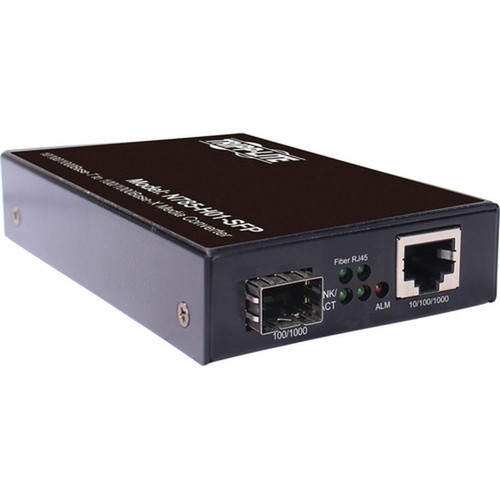

Tripp Lite by Eaton N785-H01-SFP Tripp Lite Transceiver/Media Converter - Gigabit Ethernet - 1 x RJ-45 + SFP Slot - Multi/Single-mode Fiber - 0. 10 km
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Built on Gigabit Ethernet technology, the N785-H01-SFP delivers data transfer rates up to 1000 Mbps over twisted pair cabling using 10/100/1000Base-T, while the fiber side supports 100/1000Base-X standards. The device maintains signal integrity across media conversions, ensuring reliable network performance without bottlenecks.
The converter's single RJ-45 port handles copper connections, while the SFP slot accommodates fiber optic transceivers. This dual-media approach allows the unit to extend network segments up to 0.10 km (approximately 328 feet) when using appropriate fiber, overcoming the distance limitations of standard copper cabling.
Relevant factors for this section include Total Number of Ports, Network (RJ-45), Number of Network (RJ-45) Ports, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This media converter simplifies network integration by eliminating compatibility barriers between copper and fiber infrastructure. Its support for both multi-mode and single-mode fiber makes it adaptable to diverse network environments, from enterprise data centers to industrial settings.
Flexible Media Support
Connect twisted pair and optical fiber within the same network segment, enabling hybrid cabling strategies that leverage the strengths of both media types.
- Supports multi-mode and single-mode fiber
- Accepts standard SFP transceivers
- Maintains Gigabit Ethernet performance
Multiple Mounting Options
Install the converter in various environments with DIN rail, wall, or desktop mounting capabilities, ensuring secure placement in racks, cabinets, or workspaces.
- DIN rail mounting for industrial applications
- Wall mounting for space-constrained locations
- Desktop placement for temporary setups
Deployment / Use Cases
The N785-H01-SFP is ideal for extending network reach beyond the 100-meter limitation of standard copper Ethernet. It enables fiber optic connectivity in buildings where running new copper cabling is impractical or where electromagnetic interference threatens signal quality.
Common applications include connecting network switches in separate buildings across a campus, integrating fiber backbone segments into copper-based office networks, and implementing fiber links in industrial environments where electrical noise compromises copper performance. The converter's compact size and multiple mounting options make it suitable for space-constrained installations like network closets, manufacturing floors, or outdoor enclosures.
Building-to-Building Connectivity
Extend network segments between structures using fiber optic cable for distances up to 0.10 km while maintaining Gigabit Ethernet speeds.
EMI-Prone Environments
Replace copper runs in areas with high electromagnetic interference by converting to fiber optic cable, which is immune to electrical noise.
Physical Profile
Measuring 2.91" wide × 4.30" deep × 0.92" high (73.91 × 109.22 × 23.37 mm), the converter has a compact footprint suitable for dense installations. Its 8.43 oz (238.91 g) weight ensures stable mounting without excessive bulk. The unit features a professional gray finish that blends with network equipment, and its form factor supports DIN rail, wall, or desktop placement depending on installation requirements.
- Width
- 2.91" (73.91 mm)
- Depth
- 4.30" (109.22 mm)
- Height
- 0.92" (23.37 mm)
- Weight
- 8.43 oz (238.91 g)
What's in the Box
The converter ships with all necessary components for immediate deployment in various mounting configurations.
Highlights
- Converts between twisted pair copper and optical fiber media
- Supports both multi-mode and single-mode fiber connections
- Extends network distance up to 0.10 km (0.06 mile)
- Gigabit Ethernet performance with 10/100/1000Base-T and 100/1000Base-X
- Single RJ-45 port plus SFP slot for flexible connectivity
- DIN rail, wall, and desktop mounting options
- Low 1.80 W power consumption
- RoHS compliant and environmentally friendly
- TAA compliant for government procurement
- Backed by 2-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | N785-H01-SFP |
| Brand Name | Tripp Lite series |
| Product Model | N785-H01-SFP |
| Product Name | N785-H01-SFP Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Fiber Mode Supported | Multi-mode,Single-mode |
| Maximum Distance Supported | 0.10 km (0.06 Mile) |
| I/O Expansions | |
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 1 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,100/1000Base-X |
| Power Description | |
| Power Source | AC Adapter |
| Power Consumption | 1.80 W |
| Plug/Connector Type | NEMA 5-15P |
| Physical Characteristics | |
| Form Factor | DIN Rail Mountable,Wall Mountable,Desktop |
| Height | 0.92" (23.37 mm) |
| Width | 2.91" (73.91 mm) |
| Depth | 4.30" (109.22 mm) |
| Weight (Approximate) | 8.43 oz (238.91 g) |
| Miscellaneous | |
| Package Contents | N785-H01-SFP Transceiver/Media Converter L-shaped Bracket Rubber Foot SFP Connector Cap External Power Supply with NEMA 1-15P Plug DIN Rail Kit Wall-mounting Hardware Quick Start Guide |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What media types does this converter support?
The Tripp Lite N785-H01-SFP supports both twisted pair copper cabling and optical fiber. On the fiber side, it accommodates both multi-mode and single-mode fiber through standard SFP transceivers, providing flexibility for different network distances and performance requirements.
What is the maximum distance this converter can achieve?
This media converter supports network extensions up to 0.10 km (approximately 328 feet or 0.06 mile) when using appropriate fiber optic cable. The actual achievable distance depends on the specific SFP transceiver installed and the fiber type used, with single-mode fiber typically supporting longer distances than multi-mode.
What mounting options are available for this device?
The converter offers three mounting configurations: DIN rail mounting for industrial control panels and racks, wall mounting for space-constrained locations, and desktop placement for temporary setups. The package includes all necessary hardware for each mounting method, including an L-shaped bracket, DIN rail kit, and wall-mounting hardware.
What power requirements does this converter have?
The device uses an external AC adapter for power and consumes only 1.80 W during operation. It comes with a power supply featuring a NEMA 1-15P plug, making it compatible with standard North American outlets. The low power consumption reduces energy costs and heat generation in network cabinets.
What network speeds does this converter support?
This is a Gigabit Ethernet media converter that supports data transfer rates up to 1000 Mbps. It implements 10/100/1000Base-T on the copper side for auto-negotiating speeds with connected devices, and 100/1000Base-X on the fiber side for consistent high-performance connectivity across media conversions.
What compliance standards does this product meet?
The converter is Restriction of Hazardous Substances (RoHS) compliant, making it environmentally friendly by limiting certain hazardous materials. It is also TAA compliant, meaning it meets the Trade Agreements Act requirements for U.S. government procurement. The device originates from Taiwan and includes a 2-year limited warranty for added reliability assurance.
