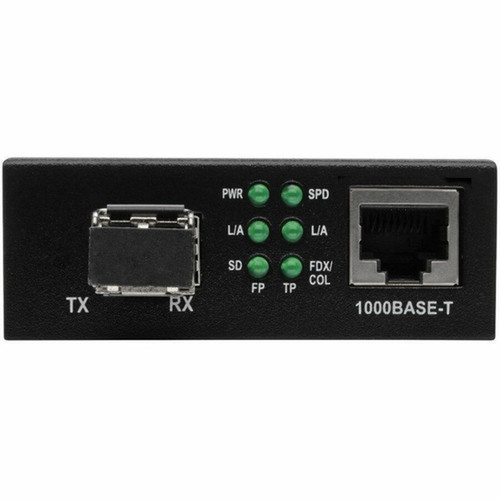

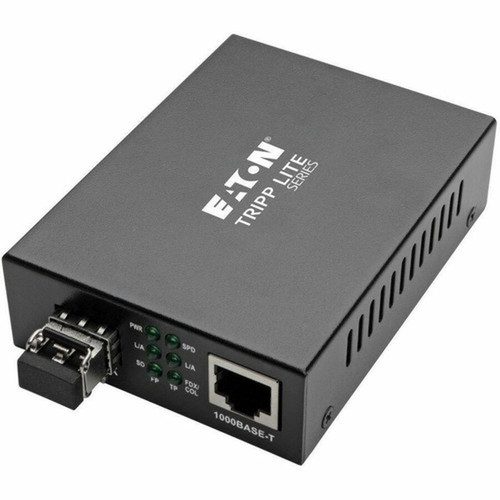

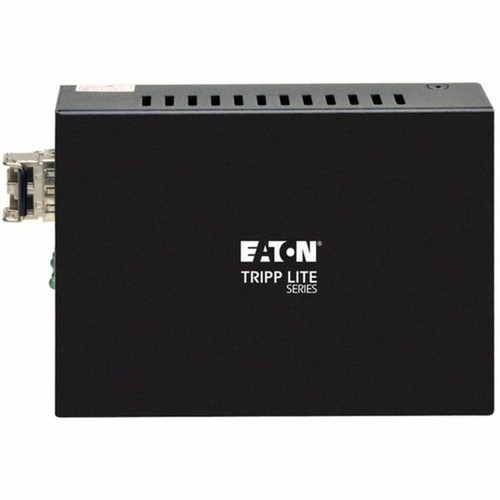

Tripp Lite by Eaton N785-INT-LC-MM Media Converter - 1x RJ-45 to 1x LC Multi-mode Fiber - 850nm - 0. 55km
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Engineered for reliable media conversion, the N785-INT-LC-MM integrates a single RJ-45 port for copper connectivity and a single duplex LC port for fiber optic links. It supports full Gigabit Ethernet throughput, ensuring seamless data transfer at up to 1000Mbps over twisted pair cables while extending the network via fiber with minimal latency.
The converter is powered by an external AC adapter, providing stable operation without PoE dependency. Its compact form factor and lightweight design make it suitable for deployment in space-constrained environments like network closets or equipment racks.
This section brings together practical product details such as Total Number of Ports, Network (RJ-45), Number of LC Ports, Media Type Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This media converter offers a straightforward solution for integrating fiber optic segments into existing copper-based networks, enhancing signal integrity and extending reach beyond typical Ethernet cable limits.
Distance Extension
Extends network connections up to 0.55 kilometers using multi-mode fiber, overcoming the distance constraints of standard twisted pair cabling.
- Supports 850nm wavelength for optimal multi-mode performance
- Compatible with common 50/125 µm and 62.5/125 µm fiber types
Plug-and-Play Operation
Features auto-negotiating Gigabit Ethernet ports for easy integration without complex configuration, reducing setup time and technical overhead.
- 10/100/1000Base-T compatibility ensures broad network device support
- External AC power simplifies installation without PoE requirements
Deployment / Use Cases
The N785-INT-LC-MM is versatile for scenarios where network segments need to span longer distances or traverse electrically noisy environments. Its conversion capability makes it a practical choice for modernizing infrastructure without replacing entire cabling systems.
Common applications include connecting switches between buildings in campus networks, extending links within industrial settings where EMI is a concern, and integrating fiber backbones into office networks for improved performance and future scalability.
This section brings together practical product details such as Total Number of Ports, Network (RJ-45), Number of LC Ports, Media Type Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Physical Profile
With dimensions of 2.54" (64.52 mm) in height, 11.94" (303.28 mm) in width, and 6.99" (177.55 mm) in depth, this media converter has a compact desktop or rack-mountable footprint. Its lightweight construction at approximately 7.20 ounces allows for flexible placement in network cabinets or on shelves, supporting tidy cable management with standard RJ-45 and LC connectors.
- Width
- 11.94" (303.28 mm)
- Depth
- 6.99" (177.55 mm)
- Height
- 2.54" (64.52 mm)
- Weight
- 7.20 oz (204.12 g)
- Length
- 850 nm
Highlights
- Converts Gigabit Ethernet between RJ-45 copper and LC multi-mode fiber ports
- Supports distances up to 0.55 km (0.34 miles) over fiber
- Operates at 850nm wavelength for multi-mode fiber compatibility
- Auto-negotiates 10/100/1000Base-T on the copper side
- Compact and lightweight design for easy deployment
- Powered by external AC adapter for reliable operation
- Compatible with 50/125 µm and 62.5/125 µm fiber cables
- Ideal for extending network segments beyond copper limits
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | N785-INT-LC-MM |
| Brand Name | Tripp Lite series |
| Product Model | N785-INT-LC-MM |
| Product Name | N785-INT-LC-MM Transceivers/Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of LC Ports | 1 |
| LC Port Type | Duplex |
| Number of Network (RJ-45) Ports | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 850 nm |
| Maximum Distance Supported | 0.55 km (0.34 Mile) |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm,62.5/125 µm |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T |
| Power Description | |
| Power Source | AC Adapter |
| Physical Characteristics | |
| Height | 2.54" (64.52 mm) |
| Width | 11.94" (303.28 mm) |
| Depth | 6.99" (177.55 mm) |
| Weight (Approximate) | 7.20 oz (204.12 g) |
| Miscellaneous | |
| Country of Origin | China |
User Manual
FAQ
What does this media converter do?
This media converter bridges Gigabit Ethernet networks by converting signals between a standard RJ-45 twisted pair port and a duplex LC multi-mode fiber port. It allows you to extend network connections over longer distances using fiber optic cabling while maintaining compatibility with existing copper-based equipment.
What is the maximum distance supported over fiber?
The converter supports a maximum distance of 0.55 kilometers (approximately 0.34 miles) when used with multi-mode fiber optic cables. This extended reach is ideal for connecting network segments across buildings or within large facilities where traditional copper Ethernet cables would be insufficient.
What type of fiber optic cable is compatible?
It is compatible with multi-mode fiber optic cables that have core/cladding specifications of 50/125 µm or 62.5/125 µm, operating at an 850nm wavelength. This includes common OM1 and OM2 multi-mode fibers, making it suitable for standard enterprise and data center deployments.

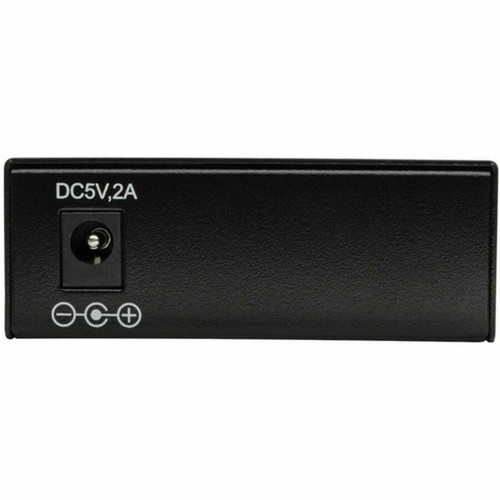

How is the converter powered?
The converter is powered by an external AC adapter, which provides stable electrical supply without relying on Power over Ethernet (PoE). This ensures reliable operation in environments where PoE may not be available or preferred for media conversion devices.
What Ethernet speeds does it support?
It supports Gigabit Ethernet with auto-negotiation for 10/100/1000Base-T on the copper RJ-45 port, allowing data transfer rates up to 1000Mbps. This ensures full compatibility with modern network switches, routers, and endpoints for high-performance connectivity.
Can this converter be used in rack-mounted setups?
Yes, its compact dimensions of 2.54" H x 11.94" W x 6.99" D and lightweight design make it suitable for rack mounting or desktop placement. This flexibility allows for integration into network cabinets, data centers, or office environments with efficient space utilization.
