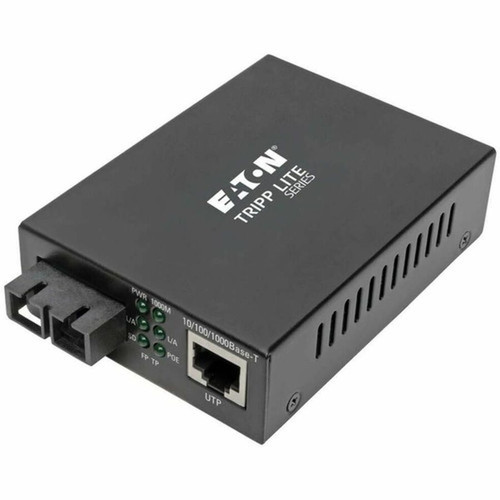

Tripp Lite by Eaton N785-INT-PSCMM2 Transceiver/Media Converter - 1 x RJ-45 & 1 x SC Duplex - Multimode 1310nm - 2 km
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This media converter operates with 10/100/1000Base-T network technology, ensuring full Gigabit Ethernet performance on the copper side. The fiber interface uses SC duplex connectors, which are widely adopted for multi-mode fiber installations, supporting a data rate of 1000 Mbps.
The device maintains signal integrity across its maximum 2 km fiber distance, leveraging 1310 nm optics optimized for multi-mode fiber. It is powered by an external AC adapter with a universal input range (100-240V, 50/60 Hz), and includes four regional power cables for North America, Europe, the U.K., and Australia.
This section brings together practical product details such as Total Number of Ports, Network (RJ-45), Number of Network (RJ-45) Ports, Media Type Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This converter simplifies network expansion by seamlessly integrating fiber segments into existing copper infrastructure. Its compact, mountable design saves space and supports organized cable management in constrained installations.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Global Power Compatibility, Environmental Compliance.
Global Power Compatibility
Includes four international power cables, allowing immediate deployment across major regions without additional adapters.
- North America (NEMA 5-15P)
- Europe (CEE 7/16)
- U.K. (BS 1363)
- Australia (AS3112)
Environmental Compliance
Meets key environmental standards, including RoHS, RoHS 3, REACH, and WEEE directives, supporting sustainable IT practices.
Deployment / Use Cases
The N785-INT-PSCMM2 is ideal for extending network reach beyond the 100-meter limit of standard copper Ethernet. It connects switches, routers, or servers in separate buildings or across large facilities using cost-effective multi-mode fiber.
Common applications include linking network segments in campuses, industrial plants, or data centers where electrical interference, distance, or security requirements favor fiber optic cabling. The mountable form factor allows installation on poles, walls, or ceilings in telecom racks or outdoor enclosures.
Campus Network Extension
Connect buildings up to 2 km apart with Gigabit fiber backbones, maintaining high bandwidth for voice, video, and data traffic.
Industrial Ethernet
Deploy in manufacturing or utility environments where fiber's immunity to EMI ensures reliable network connectivity near heavy machinery.
Physical Profile
The converter has a small footprint (2.76" W x 3.74" D x 0.98" H), making it suitable for high-density installations. Its pole or ceiling-mountable design facilitates tidy placement in racks, on walls, or overhead, with included hardware for secure mounting. The compact size and lightweight construction simplify integration into existing network infrastructure without requiring significant space.
- Width
- 2.76" (70.10 mm)
- Depth
- 3.74" (95 mm)
- Height
- 0.98" (24.89 mm)
- Length
- 1310 nm
What's in the Box
The package includes all necessary components for immediate operation and installation.
Highlights
- Converts Gigabit Ethernet between RJ-45 copper and SC duplex multi-mode fiber.
- Supports distances up to 2 km (1.24 miles) over fiber.
- Operates at 1310 nm wavelength for multi-mode fiber compatibility.
- Includes four international power cables for global deployment.
- Compact, pole or ceiling-mountable form factor for flexible installation.
- 10/100/1000Base-T network technology ensures full Gigabit performance.
- External AC adapter with universal 100-240V input.
- Compliant with RoHS, REACH, and WEEE environmental standards.
- Backed by a 2-year limited warranty.
- Package includes converter, power supply, cables, and manual.
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | N785-INT-PSCMM2 |
| Brand Name | Tripp Lite series |
| Product Model | N785-INT-PSCMM2 |
| Product Name | N785-INT-PSCMM2 Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| SC Port Type | Duplex |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 1310 nm |
| Maximum Distance Supported | 2 km (1.24 Mile) |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T |
| Power Description | |
| Power Source | AC Adapter |
| Plug/Connector Type | NEMA 5-15P,AS3112,BS 1363,CEE 7/16 |
| Physical Characteristics | |
| Form Factor | Pole,Ceiling Mountable |
| Height | 0.98" (24.89 mm) |
| Width | 2.76" (70.10 mm) |
| Depth | 3.74" (95 mm) |
| Miscellaneous | |
| Package Contents | N785-INT-PSCMM2 Transceiver/Media Converter External Power Supply (Input: 100-240V, 50/60 Hz, 1.5A; Output: 48V 1.25A) 4 x International Power Cables (North America, Europe, U.K., Australia) Owner's Manual |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Restriction of Hazardous Substances (RoHS) 3,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What types of cables does this media converter support?
The N785-INT-PSCMM2 supports both twisted-pair copper Ethernet cables (via its RJ-45 port) and optical fiber cables (via its SC duplex port). On the fiber side, it is compatible with multi-mode fiber using a 1310 nm wavelength.
What is the maximum distance this converter can extend a network?
This media converter supports a maximum distance of 2 kilometers (approximately 1.24 miles) when using multi-mode fiber optic cable. The copper RJ-45 side follows standard Ethernet distance limits, typically up to 100 meters per segment.
What power supply is included, and is it suitable for international use?
The package includes an external AC power supply with a universal input range of 100-240V at 50/60 Hz, and four regional power cables for North America, Europe, the U.K., and Australia. This allows immediate deployment in most global locations without additional adapters.
How is this media converter typically mounted or installed?
The converter features a pole or ceiling-mountable form factor, allowing flexible installation in network racks, on walls, or overhead. Its compact dimensions (2.76" W x 3.74" D x 0.98" H) make it suitable for space-constrained environments like telecom closets or industrial enclosures.
What network speeds does this converter support?
It supports Gigabit Ethernet (1000 Mbps) via 10/100/1000Base-T technology on the copper side, with corresponding fiber optic data rates. This ensures full Gigabit performance for bandwidth-intensive applications like video streaming, large file transfers, or VoIP.
What environmental standards does this product meet?
The converter complies with Restriction of Hazardous Substances (RoHS and RoHS 3), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), and Waste Electrical and Electronic Equipment Directive (WEEE). These standards ensure reduced environmental impact and support responsible disposal.
