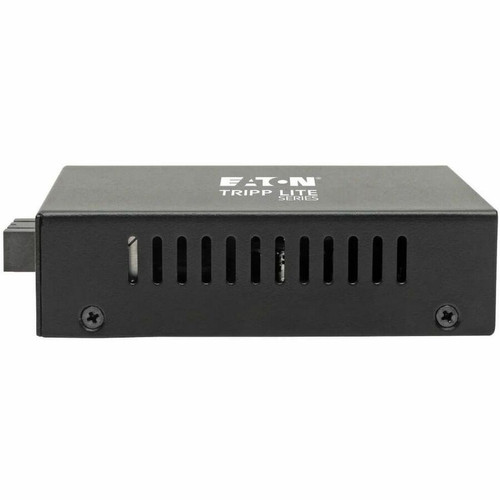

Tripp Lite by Eaton N785-P01-SC-MM1 Transceiver/Media Converter - 1 x RJ-45 to 1 x SC Duplex Multi-mode 850nm Fiber
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This media converter operates at Gigabit Ethernet speeds (1000Mbps) and supports auto-negotiation for 10/100/1000Base-T connections on the copper side, ensuring compatibility with a wide range of network equipment. The fiber interface implements 1000Base-X technology for reliable optical transmission up to 0.55 kilometers (0.34 miles) over multi-mode fiber.
The converter accepts standard twisted pair cables (Cat5e or higher recommended) on the RJ-45 port and uses industry-standard SC duplex connectors for the fiber interface. This design provides a clean, professional conversion point that maintains signal integrity while enabling longer distance connections than copper alone can support.
Key Product Advantages
This converter delivers practical benefits for network expansion and infrastructure modernization projects by providing a reliable bridge between copper and fiber segments. Its compact design and straightforward operation make it suitable for both temporary deployments and permanent installations.
Distance Extension
Extend network segments beyond the 100-meter limitation of standard copper Ethernet by converting to fiber optic cabling that supports distances up to 0.55 kilometers.
- Overcomes copper distance limitations
- Maintains Gigabit performance over extended runs
- Reduces signal degradation over long distances
Media Flexibility
Connect existing copper-based network equipment to fiber optic infrastructure without replacing endpoints, protecting your investment in current hardware.
- Bridge copper and fiber networks seamlessly
- Utilize existing RJ-45 equipment with fiber backbones
- Future-proof network infrastructure
Deployment / Use Cases
The N785-P01-SC-MM1 converter is ideal for scenarios where network segments need to span distances that exceed the practical limits of copper Ethernet cabling. Its compact form factor and simple plug-and-play operation make it suitable for various deployment environments.
Common applications include connecting network equipment across separate buildings on a campus, extending network drops in large facilities, creating backbone links between network closets, or integrating fiber segments into otherwise copper-based networks. The device is particularly valuable in environments where electrical isolation between buildings is required or where electromagnetic interference could degrade copper-based signals.
Cross-Building Connectivity
Establish reliable network links between buildings on a campus or industrial site while maintaining electrical isolation and overcoming distance limitations.
Network Infrastructure Extension
Extend network reach in large facilities such as warehouses, manufacturing plants, or educational institutions where cable runs exceed 100 meters.
Physical Profile
The converter features a compact desktop design measuring 3.74" wide × 2.76" deep × 0.98" high (95 × 70.10 × 24.89 mm) and weighing approximately 7.04 ounces (199.58 grams). This small footprint allows flexible placement on desks, shelves, or in network cabinets without consuming significant space. The unit's clean, professional appearance with status indicators provides at-a-glance operational feedback in any deployment environment.
- Width
- 3.74" (95 mm)
- Depth
- 2.76" (70.10 mm)
- Height
- 0.98" (24.89 mm)
- Weight
- 7.04 oz (199.58 g)
- Length
- 850 nm
What's in the Box
This converter ships complete with all necessary components for immediate deployment.
Highlights
- Converts Gigabit Ethernet between twisted pair RJ-45 and multi-mode SC duplex fiber
- Supports distances up to 0.55 km (0.34 miles) over multi-mode fiber optic cable
- Operates at 1000 Mbps with auto-negotiation for 10/100/1000Base-T connections
- Compact desktop design with dimensions of 3.74" × 2.76" × 0.98" (95 × 70.10 × 24.89 mm)
- Includes external power supply with universal 100-240V input
- RoHS compliant and environmentally friendly construction
- Backed by a 2-year limited warranty from Tripp Lite by Eaton
- Ideal for extending network reach beyond copper cable limitations
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | N785-P01-SC-MM1 |
| Brand Name | Tripp Lite series |
| Product Model | N785-P01-SC-MM1 |
| Product Name | N785-P01-SC-MM1 Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| SC Port Type | Duplex |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 850 nm |
| Maximum Distance Supported | 0.55 km (0.34 Mile) |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,1000Base-X |
| Power Description | |
| Power Source | Power Supply |
| Physical Characteristics | |
| Height | 0.98" (24.89 mm) |
| Width | 3.74" (95 mm) |
| Depth | 2.76" (70.10 mm) |
| Weight (Approximate) | 7.04 oz (199.58 g) |
| Miscellaneous | |
| Package Contents | N785-P01-SC-MM1 Transceiver/Media Converter External Power Supply with 3.6 ft. Cord and NEMA 5-15P Plug (Input: 100-240V, 50/60 Hz, 1.5A; Output: 48V 1.25A) Owner's Manual |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What types of connections does this media converter support?
This converter supports one RJ-45 port for twisted pair copper Ethernet connections and one SC duplex port for multi-mode fiber optic connections. The RJ-45 port is compatible with standard Cat5e, Cat6, or higher cabling and auto-negotiates between 10/100/1000Base-T speeds. The SC duplex port supports 1000Base-X Gigabit Ethernet over multi-mode fiber with 850nm wavelength.
What is the maximum distance this converter can support over fiber?
The converter supports distances up to 0.55 kilometers (0.34 miles) when used with multi-mode fiber optic cable. This represents a significant extension compared to the 100-meter limitation of standard copper Ethernet cabling, making the device ideal for connecting network segments across buildings or throughout large facilities.
What type of fiber optic cable is compatible with this converter?
This converter is designed for use with multi-mode fiber optic cable featuring SC duplex connectors and 850nm wavelength. Multi-mode fiber is cost-effective for short to medium-distance applications and is commonly used in campus environments, data centers, and building backbones. The SC duplex connector provides reliable optical coupling with easy insertion and removal.
Does this converter require external power?
Yes, the converter requires external power provided by the included power supply. The power supply accepts universal input voltage from 100-240V AC at 50/60 Hz and delivers 48V DC at 1.25A output. The included 3.6-foot power cord with NEMA 5-15P plug provides flexible placement options in various deployment scenarios.
What network speeds does this media converter support?
The converter supports full Gigabit Ethernet (1000 Mbps) performance on both the copper and fiber interfaces. The RJ-45 port auto-negotiates between 10/100/1000Base-T speeds to match connected equipment, while the fiber interface operates at 1000Base-X. This ensures maximum throughput for demanding applications while maintaining backward compatibility with slower network equipment.
What warranty coverage does this product include?
Tripp Lite by Eaton provides a 2-year limited warranty for this transceiver/media converter. The warranty covers defects in materials and workmanship under normal use. The product is also RoHS compliant, meeting environmental standards for restriction of hazardous substances in its construction.
