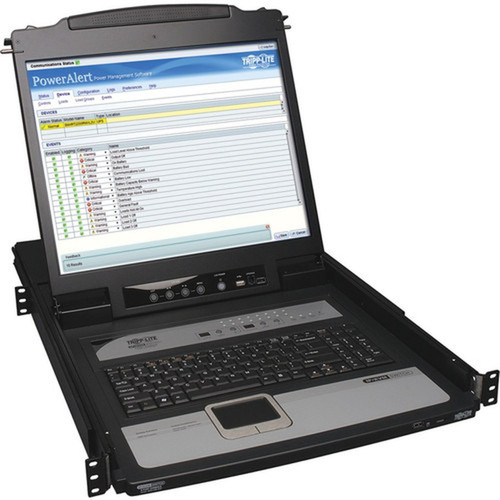

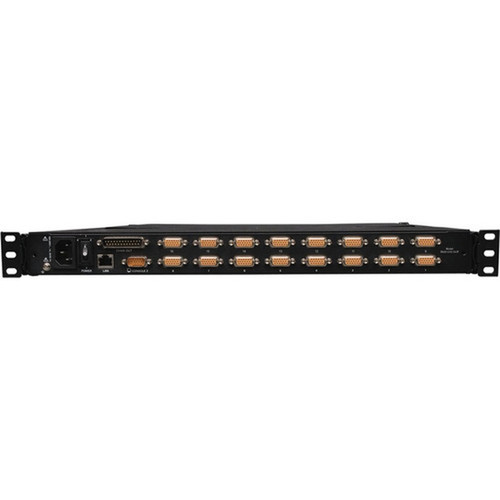

Tripp Lite by Eaton B020-U16-19-IP NetDirector 16-Port 1U Rack-Mount Console IP KVM Switch with 19" LCD - 1280 x 1024 - PS/2/USB/VGA
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This NetDirector console employs digital KVM-over-IP technology, allowing secure remote access to connected computers from any standard web browser. It supports up to 16 direct connections via included P778-Series USB/PS2 combo KVM cable kits, with the console itself featuring PS/2, USB, and VGA ports for local peripheral attachment.
The integrated 19-inch LCD delivers a sharp 1280x1024 resolution, suitable for server administration tasks. The unit accepts dual-voltage input (120/230V AC) for flexible power sourcing and installs in a standard 19-inch rack using just 1U of vertical space.
This section brings together practical product details such as KVM Switch, KVM Technology, Number of Computers Supported, Screen Size, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The NetDirector console streamlines server management by consolidating remote IP access and local console functionality into a single, space-efficient 1U rack unit. Its integrated approach reduces cable clutter and hardware sprawl compared to separate KVM switches and monitors.
Remote Management Flexibility
Access and control connected servers from anywhere via a web browser, supporting simultaneous local and remote users for efficient troubleshooting and maintenance.
- LAN/WAN/internet access
- Browser-based interface
- Multi-user support
Rack-Optimized Design
The 1U form factor maximizes rack density, while the built-in display eliminates the need for a separate monitor, saving space and simplifying cabling in constrained environments.
- 1U rack height
- Integrated 19" LCD
- Reduced footprint
Broad Compatibility
Supports PS/2 and USB keyboards/mice along with VGA video, ensuring connectivity with a wide range of server and computer hardware across different generations.
- PS/2 and USB support
- VGA video
- Includes adapter cables
Deployment / Use Cases
This IP KVM console is engineered for environments where centralized, remote server access is critical. It allows IT staff to manage infrastructure without being physically present at the rack, enabling faster response times and reducing downtime during incidents.
Typical deployments include data center server racks, co-location facilities, branch office server rooms, and lab environments where multiple computers require frequent hands-on management. The console is particularly valuable for managing headless servers, troubleshooting boot issues, performing BIOS-level configurations, and overseeing systems that lack out-of-band management capabilities.
Data Center Server Management
Provide secure remote access to rack-mounted servers for administrators, enabling maintenance, updates, and monitoring without visiting the data center floor.
Co-location and Remote Sites
Manage servers in off-site facilities from a central location, reducing travel costs and improving support response times for distributed infrastructure.
Physical Profile
The console features a black finish that blends with standard rack equipment. Its compact 1U height (1.73 inches) conserves vertical rack space, while the 18.90-inch width and 27-inch depth fit standard 19-inch rack enclosures. The unit weighs approximately 31 pounds, making it manageable for installation by a single technician. Mounting hardware is included for secure rack attachment.
- Width
- 18.90" (480.06 mm)
- Depth
- 27" (685.80 mm)
- Height
- 1U
- Weight
- 31 lb (14061.36 g)
What's in the Box
The package includes all necessary components for immediate deployment.
Highlights
- Controls up to 16 computers remotely via LAN, WAN, or internet
- Integrated 19-inch LCD with 1280x1024 resolution
- Digital KVM-over-IP technology for secure remote access
- Installs in just 1U of rack space
- Supports PS/2, USB, and VGA interfaces
- Works with all major operating systems and web browsers
- Includes two P778-Series USB/PS2 combo KVM cable kits
- Dual-voltage input (120/230V AC) for flexible power
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | B020-U16-19-IP |
| Brand Name | Tripp Lite series |
| Product Line | NetDirector |
| Product Model | B020-U16-19-IP |
| Product Name | NetDirector 16-Port 1U Rack-Mount Console IP KVM Switch w/19 in. LCD |
| Product Type | LCD Rack Console |
| Technical Information | |
| KVM Switch | Yes |
| KVM Technology | Digital |
| Number of Computers Supported | 16 |
| Device Type | LCD Rack Console |
| Display & Graphics | |
| Screen Size | 19" |
| Display Screen Type | LCD |
| Screen Resolution | 1280 x 1024 |
| Input Devices | |
| Keyboard | Yes |
| Interfaces/Ports | |
| PS/2 Port | Yes |
| USB | Yes |
| VGA | Yes |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Rack Height | 1U |
| Height | 1.73" (43.94 mm) |
| Width | 18.90" (480.06 mm) |
| Depth | 27" (685.80 mm) |
| Weight (Approximate) | 31 lb (14061.36 g) |
| Miscellaneous | |
| Package Contents | NetDirector 16-Port 1U Rack-Mount Console IP KVM Switch w/19 in. LCD 2 x P778-Series USB/PS2 combo KVM Cable Kits, 6 ft. USB/PS2 Combo External Console Cable Kit Grounding Wire RJ11 to DB9 Firmware Upgrade Cable C13 to NEMA 5-15P Power Cord Mounting Hardware CD with Owner's Manuals and device files |
| Environmentally Friendly | Yes |
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | 1 Year |
User Manual
FAQ
How many computers can this KVM switch control?
The NetDirector console supports direct connection and control of up to 16 computers or servers. This is achieved through its 16-port digital KVM switch, which allows centralized management of multiple devices from a single interface, either locally at the rack or remotely over the network.
What types of connections does this console support for keyboards and mice?
This console supports both PS/2 and USB connections for keyboards and mice. It includes PS/2 ports on the unit itself and comes with P778-Series USB/PS2 combo KVM cable kits to connect to servers, providing flexibility for older PS/2-based systems and modern USB peripherals.
Can I access the connected servers remotely?
Yes, the console features IP-based remote access, allowing you to control connected computers from any location via a standard web browser over LAN, WAN, or internet connections. This enables IT administrators to perform management tasks without being physically present at the server rack.
What is the screen size and resolution of the built-in display?
The integrated display is a 19-inch LCD monitor with a resolution of 1280 x 1024 pixels. This provides a clear, sharp image suitable for server administration tasks, console text, and graphical interfaces, all within the compact 1U rack-mount form factor.
How much rack space does this console require?
The console requires only 1U of vertical rack space, with dimensions of 1.73 inches in height, 18.90 inches in width, and 27 inches in depth. This space-efficient design allows it to fit into standard 19-inch server racks without consuming excessive room, making it ideal for dense server environments.
What power input voltages are supported?
The console supports dual input voltages of 120 V AC and 230 V AC, providing flexibility for use in different regions and power environments. This allows the unit to be deployed in North American 120V settings or international 230V installations without requiring a separate voltage converter.
