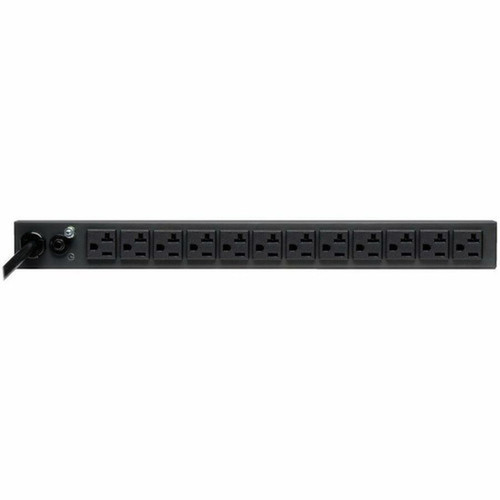

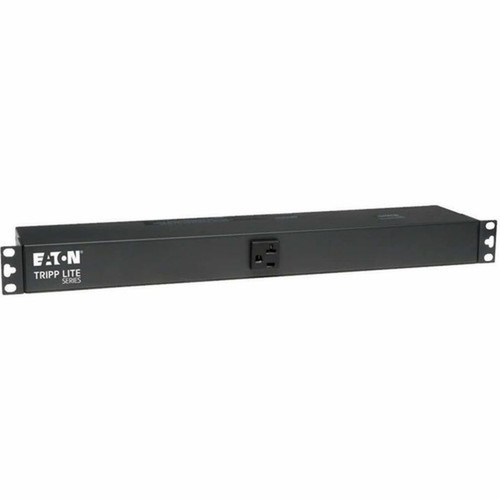

Tripp Lite by Eaton PDU1220T6 Basic PDU - 13 Outlets - 2. 5 kW - 120V AC - NEMA L5-20P - 1U Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This single-phase PDU operates with a 120V AC input, delivering output voltages of 100V AC, 120V AC, and 127V AC to accommodate various equipment requirements. The 13 outlets use NEMA 5-15/20R connectors, providing compatibility with standard North American plugs. The 2.5 kW power rating and 20A input current ensure sufficient capacity for typical rack deployments.
The PDU1220T6 incorporates circuit protection mechanisms that prevent overload conditions and accidental disconnections, enhancing system reliability. Its 1U rack height and dimensions of 1.75" H x 17.50" W x 4.50" D make it suitable for space-constrained environments. The unit weighs approximately 5.20 lb, facilitating easy installation and handling.
This section brings together practical product details such as PDU Type, Phase, Plug/Connector Type, Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The PDU1220T6 offers straightforward power distribution with essential protection features, making it an ideal choice for organizations seeking reliable infrastructure without advanced monitoring capabilities. Its design prioritizes simplicity, durability, and compliance with industry standards.
High-Density Outlet Configuration
Thirteen NEMA 5-15/20R outlets provide ample connectivity for multiple devices within a single rack unit, reducing cable clutter and improving airflow management.
- Supports standard 5-15P and 5-20P plugs
- Consolidates power distribution in compact spaces
Flexible Mounting Solutions
Rack-mountable and wall-mountable with horizontal or vertical orientation options allow installation in diverse environments, from server rooms to wiring closets.
- 1U rack height preserves valuable rack space
- Includes mounting hardware for quick deployment
Built-In Protection Mechanisms
Circuit protection and overload safeguards help prevent damage to connected equipment from power anomalies, supporting continuous operation.
- Mitigates accidental shutdown risks
- Enhances overall system stability
Deployment / Use Cases
The PDU1220T6 is particularly effective in environments where basic, reliable power distribution is required without the need for advanced monitoring or switching capabilities. Its 2.5 kW capacity and 13-outlet configuration suit small to medium-sized rack deployments.
Common applications include wiring closets, server rooms, network equipment racks, and telecommunications cabinets. The unit's 1U form factor makes it suitable for top-of-rack power distribution in standard 19-inch racks, while wall-mount capability extends its use to equipment enclosures and standalone installations.
Server Room Power Distribution
Distribute power to multiple servers, switches, and storage devices within a single rack, leveraging the 13-outlet capacity and 2.5 kW rating for efficient infrastructure management.
Network Closet Deployment
Provide organized power to networking equipment in wiring closets, using the wall-mount option and NEMA 5-15/20R outlets to support routers, switches, and patch panels.
Physical Profile
The PDU1220T6 features a compact design with dimensions of 1.75" H x 17.50" W x 4.50" D, occupying minimal rack depth while providing full front-to-back accessibility. Its 1U rack height aligns with standard rack units, and the approximate weight of 5.20 lb ensures manageable installation. The unit's construction supports both horizontal and vertical mounting orientations, offering flexibility in various installation scenarios.
- Width
- 17.50" (444.50 mm)
- Depth
- 4.50" (114.30 mm)
- Height
- 1U
- Weight
- 5.20 lb (2358.68 g)
What's in the Box
The package includes the PDU1220T6 13-Outlets PDU, rack-mounting hardware for secure installation, and an owner's manual for setup guidance.
Package contents include PDU1220T6 13-Outlets PDU Rack-mounting Hardware Owner's Manual, PDU1220T6 13-Outlets PDU. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- 13 NEMA 5-15/20R outlets for high-density power distribution
- 2.5 kW power rating supports substantial rack loads
- 120V AC input with 20A current capacity
- NEMA L5-20P plug for standard North American connections
- 1U rack-mountable design optimizes space utilization
- Horizontal or vertical mounting flexibility
- Circuit protection and overload safeguards
- RoHS compliant and environmentally friendly
- 5-year limited warranty for long-term reliability
- Includes rack-mounting hardware for easy installation
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | PDU1220T6 |
| Brand Name | Tripp Lite series |
| Product Model | PDU1220T6 |
| Product Name | PDU1220T6 13-Outlets PDU |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Basic |
| Phase | Single Phase |
| Plug/Connector Type | NEMA L5-20P |
| Receptacle Type | NEMA 5-15/20R |
| Receptacle Detail | 13 x NEMA 5-15/20R |
| Protection Type | Accidental Power Shutdown,Overload Protection,Circuit Protection |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 100 V AC,120 V AC,127 V AC |
| Power Rating (Watt) | 2.50 kW |
| Input Current | 20 A |
| Physical Characteristics | |
| Mounting Orientation | Horizontal/Vertical |
| Mount Type | Rack-mountable,Wall-mountable |
| Rack Height | 1U |
| Height | 1.75" (44.45 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 4.50" (114.30 mm) |
| Weight (Approximate) | 5.20 lb (2358.68 g) |
| Miscellaneous | |
| Package Contents | PDU1220T6 13-Outlets PDU Rack-mounting Hardware Owner's Manual |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the power rating of the PDU1220T6?
The PDU1220T6 has a power rating of 2.50 kW (2500 watts), which indicates the maximum load it can support. This capacity is suitable for powering multiple servers, networking devices, or other rack-mounted equipment within a single rack unit, ensuring efficient power distribution without overloading the circuit.
How many outlets does this PDU have and what type are they?
This PDU features 13 NEMA 5-15/20R outlets. These outlets are compatible with standard North American plugs (NEMA 5-15P and 5-20P), allowing you to connect a variety of IT equipment such as servers, switches, and monitors directly without needing adapters.
What input voltage and plug type does the PDU1220T6 use?
The PDU1220T6 operates with a 120V AC input and uses a NEMA L5-20P plug. This plug type is designed for 20-amp circuits and is commonly found in commercial and data center environments, providing a secure connection to standard power sources.
Can this PDU be mounted in a rack or on a wall?
Yes, the PDU1220T6 is both rack-mountable and wall-mountable. It has a 1U rack height, making it ideal for standard 19-inch racks, and includes hardware for secure installation. The unit also supports horizontal or vertical mounting orientations, offering flexibility for different space configurations.
What protection features are included with this PDU?
The PDU1220T6 includes protection against accidental power shutdown, overload, and circuit faults. These features help prevent damage to connected equipment from power anomalies, ensuring more reliable operation in environments where uninterrupted power is critical.
What is included in the package with the PDU1220T6?
The package contains the PDU1220T6 13-Outlets PDU unit, rack-mounting hardware for installation, and an owner's manual. This ensures you have everything needed for setup and proper use, with the manual providing guidance on installation and safety considerations.
What power capacity is listed for this UPS?
The listed power specification is 2.50 kW, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 120 V AC, which helps position the unit for the right load level and installation role.
