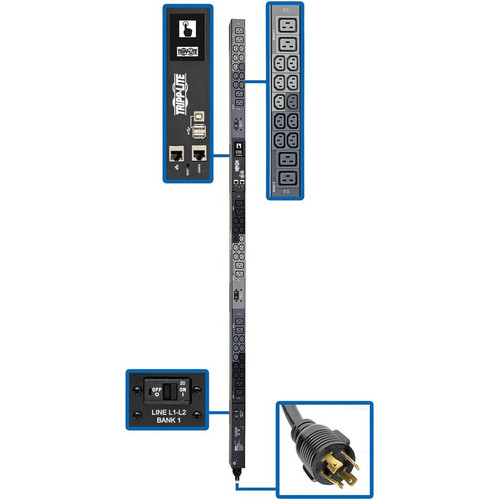

Tripp Lite by Eaton PDU3EVN6H50BA 42-Outlet Monitored PDU - 14. 5 kW - 3-Phase - 12x C19 & 30x C13 - 230V AC - 0U Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This monitored PDU operates on a three-phase 230V AC input with a 35A current rating, delivering output voltages of 208V AC and 240V AC. The 14.5 kW power rating supports high-density deployments where multiple devices require simultaneous, reliable power distribution. Overload protection safeguards connected equipment by preventing excessive current draw that could damage sensitive electronics or trip circuit breakers.

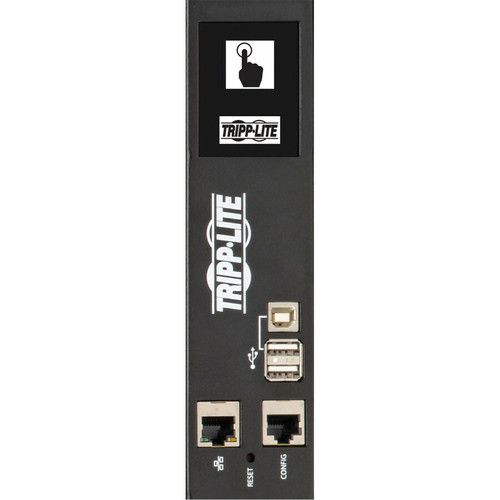

Network management capabilities include support for IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1/v2/v3, telnet, SSH, FTP, DHCP, and NTP protocols. The RJ-45 network port enables remote monitoring and control, providing real-time visibility into power usage patterns and environmental conditions. This level of management transforms basic power distribution into an intelligent infrastructure component that contributes to overall data center efficiency and uptime.
This section brings together practical product details such as PDU Type, Phase, Plug/Connector Type, Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The PDU3EVN6H50BA combines high outlet density with advanced monitoring capabilities in a space-efficient vertical form factor. The 42-outlet configuration with mixed C19 and C13 receptacles provides flexibility for diverse equipment types, while the 14.5 kW capacity ensures adequate power headroom for growing rack deployments.
Intelligent Power Monitoring
Active metering through the LX platform interface enables precise energy optimization and circuit protection. Administrators can monitor real-time power consumption, set threshold alerts, and receive warnings before input sources become overloaded.
- Real-time power metrics
- Configurable alert thresholds
- Historical consumption data
High-Density Outlet Design
With 12 C19 outlets for high-power equipment and 30 C13 outlets for standard devices, this PDU accommodates mixed IT environments without requiring additional power strips or adapters.
- Balanced outlet mix
- Eliminates daisy-chaining
- Reduces cable clutter
Space-Optimized Rack Installation
The 0U vertical mounting design occupies no rack units of front or rear space, while the 2.17-inch slim profile minimizes depth intrusion. This preserves valuable rack real estate for active equipment.
- Zero U footprint
- Vertical orientation
- Minimal depth requirement
Deployment / Use Cases
This monitored PDU is ideal for data center cabinets, server rooms, and network closets where high-density power distribution with management capabilities is required. The three-phase 230V AC input makes it particularly suitable for enterprise environments and colocation facilities with three-phase power infrastructure.
Typical applications include powering full-height server racks containing multiple blade chassis, storage arrays, and networking switches. The outlet mix supports both high-power devices like servers with redundant power supplies (using C19 connections) and standard equipment like switches, routers, and KVM units (using C13 connections). The monitoring capabilities make it valuable for capacity planning, chargeback accounting, and proactive maintenance in managed service provider environments.
Physical Profile
The PDU features a vertical mounting orientation with 0U rack height, measuring 70 inches (1778 mm) in height, 2.17 inches (55.12 mm) in width, and 2.52 inches (64.01 mm) in depth. The slim profile allows installation in standard 19-inch racks without consuming usable equipment space. The 12.85-pound weight ensures manageable installation while the all-metal construction provides durability in data center environments. Plug-lock insert sleeves secure power cords to prevent accidental disconnection.
- Width
- 2.17" (55.12 mm)
- Depth
- 2.52" (64.01 mm)
- Height
- 0U
- Weight
- 12.85 lb (5828.66 g)
What's in the Box
The package includes all necessary components for immediate deployment and secure installation.
Highlights
- 42 total outlets: 12 C19 for high-power devices, 30 C13 for standard equipment
- 14.5 kW three-phase power capacity with 230V AC input
- Monitored PDU with LX platform interface for network management
- 0U vertical rack mounting conserves valuable rack space
- Overload protection safeguards connected equipment
- Supports multiple network protocols: SNMP, HTTP, SSH, FTP, and more
- Plug-lock insert sleeves prevent accidental cord disconnection
- RoHS compliant and TAA compliant for government deployments
- 2-year limited warranty with manufacturer support
- Compact 2.17-inch width minimizes rack depth intrusion
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | PDU3EVN6H50BA |
| Brand Name | Tripp Lite series |
| Product Model | PDU3EVN6H50BA |
| Product Name | PDU3EVN6H50BA 42-Outlet PDU |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Monitored |
| Phase | Three Phase |
| Plug/Connector Type | Hubbell CS8365C |
| Receptacle Type | IEC 60320 C19,IEC 60320 C13 |
| Receptacle Detail | 12 x IEC 60320 C19,30 x IEC 60320 C13 |
| Protection Type | Overload Protection |
| Power Description | |
| Input Voltage | 230 V AC |
| Output Voltage | 208 V AC,240 V AC |
| Power Rating (Watt) | 14.50 kW |
| Input Current | 35 A |
| Management | |
| Management | Protocols: IPv4 IPv6 HTTP HTTPS SMTP SNMPv1 SNMPv2 SNMPv3 telnet SSH FTP DHCP NTP |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Height | 70" (1778 mm) |
| Width | 2.17" (55.12 mm) |
| Depth | 2.52" (64.01 mm) |
| Weight (Approximate) | 12.85 lb (5828.66 g) |
| Miscellaneous | |
| Package Contents | PDU3EVN6H50BA 42-Outlet PDU Built-in LX Platform Interface Configuration Cable 42 x Plug-lock Insert Sleeves Rack-Mounting Hardware Spare Mounting Buttons Mounting Bracket Accessory Owner's Manual |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the power capacity of this PDU?
The PDU3EVN6H50BA delivers 14.5 kW (14,500 watts) of three-phase power capacity. This high power rating supports dense equipment deployments in server racks and data center cabinets where multiple devices require simultaneous power distribution without overloading circuits.
How many outlets does this PDU have and what types?
This PDU provides 42 total outlets: 12 IEC 60320 C19 outlets for high-power equipment like servers and storage arrays, and 30 IEC 60320 C13 outlets for standard devices like switches, routers, and networking gear. This mixed configuration accommodates diverse equipment types without requiring additional adapters.
What input voltage does this PDU require?

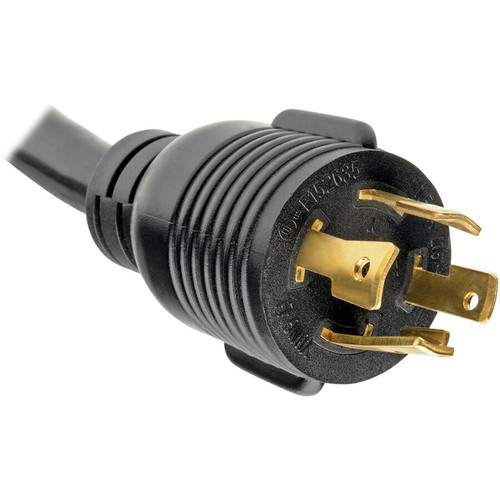

The PDU requires a three-phase 230V AC input with a Hubbell CS8365C connector. It delivers output voltages of 208V AC and 240V AC, making it compatible with standard North American three-phase power infrastructure commonly found in data centers and enterprise environments.
How is this PDU mounted in a rack?
This PDU uses a 0U vertical mounting configuration, meaning it installs vertically along the side of a standard 19-inch rack without consuming any rack units of front or rear space. The included mounting hardware supports secure vertical installation, and the slim 2.17-inch width minimizes depth intrusion while providing full-length outlet access.
What management capabilities does this monitored PDU offer?
The built-in LX platform interface provides network management via RJ-45 connection, supporting protocols including SNMPv1/v2/v3, HTTP, HTTPS, SSH, FTP, and more. This enables remote monitoring of power consumption, temperature, humidity, configurable alert thresholds, and historical data logging for capacity planning and efficiency optimization.
What safety features does this PDU include?
The PDU incorporates overload protection to prevent excessive current draw that could damage connected equipment or trip circuit breakers. Additionally, plug-lock insert sleeves secure power cords to prevent accidental disconnection, and the unit is RoHS compliant, restricting hazardous substances. The 2-year limited warranty provides manufacturer-backed reliability assurance.
What power capacity is listed for this UPS?
The listed power specification is 14.50 kW, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 230 V AC, which helps position the unit for the right load level and installation role.
