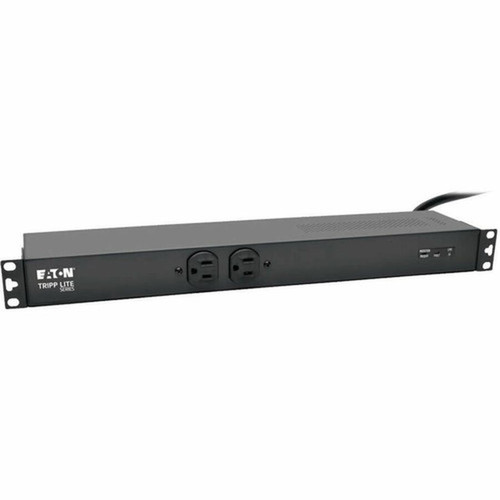

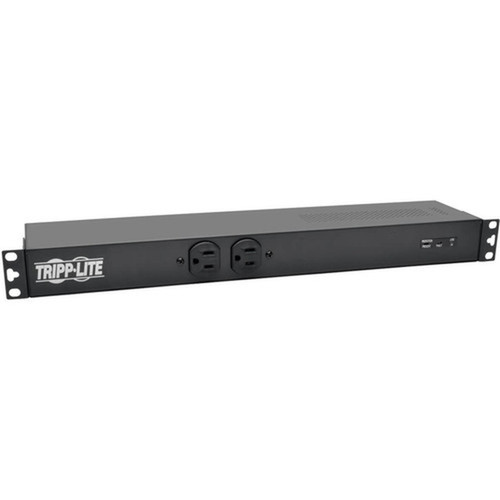

Tripp Lite by Eaton PDUH20-ISO 14-Outlet Basic PDU - 1U Rack Mount - 120V AC - 2. 03 kW - 12x NEMA 5-20R - 2x NEMA 5-15R
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This basic PDU operates on a single-phase power system with 120V AC input voltage and delivers output voltages of 100V AC, 120V AC, and 127V AC. The 20A input current capacity supports the full 2.03 kW power rating, ensuring adequate power distribution for connected devices.
The PDUH20-ISO incorporates multiple protection mechanisms including overload protection, circuit protection, surge protection, spike protection, and noise filtering. These features help prevent accidental power shutdowns and protect connected equipment from electrical disturbances.
This section brings together practical product details such as PDU Type, Phase, Plug/Connector Type, Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The PDUH20-ISO combines essential power distribution functionality with practical design features that benefit IT infrastructure management. Its comprehensive protection suite safeguards connected equipment while the flexible mounting options accommodate various installation scenarios.
Space-Efficient Design
The 1U rack height minimizes space consumption in crowded server racks, while the 17.5-inch width fits standard 19-inch rack enclosures perfectly.
- 1U rack height
- 17.5" width fits standard racks
- Horizontal/vertical mounting
Mixed Outlet Configuration
With twelve NEMA 5-20R and two NEMA 5-15R outlets, this PDU accommodates equipment with different plug requirements without needing adapters.
- 12 x NEMA 5-20R outlets
- 2 x NEMA 5-15R outlets
- Flexible device connectivity
Comprehensive Protection
Multiple protection layers including overload, surge, and spike protection help prevent equipment damage and maintain system uptime.
- Overload protection
- Surge and spike protection
- Noise filtering
Deployment / Use Cases
The PDUH20-ISO is ideal for data centers, server rooms, network closets, and other IT environments requiring organized power distribution. Its basic design provides cost-effective power management without the complexity of metered or switched PDUs.
This unit serves well in small to medium server racks where space is at a premium. The mixed outlet configuration makes it suitable for environments with both 20-amp and 15-amp equipment. The wall-mountable option also allows for installation in network closets or equipment rooms where rack space is limited.
Server Rack Power Distribution
Distribute power to multiple servers, switches, and storage devices within a single rack while maintaining organized cable management.
- 1U space-saving design
- 14 outlets for multiple devices
- Rack-mountable with included hardware
Network Equipment Power
Provide reliable power to networking equipment including switches, routers, and firewalls in data center or office environments.
- Comprehensive electrical protection
- Mixed outlet types
- Wall or rack mounting options
Physical Profile
The PDUH20-ISO features a compact design measuring 17.50 inches wide, 4.50 inches deep, and 1.75 inches high, with a weight of approximately 4.60 pounds. The 1U rack height allows installation in standard server racks without consuming excessive vertical space. The unit supports both horizontal and vertical mounting orientations and includes rack-mounting hardware for immediate installation.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1U, 17.50" (444.50 mm), 4.50" (114.30 mm), 4.60 lb (2086.52 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.50" (444.50 mm)
- Depth
- 4.50" (114.30 mm)
- Height
- 1U
- Weight
- 4.60 lb (2086.52 g)
What's in the Box
The PDUH20-ISO ships complete with all necessary components for immediate deployment in rack or wall-mount applications.
Highlights
- 14-outlet basic PDU with 2.03 kW power rating
- 12 NEMA 5-20R and 2 NEMA 5-15R outlets for mixed equipment
- 120V AC input voltage with 20A input current
- 1U rack-mount design for space-efficient installation
- Horizontal/vertical mounting with wall-mount capability
- Comprehensive protection including overload and surge protection
- Includes rack-mounting hardware and input adapter
- RoHS compliant and environmentally friendly
- 2-year limited warranty for peace of mind
- Compact dimensions: 17.5" W x 4.5" D x 1.75" H
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | PDUH20-ISO |
| Brand Name | Tripp Lite series |
| Product Model | PDUH20-ISO |
| Product Name | PDUH20-ISO 14-Outlets PDU |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Basic |
| Phase | Single Phase |
| Plug/Connector Type | NEMA L5-20P,NEMA 5-20P |
| Receptacle Type | NEMA 5-20R,NEMA 5-15R |
| Receptacle Detail | 12 x NEMA 5-20R,2 x NEMA 5-15R |
| Protection Type | Overload Protection,Circuit Protection,Surge Protection,Spike Protection,Accidental Power Shutdown,Noise |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 100 V AC,120 V AC,127 V AC |
| Power Rating (Watt) | 2.03 kW |
| Input Current | 20 A |
| Physical Characteristics | |
| Mounting Orientation | Horizontal/Vertical |
| Mount Type | Wall-mountable,Rack-mountable |
| Rack Height | 1U |
| Height | 1.75" (44.45 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 4.50" (114.30 mm) |
| Weight (Approximate) | 4.60 lb (2086.52 g) |
| Miscellaneous | |
| Package Contents | PDUH20-ISO 14-Outlets PDU NEMA 5-20P Input Adapter Rack-Mounting Hardware Owner's Manual |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the power capacity of the PDUH20-ISO?
The PDUH20-ISO has a power rating of 2.03 kW with 120V AC input voltage and 20A input current. This capacity supports distributing power to multiple connected devices while maintaining electrical safety margins.
How many outlets does this PDU have and what types are they?
This PDU features 14 total outlets: twelve NEMA 5-20R receptacles and two NEMA 5-15R receptacles. This mixed configuration accommodates equipment with different plug requirements without additional adapters.
Can this PDU be mounted in a standard server rack?
Yes, the PDUH20-ISO is designed for 1U rack mounting in standard 19-inch server racks. It includes rack-mounting hardware and supports both horizontal and vertical mounting orientations for flexible installation.
What protection features does this PDU offer?
The PDUH20-ISO includes overload protection, circuit protection, surge protection, spike protection, and noise filtering. These features help prevent accidental power shutdowns and protect connected equipment from electrical disturbances.
What is included in the package with this PDU?
The package includes the PDUH20-ISO unit, a NEMA 5-20P input adapter, rack-mounting hardware, and an owner's manual. All necessary components for installation are provided.
What warranty coverage does this product have?
The PDUH20-ISO comes with a 2-year limited warranty from Tripp Lite by Eaton. The product is also RoHS compliant and manufactured with environmentally friendly materials and processes.
What power capacity is listed for this UPS?
The listed power specification is 2.03 kW, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 120 V AC, which helps position the unit for the right load level and installation role.
