Tripp Lite by Eaton PDUMH32HVATNET 7. 4kW Single-Phase 230V ATS/Switched PDU - 16x C13 & 2x C19 Outlets - Rack-Mountable 1U/2U
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switched PDU operates with a 32A input current, matching its 230V AC input and output specifications for consistent power delivery. The automatic transfer switching function activates within 1-5 milliseconds, providing seamless failover between power sources to prevent downtime.
Network management is comprehensive, supporting HTTP, HTTPS, SNMPv1/v2/v3, Telnet, SSH, FTP, SMTP, DHCP, BOOTP, and NTP protocols for remote monitoring and control via its Ethernet interface. A digital LED display offers real-time status visibility directly on the unit.
This section brings together practical product details such as PDU Type, Plug/Connector Type, Plug/Connector Detail, Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
This PDU combines high power capacity with advanced switching and management features, making it ideal for environments where power reliability and remote oversight are non-negotiable.
Automatic Transfer Switching
Ensures continuous power by automatically switching to a secondary source within 1-5 ms if the primary fails, critical for server racks and network closets.
- 1-5 ms switchover time
- Maintains uptime during source failure
- Ideal for redundant power setups
Granular Remote Management
Offers extensive network protocols for outlet-level control, monitoring, and alerts, allowing IT staff to manage power remotely without physical access.
- Outlet-level switching and rebooting
- Real-time current monitoring
- Alerts via SNMP, SMTP, and HTTP
High-Density Outlet Layout
Provides 16 C13 and 2 C19 outlets to accommodate a mix of server, networking, and storage equipment in a single rack unit, optimizing space and reducing cable clutter.
- Supports both C13 and C19 devices
- Organized into two load banks
- Reduces need for additional PDUs
Deployment / Use Cases
The PDUMH32HVATNET is tailored for IT racks, data center cabinets, and network closets where power distribution needs to be both robust and intelligently managed. Its 7.4 kW capacity suits environments with moderate to high power demands, such as server stacks, networking gear, and storage arrays.
Typical deployments include corporate server rooms, colocation facilities, and broadcast racks where automatic transfer switching adds a layer of redundancy. The switched outlets allow for remote rebooting of locked-up equipment, reducing the need for on-site intervention and minimizing downtime.
This section brings together practical product details such as PDU Type, Plug/Connector Type, Plug/Connector Detail, Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Physical Profile

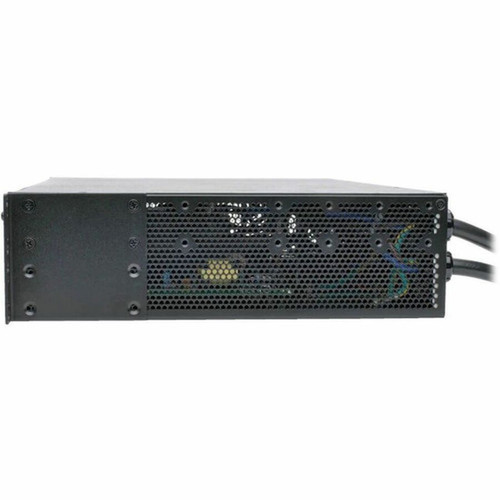

Built for standard 19-inch racks, this PDU has a compact footprint with dimensions of 17.50" wide, 12.50" deep, and 3.50" high, fitting horizontally in 1U or 2U spaces. The rack-mountable design includes mounting brackets for secure installation, and the 13.70 lb weight ensures it is manageable for typical rack deployment. The horizontal orientation facilitates easy cable access and management in crowded cabinet environments.
- Width
- 17.50" (444.50 mm)
- Depth
- 12.50" (317.50 mm)
- Height
- 1U/2U
- Weight
- 13.70 lb (6214.22 g)
What's in the Box
The package includes all necessary components for immediate installation and operation.
Highlights
- 7.4 kW single-phase power capacity at 230V AC for robust rack equipment support
- Automatic transfer switching (ATS) with 1-5 ms response for power redundancy
- 16 x IEC 60320 C13 and 2 x IEC 60320 C19 switched outlets in two load banks
- Comprehensive network management via HTTP, HTTPS, SNMP, Telnet, SSH, and FTP

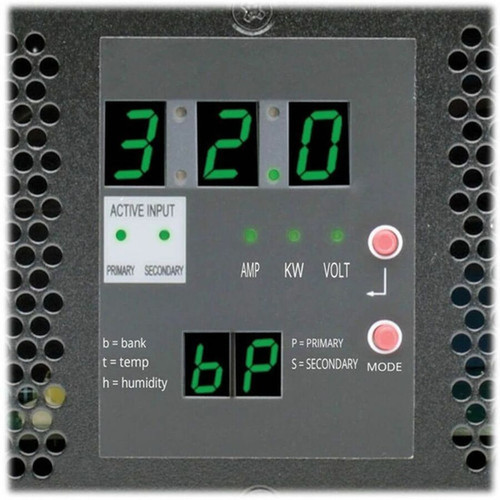

- Digital LED display provides real-time voltage, current, and status monitoring
- Rack-mountable in a 1U/2U horizontal form factor for standard 19-inch cabinets
- IEC 60309 32A Blue (2P+E) input connector ensures secure high-current connection
- Overload protection safeguards connected devices from power surges
- RoHS compliant and backed by a 2-year limited warranty
- Includes mounting brackets and cable management accessories for easy installation
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | PDUMH32HVATNET |
| Brand Name | Tripp Lite series |
| Product Series | Switched |
| Product Model | PDUMH32HVATNET |
| Product Name | PDUMH32HVATNET 7.4kW Single-Phase 230V ATS/Switched PDU |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Switched |
| Plug/Connector Type | IEC 60309 32A Blue (2P+E) |
| Plug/Connector Detail | 2 x IEC 60309 32A BLUE (2P+E) |
| Receptacle Type | IEC 60320 C13,IEC 60320 C19 |
| Receptacle Detail | 16 x IEC 60320 C13,2 x IEC 60320 C19 |
| Protection Type | Overload Protection |
| Power Description | |
| Input Voltage | 230 V AC |
| Output Voltage | 230 V AC |
| Power Rating (Watt) | 7.40 kW |
| Input Current | 32 A |
| Management | |
| Management | HTTP HTTPS PowerAlert SMTP SNMPv1 SNMPv2 SNMPv3 Telnet SSH FTP DHCP BOOTP and NTP |
| Physical Characteristics | |
| Mounting Orientation | Horizontal |
| Mount Type | Rack-mountable |
| Rack Height | 1U/2U |
| Height | 3.50" (88.90 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 12.50" (317.50 mm) |
| Weight (Approximate) | 13.70 lb (6214.22 g) |
| Miscellaneous | |
| Package Contents | PDUMH32HVATNET 7.4kW Single-Phase 230V ATS/Switched PDU Rack-mounting brackets Cord retention brackets Cable ties Owner's manual |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the power capacity of this PDU?
This PDU has a power rating of 7.40 kW (7400 watts) at 230V AC, suitable for supporting multiple servers, switches, and storage devices in a rack environment. It operates with a 32A input current to deliver this capacity consistently.
How many outlets does it have and what types?
It provides 18 total outlets: 16 are IEC 60320 C13 type, commonly used for servers and networking gear, and 2 are IEC 60320 C19 type, which support higher-power devices like some UPS units or larger servers. All outlets are switched for individual remote control.
What is automatic transfer switching (ATS) and how fast is it?
Automatic transfer switching allows the PDU to switch between two power sources if one fails, ensuring continuous operation. This unit switches within 1-5 milliseconds, minimizing downtime for critical equipment like servers in redundant power setups.
How can I manage this PDU remotely?
It supports multiple network management protocols including HTTP, HTTPS, SNMPv1/v2/v3, Telnet, SSH, and FTP. You can monitor power usage, control outlets individually, and set up alerts via its Ethernet interface, accessible through a web browser or network management software.
Is this PDU rack-mountable and what are its dimensions?
Yes, it is designed for horizontal rack mounting in standard 19-inch cabinets, occupying 1U or 2U of rack height. Its dimensions are 17.50" wide, 12.50" deep, and 3.50" high, with a weight of 13.70 lb, making it compact for typical rack deployments.
What input connector does it use and what are the voltage requirements?
It uses an IEC 60309 32A Blue (2P+E) input connector, requiring a 230V AC power source. Both input and output voltages are 230V AC, ensuring compatibility with equipment designed for this voltage in regions like Europe and parts of Asia.
What power capacity is listed for this UPS?
The listed power specification is 7.40 kW, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 230 V AC, which helps position the unit for the right load level and installation role.
