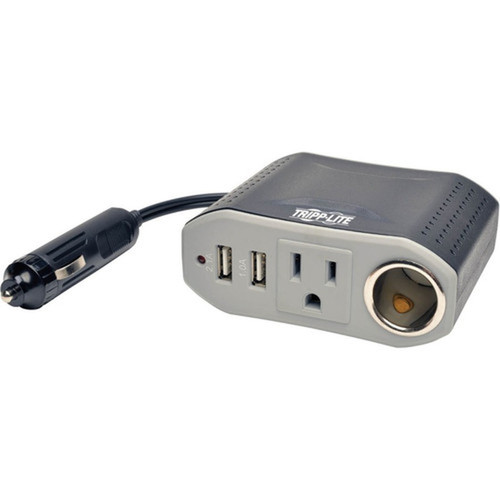

Tripp Lite by Eaton PV100USB PowerVerter Power Inverter - 100W Continuous - 200W Peak - 12V DC to 120V AC with USB
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This power inverter operates with an input voltage of 12V DC, compatible with standard vehicle electrical systems. It delivers output voltages of 120V AC at 60 Hz and 5V DC via USB, providing both standard AC power and direct USB charging capabilities. The technical design ensures efficient power conversion with minimal energy loss, supported by safety features that protect against overloads and overheating.

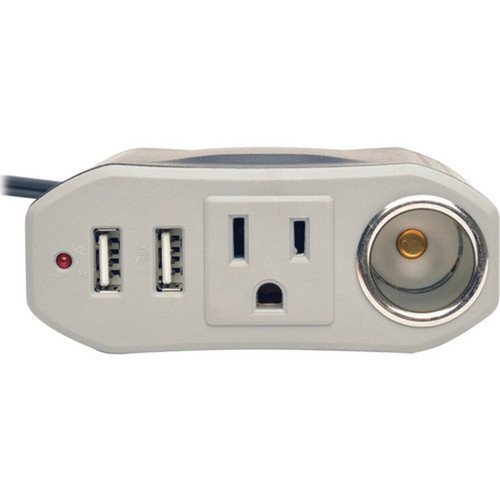

The receptacle configuration includes one NEMA 5-15R AC outlet and two USB ports, allowing simultaneous charging of multiple devices. The built-in interior cooling fan actively manages thermal conditions during extended use, enhancing reliability and longevity. Compliance with Restriction of Hazardous Substances (RoHS) standards confirms its environmentally responsible construction.
Relevant factors for this section include Plug/Connector Type, Receptacles, Input Voltage, Output Voltage. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The PV100USB stands out for its combination of portability, power capacity, and connectivity options. Its compact size and lightweight design make it easy to store in a glove compartment or carry bag, while the robust power output handles essential electronics reliably. The dual USB ports eliminate the need for separate chargers, streamlining your mobile power setup.
Multi-Device Charging
Charge up to three devices simultaneously through the AC outlet and two USB ports, maximizing convenience during travel or work on the go.
- 1 x NEMA 5-15R AC outlet
- 2 x USB ports for direct charging
Built for Durability
The durable plastic housing and integrated cooling fan ensure the inverter operates safely under load, extending its service life in various environments.
- Active cooling fan
- RoHS-compliant materials
Deployment / Use Cases

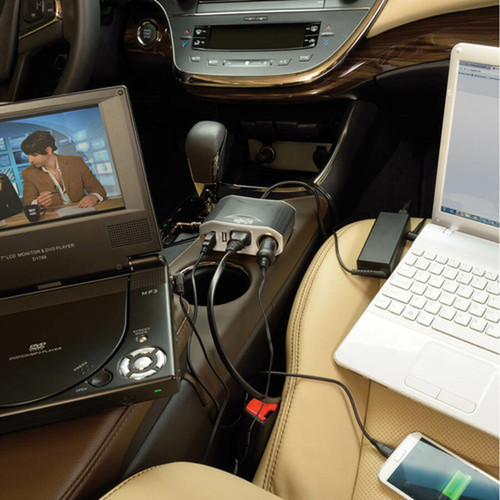

This inverter is primarily deployed in vehicles, including cars, trucks, and RVs, where it plugs directly into the cigarette lighter socket. It provides a practical solution for powering or charging devices like laptops, cameras, GPS units, and mobile phones during commutes, road trips, or remote work sessions. The portability also makes it useful for outdoor activities such as camping, tailgating, or fieldwork where access to grid power is limited.
In professional settings, the PV100USB supports mobile workstations by allowing the use of AC-powered tools or equipment in vehicles. Its compact footprint ensures it doesn't occupy excessive space, while the 100-watt continuous rating covers common low-power devices without straining the vehicle's electrical system. Always verify device power requirements to stay within the inverter's capacity for optimal performance.
Physical Profile
The PV100USB features a slim and lightweight design, measuring 3.94 inches in height, 1.61 inches in width, and 3.27 inches in depth. Weighing approximately 8.48 ounces, it is highly portable and easy to handle. The compact form factor allows for discreet placement in vehicle compartments or bags, and the durable plastic construction resists wear from frequent use. The unit's small footprint minimizes obstruction in tight spaces like cup holders or dashboard areas.
- Width
- 1.61" (40.89 mm)
- Depth
- 3.27" (83.06 mm)
- Height
- 3.94" (100.08 mm)
- Weight
- 8.48 oz (240.40 g)
What's in the Box
The package includes the PowerVerter PV100USB power inverter along with warranty information and an owner's manual. These documents provide essential guidance on setup, usage, and support, ensuring you can operate the inverter safely and effectively from the start.
Highlights
- Converts 12V DC vehicle power to 120V AC and 5V DC USB outputs
- Delivers 100 watts continuous power and 200 watts peak power
- Includes one NEMA 5-15R AC outlet and two USB ports for multi-device charging
- Plugs directly into standard vehicle cigarette lighter sockets
- Features a built-in interior cooling fan for reliable thermal management
- Compact and lightweight design for easy portability and storage
- Constructed with durable plastic housing for long-lasting use
- Compliant with Restriction of Hazardous Substances (RoHS) environmental standards
- Backed by a 1-year limited warranty for added peace of mind
- Ideal for charging electronics in cars, trucks, RVs, and outdoor settings
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | PV100USB |
| Brand Name | Tripp Lite series |
| Product Line | PowerVerter |
| Product Model | PV100USB |
| Product Name | PowerVerter PV100USB Power Inverter |
| Product Type | Power Inverter |
| Technical Information | |
| Plug/Connector Type | Cigarette Lighter Adapter |
| Receptacles | 1 x NEMA 5-15R,2 x USB |
| Power Description | |
| Input Voltage | 12 V DC |
| Output Voltage | 120 V AC,5 V DC |
| Maximum Frequency | 60 Hz |
| Peak Power Load | 200 W |
| Continuous Power Load | 100 W |
| Physical Characteristics | |
| Height | 3.94" (100.08 mm) |
| Width | 1.61" (40.89 mm) |
| Depth | 3.27" (83.06 mm) |
| Weight (Approximate) | 8.48 oz (240.40 g) |
| Miscellaneous | |
| Package Contents | PowerVerter PV100USB Power Inverter Warranty Information Owner's Manual |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 1 Year |
User Manual
FAQ
What is the continuous power rating of the Tripp Lite PV100USB power inverter?
The Tripp Lite PV100USB provides a continuous power load of 100 watts. This means it can steadily deliver up to 100 watts of power to connected devices, such as laptops or small electronics, without overheating or shutting down. It also supports peak loads up to 200 watts for short bursts, accommodating higher initial power demands from some equipment.
What input voltage does this power inverter require?
This inverter requires a 12V DC input, which is standard for most vehicle electrical systems. It plugs into a cigarette lighter socket in cars, trucks, or RVs to draw power from the vehicle's battery. Ensure your vehicle's electrical system matches this voltage to avoid compatibility issues and achieve optimal performance.
What types of output connections does the PV100USB offer?
The PV100USB offers both AC and DC outputs. It includes one NEMA 5-15R AC outlet that provides 120V AC power for standard electronics, plus two USB ports that deliver 5V DC for direct charging of USB-powered devices like smartphones and tablets. This combination allows you to charge multiple devices simultaneously without additional adapters.
Is this power inverter suitable for use in all vehicles?
Yes, the PV100USB is designed for use in any vehicle with a standard 12V DC cigarette lighter socket, including cars, trucks, SUVs, and RVs. Its compact size and plug-and-play design make it easy to install and remove as needed. Always check your vehicle's socket compatibility and avoid exceeding the inverter's power capacity to prevent electrical issues.
Does the inverter include any cooling or safety features?
Yes, the PV100USB features a built-in interior cooling fan that actively manages heat during operation, enhancing reliability and preventing overheating. It also includes protection against overloads and short circuits to safeguard both the inverter and connected devices. These features help maintain stable performance even during extended use in various environments.
What is included in the package with the PV100USB power inverter?
The package includes the PowerVerter PV100USB power inverter unit itself, along with warranty information and an owner's manual. The manual provides instructions on setup, usage tips, and safety guidelines, while the warranty details coverage for defects under normal use. No additional cables or accessories are required for basic operation with a vehicle's cigarette lighter socket.
