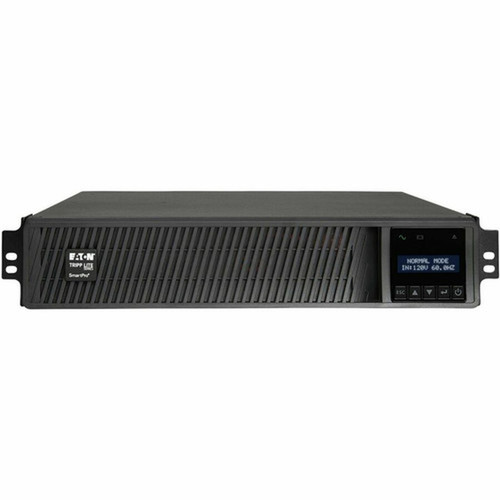

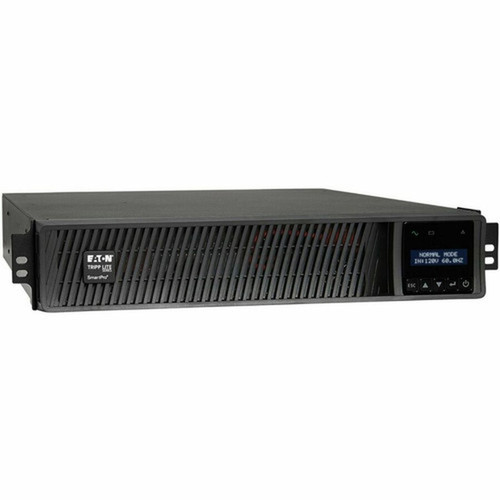

Tripp Lite by Eaton SMART3000RM2UN Tripp Lite SmartPro UPS - 3kVA/3000W Line-Interactive 2U Rack/Tower with Pre-installed WEBCARDLX - 120V AC
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This line-interactive UPS delivers 3kVA (3000VA) and 3kW of power capacity with 120V AC input and output voltage. It features a fast 5 ms transfer time to maintain continuous operation during power transitions. The unit operates with 98% efficiency and produces a pure sine wave output, ensuring compatibility with sensitive electronic equipment.
The battery system supports hot-swap replacement and provides 3.5 minutes of runtime at full load or 10 minutes at half load. Typical recharge time is 4.5 hours. The UPS includes two independently switchable output load banks for flexible power distribution management.
Relevant factors for this section include Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA). When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The SMART3000RM2UN combines high power capacity with intelligent management features in a versatile 2U form factor. The pre-installed WEBCARDLX card eliminates the need for separate network management hardware installation, providing immediate remote monitoring capabilities out of the box.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Comprehensive Power Protection, Flexible Deployment Options.
Comprehensive Power Protection
Maintains 120V nominal output during brownouts down to 83V and overvoltages up to 145V, protecting connected equipment from voltage irregularities.
- Voltage Regulation
- Surge Protection
- Frequency Stabilization
Flexible Deployment Options
The rack/tower design accommodates both data center rack mounting and standalone tower configurations, supported by included 4-post installation hardware.
- 2U Rack Mountable
- Tower Configuration
- Included Mounting Kit
Deployment / Use Cases
This UPS is ideal for protecting network infrastructure, servers, storage systems, and telecommunications equipment in small to medium business environments. The 3kVA capacity supports multiple devices simultaneously, while the 2U form factor optimizes rack space in data center deployments.
Common applications include server room power backup, network closet protection, point-of-sale system support, and medical equipment power conditioning. The multiple outlet configuration with 8 NEMA 5-15/20R and 1 NEMA L5-30R receptacles accommodates diverse equipment types and power requirements.
Server Room Protection
Provides backup power for rack-mounted servers, switches, and storage arrays during outages, with remote management through the WEBCARDLX interface.
Network Infrastructure Support
Protects routers, switches, and access points from power disturbances, ensuring continuous network availability with the hot-swappable battery design.
Physical Profile
The UPS measures 3.5" (88.90 mm) in height, 17.5" (444.50 mm) in width, and 19.5" (495.30 mm) in depth, occupying 2U of rack space. The 62.8 lb weight reflects the robust construction and internal battery capacity. The rack/tower form factor includes integrated mounting points and feet for flexible installation in either configuration.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 3.50" (88.90 mm), 17.50" (444.50 mm), 19.50" (495.30 mm), 62.80 lb (28485.60 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.50" (444.50 mm)
- Depth
- 19.50" (495.30 mm)
- Height
- 3.50" (88.90 mm)
- Weight
- 62.80 lb (28485.60 g)
What's in the Box
The package includes all necessary components for immediate deployment and management of the UPS system.
Highlights
- 3kVA/3000W line-interactive UPS with 120V AC input/output
- Pre-installed WEBCARDLX network management card for remote monitoring
- 2U rack/tower form factor with included 4-post installation kit
- Hot-swappable batteries for maintenance without downtime
- 8 NEMA 5-15/20R and 1 NEMA L5-30R outlets for flexible connectivity
- 3.5 minutes runtime at full load, 10 minutes at half load
- Interactive LCD display for status information and configuration
- SNMP, USB, and serial management interfaces
- 98% efficiency with pure sine wave output
- 3-year limited warranty from Tripp Lite by Eaton
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SMART3000RM2UN |
| Brand Name | Tripp Lite series |
| Product Series | SmartPro |
| Product Model | SMART3000RM2UN |
| Product Name | SMART3000RM2UN UPS System with Pre-installed WEBCARDLX |
| Product Type | Line-interactive UPS |
| Technical Information | |
| Plug/Connector Type | NEMA L5-30P |
| Receptacle Type | NEMA L5-30R,NEMA 5-15/20R |
| Receptacle Detail | 1 x NEMA L5-30R,8 x NEMA 5-15/20R |
| Transfer Time | 5 ms |
| Power Description | |
| Load Capacity (VA) | 3 kVA |
| Load Capacity (Watt) | 3 kW |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Management | |
| Network Management | SNMP Manageable |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| Battery Information | |
| Backup/Run Time (Full Load) | 3.50 Minute |
| Backup/Run Time (Half Load) | 10 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 4.50 Hour |
| Physical Characteristics | |
| Height | 3.50" (88.90 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 19.50" (495.30 mm) |
| Rack Height | 2U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 62.80 lb (28485.60 g) |
| Miscellaneous | |
| Package Contents | SMART3000RM2UN UPS System with Pre-installed WEBCARDLX PowerAlert Software CD USB Cable Serial Cable EPO Cable 4 Post Installation Kit Instruction Manual |
| Software Included | PowerAlert Software |
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the power capacity of this UPS?
The Tripp Lite SMART3000RM2UN provides 3kVA (3000VA) and 3kW of power capacity. This line-interactive UPS delivers 120V AC output and can protect multiple devices simultaneously, making it suitable for small to medium business server rooms and network infrastructure.
How long does the battery last during a power outage?
At full load, the UPS provides 3.5 minutes of runtime, while at half load it offers 10 minutes of backup power. The hot-swappable batteries typically recharge in 4.5 hours after use. These runtime figures are based on the specified load conditions and battery capacity.
What management interfaces are available?
This UPS includes a pre-installed WEBCARDLX network management card for SNMP monitoring, plus USB and serial interfaces for local management. The interactive LCD provides real-time status information and configuration options, allowing comprehensive control through both local and remote methods.
Can this UPS be mounted in a standard rack?
Yes, the SMART3000RM2UN is designed for 2U rack mounting and includes a 4-post installation kit. It also functions as a tower unit for standalone deployment. The dimensions are 3.5" height, 17.5" width, and 19.5" depth, fitting standard 19-inch racks.
What type of outlets does this UPS have?
The unit features 8 NEMA 5-15/20R outlets and 1 NEMA L5-30R outlet, providing flexible connectivity for various equipment types. The input connector is NEMA L5-30P. The two independently switchable output load banks allow for organized power distribution management.
What is included in the warranty?
Tripp Lite by Eaton provides a 3-year limited warranty for this UPS system. The warranty covers manufacturing defects and includes the pre-installed WEBCARDLX management card. The product is manufactured in Taiwan and comes with PowerAlert software for enhanced monitoring capabilities.
