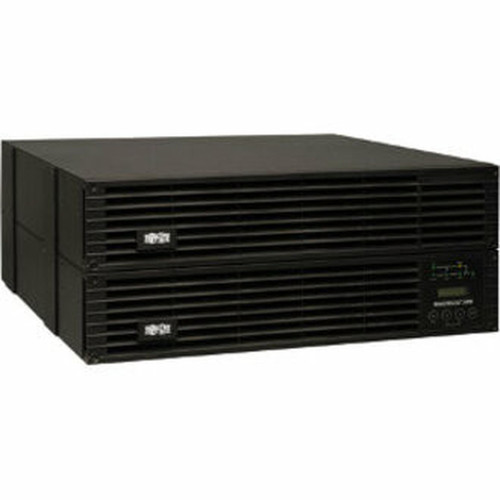

Tripp Lite by Eaton SU6000RT4UHVG SmartOnline EZ 6000 VA Double Conversion UPS - 6 kVA / 5400W - 4U Rack/Tower - 2 Min Full Load Runtime
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This SmartOnline EZ UPS employs double conversion online topology, continuously converting AC input to DC and back to AC, delivering clean, regulated power regardless of input quality. It accepts 220V AC input and provides output at 208V, 230V, or 240V AC, accommodating various voltage requirements. The unit offers 2 minutes of runtime at full 5400W load and extends to 8.5 minutes at half load.
Management capabilities include standard USB and RS232 ports for local monitoring, with options for SNMP/WEB and contact-closure cards for network integration. The high-efficiency economy mode reduces energy consumption during normal operation. Environmental compliance includes RoHS certification, and the unit carries a 2-year limited warranty.
This section brings together practical product details such as Plug/Connector Type, Receptacle Detail, Transfer Time, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Flexible Deployment, Advanced Power Management.
Flexible Deployment
Configure as a 4U rack-mounted unit or standalone tower to match your space constraints and installation preferences without compromising performance.
- 4U rack height compatibility
- Tower configuration option
- Includes rail kit for rack mounting
Advanced Power Management
PowerAlert software provides real-time monitoring, automated shutdowns, and event logging, while multiple interface options enable integration into existing management systems.
- SNMP manageable
- USB and serial connectivity
- Optional network management cards
Deployment / Use Cases
The SU6000RT4UHVG is ideal for protecting critical infrastructure in environments where power quality and availability are non-negotiable. Its 6 kVA capacity suits medium-density server racks, network operation centers, and telecommunications equipment that require clean, uninterrupted power.
Common deployments include supporting multiple servers, storage arrays, and networking gear in data closets or small data centers. The rack/tower flexibility makes it equally suitable for dedicated server rooms where rack space is optimized or for office environments where tower placement is preferred. The hardwired connection and 4 outlets accommodate permanent installations with multiple devices.
Server Room Protection
Safeguard critical servers and storage systems from power anomalies, providing enough runtime for orderly shutdowns or transition to backup generators.
Network Infrastructure Support
Ensure continuous operation of switches, routers, and firewalls that form the backbone of organizational networks, preventing connectivity loss during outages.
Physical Profile
The UPS measures 6.85" (173.99 mm) in height, 17.50" (444.50 mm) in width, and 20.70" (525.78 mm) in depth, occupying a standard 4U rack space. Its 108 lb (48987.98 g) weight reflects robust construction with internal batteries. The rack/tower form factor includes mounting hardware for both installations, and the design accommodates standard server rack dimensions for seamless integration.
- Width
- 17.50" (444.50 mm)
- Depth
- 20.70" (525.78 mm)
- Height
- 6.85" (173.99 mm)
- Weight
- 108 lb (48987.98 g)
What's in the Box
The package includes all necessary components for immediate deployment and management of the UPS system.
Highlights
- 6000 VA / 6 kVA double conversion online UPS with 5400W output
- 2-minute runtime at full load, 8.5 minutes at half load
- 4U rack/tower form factor with included rail kit
- Hot-swappable power and battery modules for zero downtime maintenance
- 220V AC input with 208V/230V/240V AC output options
- SNMP manageable with USB and serial connectivity
- Includes PowerAlert management software suite
- Maintenance bypass switch for live UPS replacement
- RoHS compliant with 2-year limited warranty
- Hardwired connection with 4 outlets
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SU6000RT4UHVG |
| Brand Name | Tripp Lite series |
| Product Line | SmartOnline |
| Product Series | EZ |
| Product Model | SU6000RT4UHVG |
| Product Name | SmartOnline EZ SU6000RT4UHVG 6000 VA Tower/Rack Mountable UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | Hardwired |
| Receptacle Detail | 4 |
| Transfer Time | 0 ns |
| Power Description | |
| Load Capacity (VA) | 6 kVA |
| Load Capacity (Watt) | 5.40 kW |
| Input Voltage | 220 V AC |
| Input Current | 31.90 A |
| Output Voltage | 240 V AC,230 V AC,208 V AC |
| Management | |
| Network Management | SNMP Manageable |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| Battery Information | |
| Backup/Run Time (Full Load) | 2 Minute |
| Backup/Run Time (Half Load) | 8.50 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 6 Hour |
| Physical Characteristics | |
| Height | 6.85" (173.99 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 20.70" (525.78 mm) |
| Rack Height | 4U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 108 lb (48987.98 g) |
| Miscellaneous | |
| Package Contents | SmartOnline EZ SU6000RT4UHVG 6000 VA Tower/Rack Mountable UPS PowerAlert Software Suite CD USB Cable Serial Cable EPO Cable Rail Kit |
| Software Included | PowerAlert Software Suite |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the power capacity of this UPS?
The Tripp Lite SmartOnline EZ SU6000RT4UHVG provides 6000 VA (6 kVA) of apparent power and 5400W of real power output. This capacity supports medium-density server racks and critical network equipment with a 0.9 power factor for efficient energy delivery.
How long does the battery last during a power outage?
At full 5400W load, the UPS provides 2 minutes of runtime, allowing for orderly system shutdowns. At half load (2700W), runtime extends to 8.5 minutes. These figures are based on standard battery performance and may vary with battery age and environmental conditions.
Can this UPS be installed in a server rack?
Yes, the unit is designed for both rack and tower deployment. It occupies 4U of rack space and includes a rail kit for secure rack mounting. The dual form factor provides flexibility for data center, server room, or office installations.
What management options are available?
Standard management includes USB and RS232 serial ports for local monitoring with included PowerAlert software. The UPS is SNMP manageable and supports optional SNMP/WEB and contact-closure cards for network integration, enabling remote monitoring and control.
Are the batteries hot-swappable?
Yes, both power and battery modules are hot-swappable, allowing replacement without shutting down connected equipment. This feature, combined with the maintenance bypass switch, enables zero-downtime maintenance and battery replacement.
What input and output voltages does this UPS support?
The UPS accepts 220V AC input and provides output at 208V, 230V, or 240V AC. This voltage flexibility accommodates various electrical systems and equipment requirements, with automatic voltage regulation maintaining stable output.
What power capacity is listed for this UPS?
The listed power specification is 6 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 220 V AC, which helps position the unit for the right load level and installation role.
